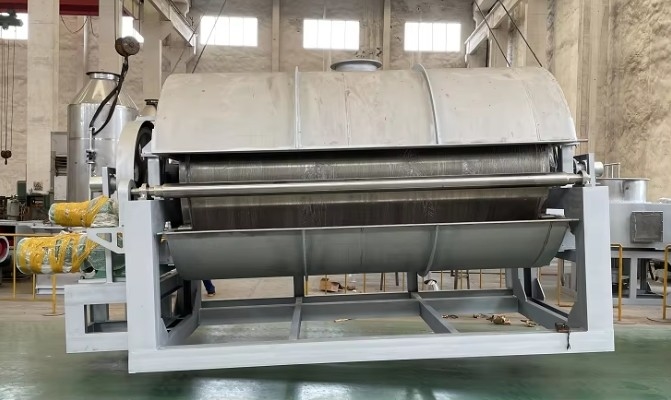

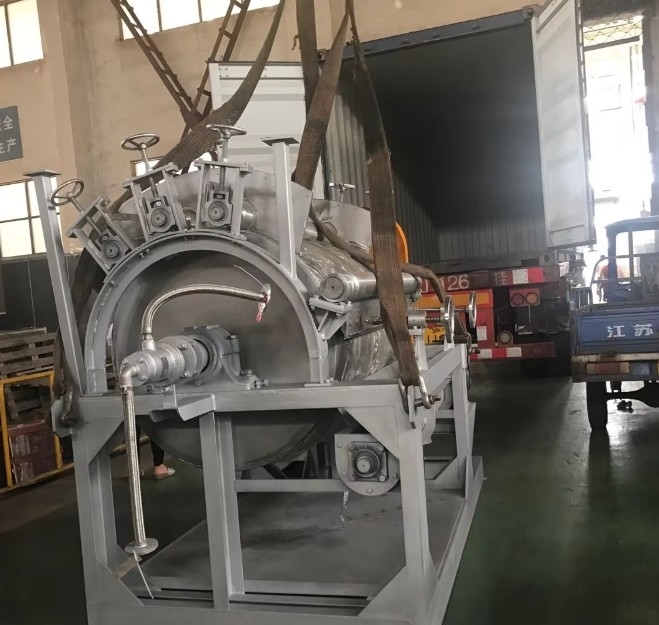

200kg/h Drum Rolling Scraper Dryer Material Dewatering

2. Supporting Frame: The hollow cylinders are mounted on a sturdy supporting frame. This frame ensures the stability and proper alignment of the drum dryer.

3. Product Feeding System: The material to be dried is fed into the drum through a product feeding system. This system can vary depending on the specific requirements of the drying process and the characteristics of the material being dried.

4. Scraper: Inside the drum, there is a scraping mechanism. This mechanism is often composed of scraping blades or paddles that are attached to the interior walls of the drum. As the drum rotates, these scrapers continuously move the material around, preventing it from sticking to the drum's surface. This movement promotes even drying and efficient heat transfer.

5. Auxiliaries: Various auxiliary components are incorporated to support the drum dryer's operation and enhance its efficiency.



These can include:
* Heating System: A heat source (like steam, hot oil, or direct flame) is used to provide the necessary thermal energy for drying the material. The heat is applied to the outer surface of the drum, and it travels through the drum's walls to reach the material inside.
* Exhaust System: An exhaust system helps remove the evaporated moisture and any volatile substances from the drying chamber.
* Control System: A control system monitors and regulates parameters such as temperature, drum speed, and airflow to ensure optimal drying conditions and prevent overheating or under-drying.
* Drive Mechanism: A motor and drive mechanism rotate the drum at the desired speed, controlling the movement of the material and the scrapers inside.
* Discharge System: Once the material is dried, it exits the drum through a discharge system, which can include chutes, conveyors, or other mechanisms.
* Safety Features: Drum dryers are equipped with safety features to prevent overheating, ensure proper ventilation, and protect against potential hazards.
Drum dryers are widely used in various industries for drying a wide range of materials, including food products, chemicals, pharmaceuticals, minerals, and more. Their design and components contribute to efficient and controlled drying processes.



Model	Drum Size mm	Heat Area m²	Capacity kg/h	Steam Consumption kg/h	Weight kg	Power kw	Dimension mm
HG-600	600*800	1.12	40-70	100-175	850	2.2	1700*800*1500
HG-700	700*1000	1.65	60-90	150-225	1210	3	2100*1000*1800
HG-800	800*1200	2.26	90-130	225-325	1700	4	2500*1100*1800
HG-1000	1000*1400	3.30	130-190	325-475	2100	5.5	2700*1300*2250
HG-1200	1200*1500	4.24	160-250	400-625	2650	7.5	2800*1500*2450
HG-1400	1400*1600	5.28	210-310	525-775	3220	11	3150*1700*2800
HG-1600	1600*1800	6.79	270-400	675-1000	4350	11	3350*1900*3150
HG-1800	1800*2000	8.48	330-500	825-1250	5100	15	3600*2050*3500
HG-1800A	1800*2500	10.60	420-630	1050-1575	6150	18.5	4100*2050*3500
