Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-543

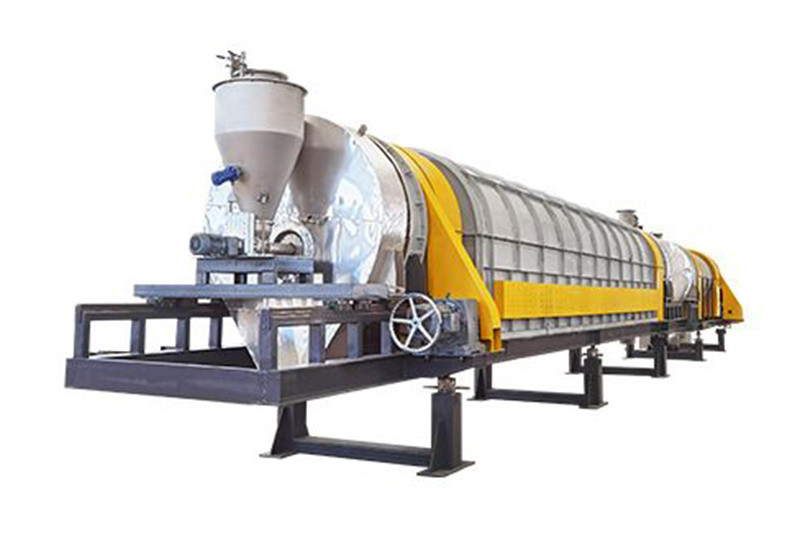

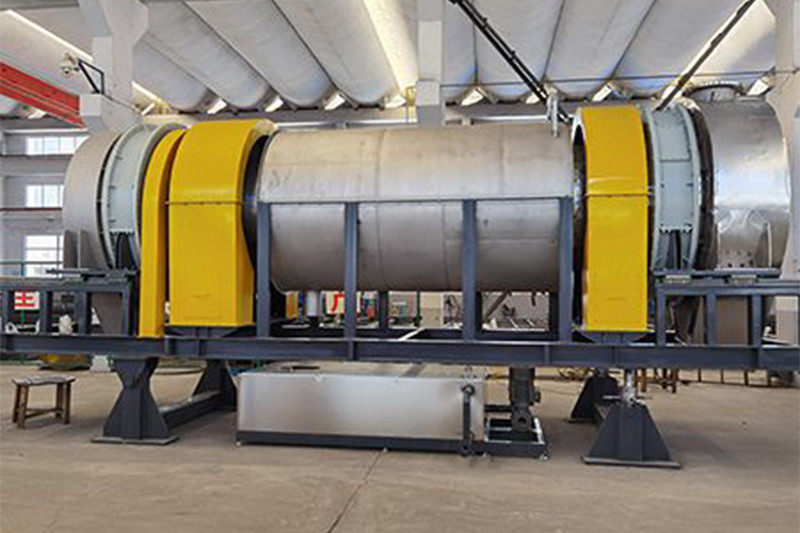

1. Lithium battery recycling calcining furnace adopts dynamic calcination method, which makes sintering more thorough and avoids undercooking and overburning as much as possible.
2. The corrosion-resistant special metal liner, combined with a precise atmosphere control system, can achieve efficient calcination and automatic temperature control.
3. PLC control, touch screen for human-computer interaction, the overall structure of the equipment is compact, simple to operate and easy to maintain.
| Furnace type: Lithium battery recycling calcining furnace | Output: 100~1500 kg/h |
| Working temperature: 650 ℃ | Heating power:330 kw |
| Processing atmosphere: nitrogen, oxygen, argon | Installed power: 370 kw |
| Processing materials: powder materials | Speed: 1~5 r/min |
| Inner tank diameter: 1300 mm | Gas flow range: 0~150 (m³/h) |
| Inner tank length: 13000 mm | Gas pressure: 0.4~0.6 Mpa |
| Applicable materials: recycling and calcination of lithium battery materials, positive electrode materials, and negative electrode materials | |
