Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-542
1. Compact structure, easy to use and easy to maintain
2. High temp resistant, with cooling system
3. Use dynamic sintering mode, greatly improve thermal efficiency
4. Excellent air tightness and pressure resistance
5. High temp control accuracy
6. PLC control, using a touch screen for human-computer interaction

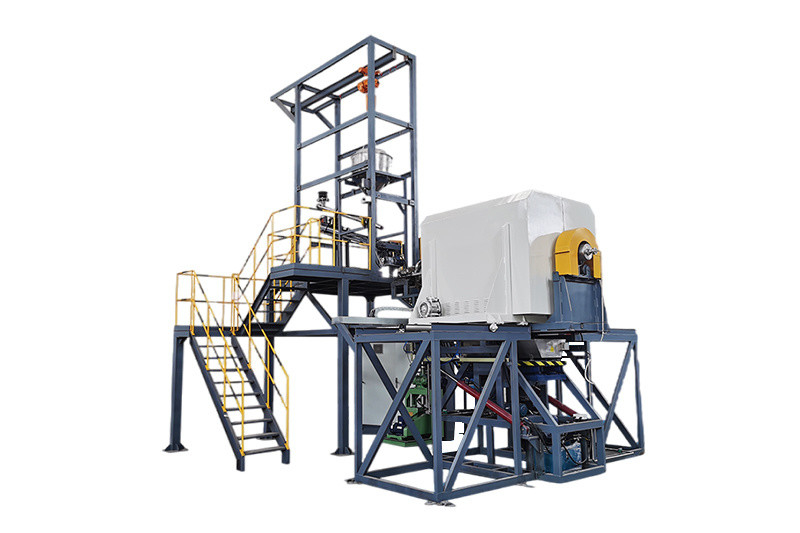

| Kiln type:Vacuum atmosphere rotary kiln | Output:100/200 L |
| Operating temperature:1050 ℃ | Heating power:102/158 kW |
| Processing atmosphere:N₂,Ar,H₂,NH₃ | Installed power:115/186 kw |
| Inner tank diameter:φ800 mm | Rotating speed:0.3～10 r/min |
| Inner tank length:1300/1600 mm | Gas flow range:0~20(m³/h) |
| Applicable materials:Lithium positive and negative material,Magnetic material,Nanomaterial and other powder materials | |
