Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-519

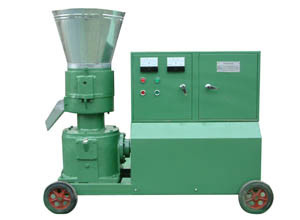

Biomass small pellet mill is a kind of special equipment which takes sawdust, palm, peanut shell and other crops as raw materials and compressed them into pellets. The pellets produced by this kind of equipment have big density, high heat value, combustion resistance. Due to its small volume, simple operation, it can be used for making pellets at home.
Characters of biomass small pellet mill
1. Scientific and reasonable structure and design, high production and low energy consumption.
2. It can adapt to different raw materials and the finished pellets have high hardness and smooth surface.
3. Simple operation and maintaining, safety and reliable performance
4. The machine was founded integrally with beautiful surface, solid structure and long service life
1. Electric motor-driven biomass small pellet mill
Technical Parameters:
| Type | Power | Capacity | Dimension(mm) | NG/GW (kg) | Note | |
| ZLSP200B | 3-phases/7.5kw | 200-300 | 1000x430x950 | 200/230 | With Motor | |
| ZLSP200B | 200-300 | 900x430x950 | Without Motor | |||
| ZLSP230B | 3-phases/11kw | 300-400 | 1140x470x970 | 290/320 | With Motor | |
| ZLSP230B | 300-400 | 980x470x870 | Without Motor | |||
| ZLSP260B | 3-phases/15kw | 400-600 | 1200x500x1070 | 330/360 | With Motor | |
| ZLSP260B | 400-600 | 1120x490x1070 | Without Motor | |||
| ZLSP300B | 3-phases/22kw | 700-800 | 1270x520x1070 | 410/450 | With Motor | |
| ZLSP300B | 700-800 | 1170x520x1070 | Without Motor | |||
| ZLSP360 | 3-phases/22kw | 1270x520x1070 | 470/500 | With Motor | ||
| ZLSP360 | 1270x520x1070 | Without Motor | ||||
| ZLSP400 | 3-phases/30kw | 900-1100 | 1470x600x1150 | 550/585 | With Motor | |
| ZLSP400 | 900-1100 | 1470x600x1150 | Without Motor | |||
2. CE series biomass small pellet mill machine
Technical Parameters
| Type | Power | Capacity | Dimension(mm) | NG/GW(kg) | Note |
| GC-9PK200 | 3-phases 7.5kW | 200-300 | 1000x430x950 | 200/230 | With Motor |
| GC-9PK200 | 200-300 | 900x430x950 | Without Motor | ||
| GC-9PK300 | 3phases 22kW | 700-800 | 1270x520x1070 | 410/450 | With Motor |
| GC-9PK300 | 700-800 | 1170x520x1070 | Without Motor |
3. Diesel Engine-driven biomass small pellet mill machine
Technical Parameters:
| Type | Power | Capacity | Dimension(mm) | NG/GW(kg) | Note |
| ZLSP200A | 15HP | 200-300 | 1000×460×900 | 210/240 | With Diesel Engine |
| ZLSP200A | 200-300 | 1000×460×900 | Without Diesel Engine | ||
| ZLSP230A | 22HP | 300-400 | 1180x560x1020 | 280/310 | With Diesel Engine |
| ZLSP230A | 300-400 | 1090x520x820 | Without Diesel Engine |
4. Biomass mallest pellet mill
All models above can process both animal feedstuff and wood pellet from sawdust. If you only use the machine to produce feedstuff, there are four smaller models for your reference as follows:
| Type | Power | Capacity | Dimension(mm) | NG/GW(kg) | Note |
| ZLSP120 | 3kw/3-phases or 2.2 kw/single phase | 75-100 | 710x390x910 | 80/100 | With Motor |
| ZLSP120 | 75-100 | 670x390x910 | Without Motor | ||
| ZLSP120A | 8HP Diesel Engine | 75-100 | 730x320x670 | Without Diesel Engine | |
| ZLSP120A | 75-100 | 900x440x730 | 120/140 | With Diesel Engine | |
| ZLSP150 | 4kw/3-phases | 90-120 | 750x350x650 | 95/115 | With Motor |
| ZLSP150 | 90-120 | 700×350×650 | Without Motor |
