Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-516

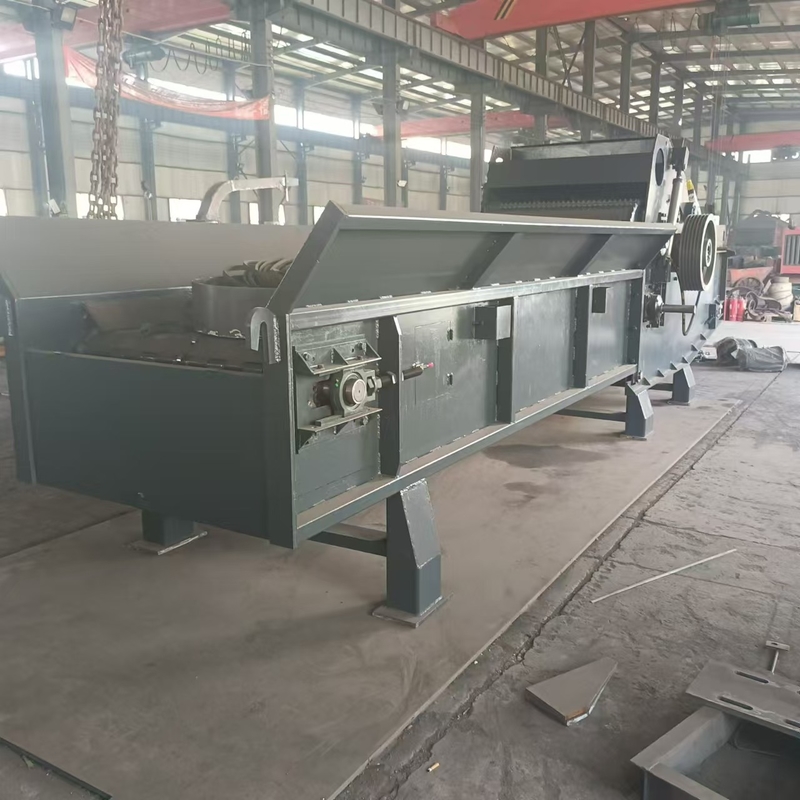

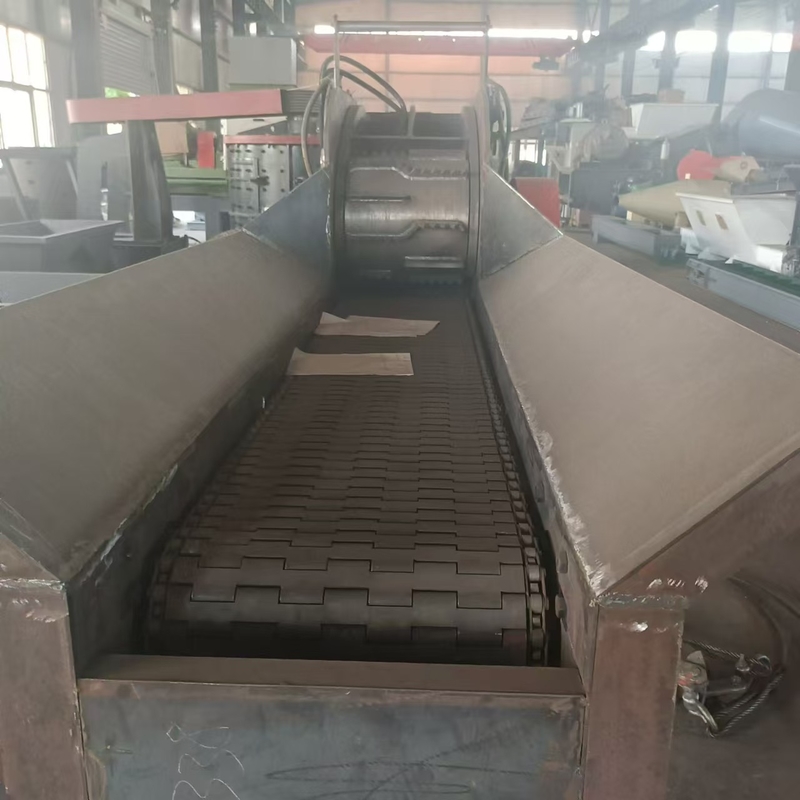

Crushing machine is a kind of breaking machine and it is used to breaking some larger biomass raw materials into small size of materials.
A multi-functional crusher is suitable for crushing agriculture crops, forest crops, straw, etc. It is a medium-large, multi-functional new type crusher, which can crush various straws such as corn, wheat, rice, cotton, soybean, etc. It can crush baled straw directly without removing the sieve. A crushing section suitable for biomass briquetting and granulation. It can be equipped with different bottom sieves according to the needs and raw materials.
Technical Details:
| Type | HX826 | HX828 |
|---|---|---|
| Knife roll diameter(mm) | 650 | 800 |
| Fly-cutter quantity(piece) | 8 | 8 |
| Feeding port size | 1500×1500 | 1600×1500 |
| Crushed materials length | 30-50 | 30-50 |
| Production capacity(t/h) | 15-20 | 15-30 |
| Weight(t) | 9.8 | 11.2 |
| Main motor power(kw) | 75×2 | 110 |
| Knife roll rotating speed(rpm) | 590 | 590 |
| Boundary dimension(mm) | 3400×2500×3300 | 4000×2500×3300 |
