Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-503

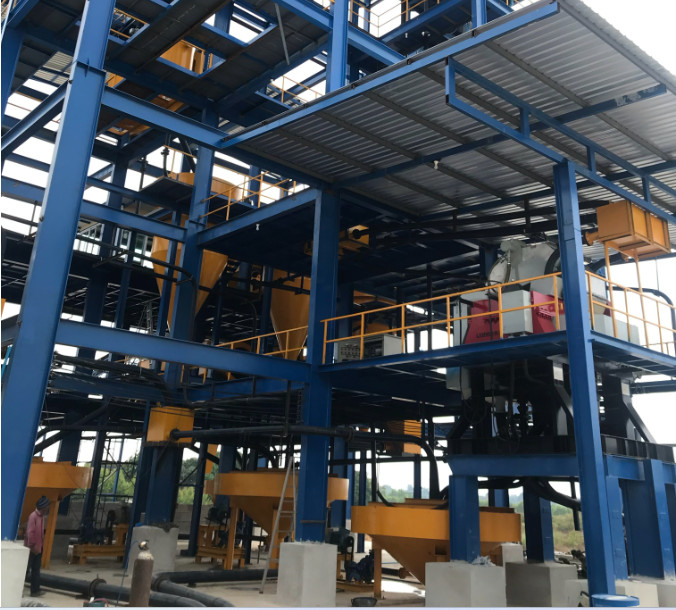

1 Application field
1. Updating Ferrous Metals: Martite, Hematite, Siderite, Chromite, Ilmenite, Manganese, Etc.
2. Separating Non-Ferrous Metals: Wolframite and Quartz, Pyrrhotite and Cassiterite, Wolframite and Cassiterite, Limonite Purifying, Scheelite, Wolframite and Garnet, Etc.
3. Recovering Rare Earth: Tantalum and Niobium, Lepidomelane, Monazite, Etc.
4. Brightening Non Metals: Quartz, Feldspar And Kaolin for Ceramics, Sillimanite, Cassiterite, Andalusite, Kyanite for Refractory, and Separating Impurities From Hornblende, Mica, Tourmaline, Garnet, Etc,
2 Technical features

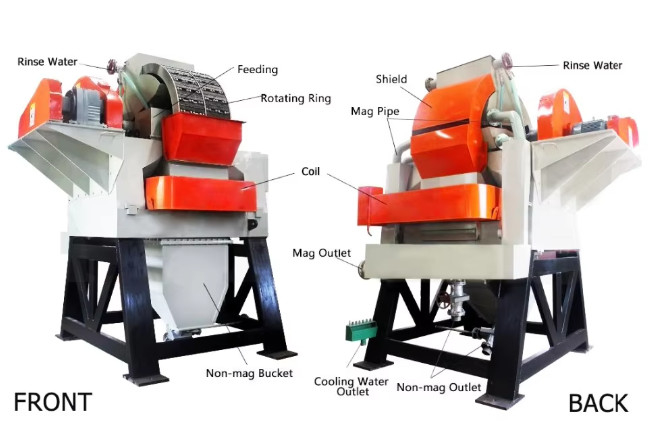

1. The oil-water cooling vertical ring high gradient magnetic separator has an advanced cooling system. The coil is fully sealed and with forced oil-cooling external circulation. The principle of oil-water heat exchange is adopted, and the heat generated by the coil is quickly taken away by the flush water, so that the coil temperature rise is less than 25 °C, and the magnetic field thermal decay is minimal.
2. Both ends of the coil are wrapped with iron shields, which improves the magnetic energy utilization rate, and increases the magnetic field strength in the separation area by more than 8%, and the background magnetic field is above 1.4 T.
3. The coil housing is fully sealed, rainproof, dustproof and corrosion resistant, ensuring that the equipment can work in a variety of harsh environments.
4. Using the flushing water to cool the transformer oil, which eliminates the need for additional cooling water, saves the energy, protects the environment and saves water resources.
5. The magnetic medium is a rod medium structure with different cross-sections, adopting a four-point restraint mechanism, having large magnetic field gradient, high field strength and long service life.
6. With advanced fault diagnosis system and remote control system, realizing intelligent operation control of equipment.
7. Optional pneumatic-water flushing and pulsation device can be equipped according to the characteristics of different materials, featuring high flushing efficiency, good separation effect and low water consumption.
3 Technical data
|
Model
Part |
DLS-50 | DLS-75 | DLS-100 | DLS-125 | DLS-150 | DLS-175 | DLS-200 | DLS-250 |
|
Ring diameter (mm) |
500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2500 |
| Particles size mm (-200 mesh) |
-1.0 (30-100) |
-1.0 (30-100) |
-1.3 (30~100) |
-1.3 (30~100) |
-1.3 (30~100) |
-1.3 (30~100) |
-1.3 (30~100) |
-1.3 (30~100) |
|
Slurry density (%) |
10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 | 10~40 |
|
Slurry throughput (m3/h) |
0.5~1.0 | 1.0~2.0 | 12.5~20 | 20~50 | 50~100 | 75~150 | 100~200 | 180~450 |
|
Handling capacity (t/h) |
0.05~0.25 | 0.1~0.5 | 4~7 | 10~18 | 20~30 | 30~50 | 50~80 | 80~150 |
| Rated back ground Field intensity (T) | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 | 0~1.1 |
| Energizing current (A) | 0~1200 | 0~850 | 0~650 | 0~850 | 0~950 | 0~1200 | 0~1200 | 0~1400 |
| Energizing voltage (V) | 0~8.3 | 0~13 | 0~26.5 | 0~23 | 0~28 | 0~31 | 0~35 | 0~45 |
| Energizing power (KW) | 0~10 | 0~11 | 0~17 | 0~19 | 0~27 | 0~37 | 0~43 | 0~63 |
| Ring motor power (KW) | 0.37 | 0.55 | 1.5 | 2.2 | 4 | 4 | 5.5 | 11 |
| Vibration motor power (KW) | 0.55 | 0.75 | 2.2 | 2.2 | 4 | 4 | 7.5 | 11 |
| Water supply pressure (MPa) | 0.1~0.2 | 0.1~0.2 | 0.2~0.4 | 0.15~0.3 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 |
| Water consumption (m3/h) | 0.75~1.5 | 5~8 | 10~20 | 30~45 | 60~90 | 80~120 | 100~150 | 200~300 |
| Cooling water (m3/h) | 1.5~2 | 1.5~2 | 2~2.5 | 2.5~3 | 3~4 | 4~5 | 5~6 | 6~7 |
| Main frame weight (t) | 1.5 | 3 | 6 | 14 | 20 | 32 | 48 | 105 |
|
Overall dimension (mm) |
1900*1580*1320 | 2000*1360*1680 | 2700*2200*2560 | 3045*2320*2640 | 3400*3060*3150 | 3900*3400*3800 | 4290*3610*4320 | 5800*5000*5400 |
The above-mentioned dried minerals is metallic minerals, and the handling capacity of non-metallic minerals is half of metallic minerals.More details, please contact us directly.
