High Gradient Magnetic Separator For Weak Magnetic Ore And Non-magnetic Ore

TLGP plate type high gradient magnetic separator is a new equipment invented by ourself.The total design and research combine with physical -mechanical, hydrodynamics and magnetism, the equipment has ultra-high magnetic intensity which can achieve 15000Gs. This equipment can achieve the high standards of removing iron in following industries which the price is one tenth of vertical ring and pulsating high gradient magnetic separator, also the cost performance is higher than it.It radically solve the worldwide technical problem-easy to block up and take material out seriously which is a revolutionary breakthrough in the field of high gradient magnetic separator, also the performance is in the lead.

TLGP plate type high gradient magnetic separator is mainly applicable in separating weak magnetic ore which size is lower than 5mm and removing iron of non-magnetic ore, such as mica power, quartz, feldspar, nepline,, fluorite, sillimanite, spodumene, kaoline, manganese, weak magnetite, pyrrhotite, calcined ore, ilmenite, hematite, limonite, siderite, chromite, wolframite, columbite-tantalite, red mud, etc. Also can be used for removing iron for coal, non-magnetic ore and building material.

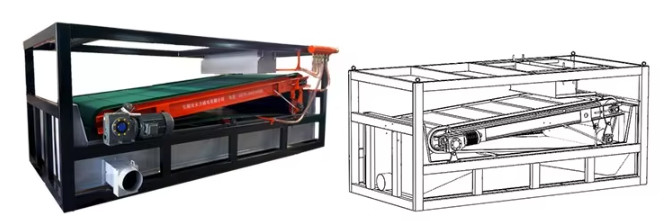

TLGP plate type high gradient magnetic separator consists of frame, plate type magnetic system, feed mixing system, water system, iron unloading system and regulatory system. When in working, the material flow and unloading system is in a reverse counterflow. According to physical structure principle, the non-magnetic material flows to discharging port so as to achieve complete unloading purpose by washing. The magnetic material is attracted by strong magnet for long distance, wide area and multiply-frequency, and be taken to tapping hole in reverse running by unloading system, then to achieve complete unloading purpose by washing.

Non-metallic Mining Processing Lines.pdf

TLGP plate type high gradient magnetic separator adopts advanced computer simulation design and pole-shaped arrangement structure which can effectively protect the working range and working capacity.
Magnetic material all adopts NdFeB rare earth to form strong magnetic core. The purity is high, the amount is large, and the magnetism is strong which can achieve 15000Gs. It is a revolutionary breakthrough in the field of high gradient magnetic separator, also the performance is in the lead. The whole machine adopts optimized design which can protect oxidation and the magnetic system is fully sealed. The magnetism of strong magnetic core consumes no more than 5% within ten years and does not affect normal use.

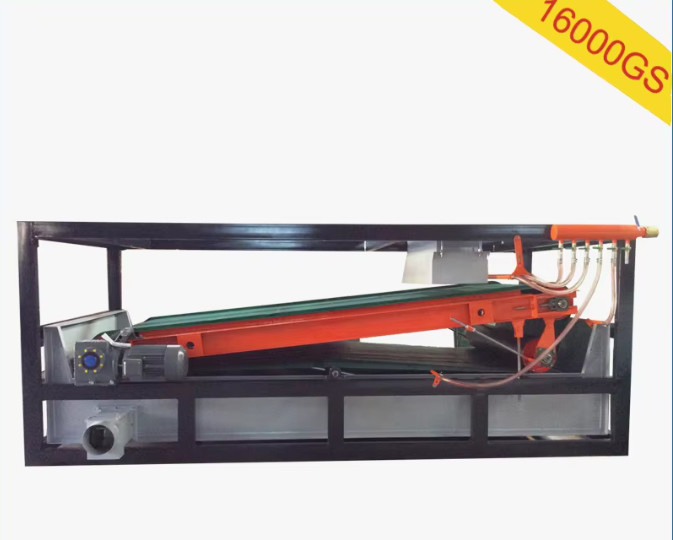

Driving part adopts endless speed motor with excellent performance, fully automatic continuous operation and unloading of iron, saving manpower, operating reliably without failure. The feeding system uses motor agitation structure which make the material in magnetic separation zone well-distributed also slurry concentration meet the processing requirements to make the separation effect more effective.
The whole water system uses single water inlet, each valve controls water point. It is convenient for customers to operate with water equipments, each valve can open and adjust water consumption according to actual needs.
The area material passed and touched adopts stainless steel and non-magnetic material which can avoid the second pollution of the material. If necessary, some important parts can do wear-resistant treatment.
The whole structure has two forms-open or fully sealed structure according to the field conditions also can suitable to different requirements.
