Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-500

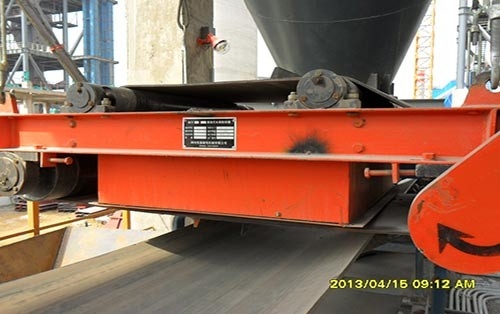

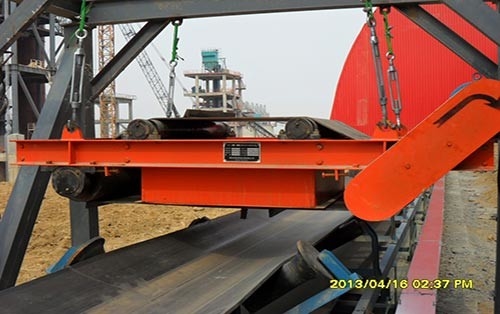

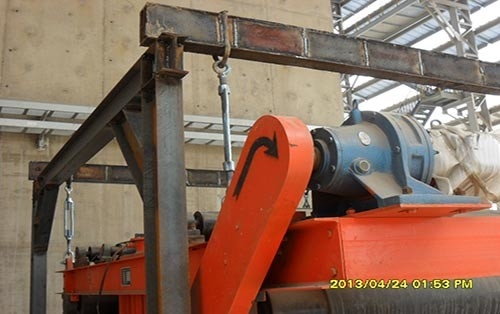

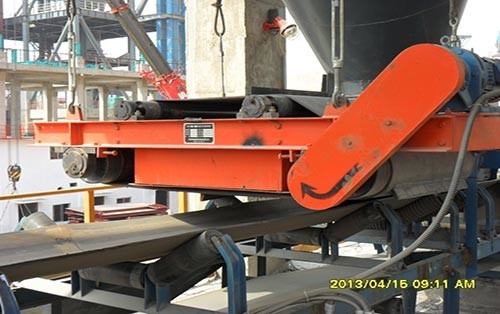

Permanent Magnet Self-Unloading Iron Ore Remover Iron Cleaning Iron used on belt conveyor Recycling Drum Roller Separator With Permanent Magnet permanent separating coal dressing equipment is designed for long term operating shift provided with self-discharge function and semi-sphere shaped magnetic field. Installed with continuous operating trump iron discharging conveyor which helps to throw the attracted magnetic material into the iron collection tray. It is suitable for removing the magnetic iron particles from the thicker bed of the material and material under bigger granularity such as ores, coals, hard cokes, limestone and etc.
| Model | Belt width (mm) | Erection height (mm) | Mass (kg) | Driven power (kw) | |
| RCYD-6 | 650 | 200 | 1270 580 |
2.2/ | |
| RCYD-8 | 800 | 250 | 1800 1340 |
2.2/ | |
| RCYD-10 | 1000 | 300 | 2500 2380 |
2.2/ | |
| RCYD-12 | 1200 | 350 | 4000 3910 |
4/ | |
| RCYD-14 | 1400 | 400 | 5800 5670 |
4/ | |
| RCYD-16 | 1600 | 450 | 7500 6820 |
4/ | |
| RCYD-18 | 1800 | 50 | 8000 | 5.5 | |
| RCYD-20 | 2000 | 550 | 10000 | 5.5 |
Others:
| Product name | Magnetic separator |
| Material | Carbon steel ,304;316L |
| Design pressure | 0.6mpa 1.0mpa 2.0mpa |
| Using | Mining industry |
| Gasket material | Silicone/EPDM/Viton/PTFE |
| Width and length | different size |
| Connection type | Tri clamp;Union; Flange |
| We accept customized or OEM filter housings | |
