Name: Mineral Separating Copper Ore Processing Plant
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-497
Price: Negotiable USD
Availability: InStock

Home > products > Mineral Processing Plant >

Mineral Separating Copper Ore Processing Plant

Copper Ore Processing Plant

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-497

Request A Quote

Mineral Separating Copper Ore Processing Plant

Product Details

Name:

Mineral Separating Copper Ore Processing Plant

Application:

Ore Mining

Capacity:

50-150t/h

Color:

Customize

Condition:

New

Payment & Shipping Terms

Minimum Order Quantity

Price

56200-76100

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

T/T

Supply Ability

270 sets/month

Four Roller Crusher For Pellet plant

Get Best Price

A Process for Reducing Rocks and Concentrating Heavy Minerals

Get Best Price

Zirconium Silicate Mining Process and Grinding Into Powder

Get Best Price

The Ultrafine Grinding Process of Zirconium Silicate

Get Best Price

86-371-56611369

Contact Now

Product Description

Introduction

If copper ore wants to be fully utilized, it must be processed by flotation. Flotation separation is an important copper ore beneficiation process in the current mineral beneficiation market. Only by determining the nature of the ore can we customize a suitable copper ore processing plant and equipment.

Copper ore beneficiation process is based on the physical and chemical properties of different minerals in copper ore. After the ore is crushed and ground, gravity separation, flotation, magnetic separation, electric separation and other ore beneficiation processes are used. Separate the useful minerals from the gangue minerals, and keep various paragenetic (associated) useful minerals separated from each other as much as possible. The process of removing or reducing harmful impurities to obtain raw materials for smelting or other industries.

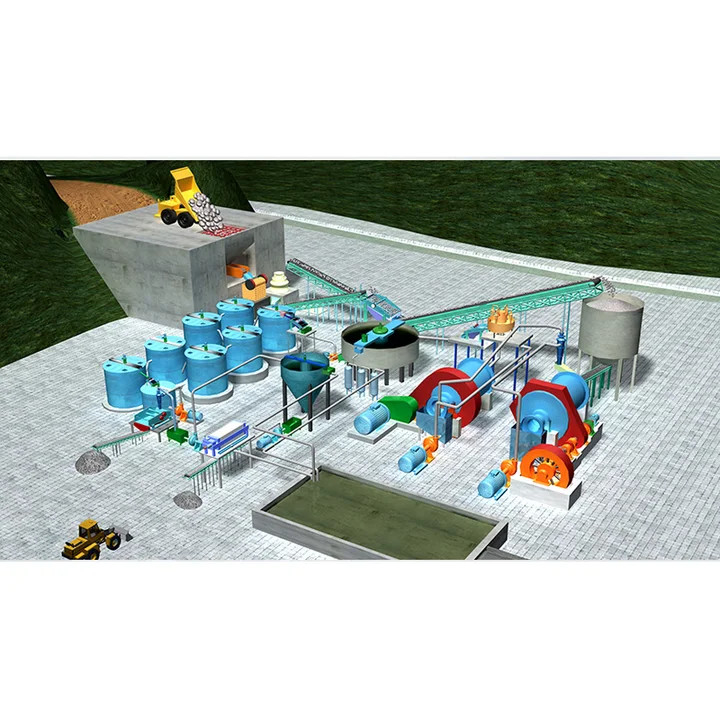

COPPER ORE FLOW CHART

A single sulfide ore is usually treated by flotation process	using crushing-grinding-classification-flotation-concentration process to select a single copper sulfide ore as copper concentrate
Copper ore beneficiation process The principle of priority flotation process is	crushing and screening→grinding and classification→priority flotation of copper concentrate→activation flotation of other concentrates→concentration and dehydration
Copper ore beneficiation process The principle of mixed flotation process	grinding and classification → mixed concentrate obtained by mixed flotation → concentrate separation and rough concentration → concentration and dehydration
The copper ore positive flotation process	crushing and screening, grinding and grading, roughing, selection, sweeping, concentration and dehydration

Preparation process before separation

Including copper ore crushing, screening, grinding, grading and other processes. The purpose of this process is to separate useful
minerals from gangue mineral monomers, and to dissociate various useful minerals from each other.

1. Crushing process
The copper ore that needs to be processed must first go through the crushing process. The vibrating feeder is fed through the silo, and the vibrating feeder is evenly sent to the jaw crusher for primary crushing, and the large raw ore is broken into small pieces of ore. After the coarse crushed copper ore is screened, it is sent to the cone crusher by the belt conveyor for
intermediate crushing and fine crushing, and the ore is broken into smaller ore particles.

2. Grinding process
The copper ore processed into granules is screened by a vibrating sieve and sent to a ball mill for grinding and crushing. Here also need to use an auxiliary equipment – classifier. It can classify and screen copper ore and release copper ore powder that meets the requirements.

3. Screening and classification

According to the size of the sieve surface, the material is divided into different particle size grades, which is often used to process materials with coarser particle size. According to the different settling speeds of particles in the medium (usually water), the materials are divided into different equal-fall grades, called classification, which is used for materials with smaller particle sizes. Screening and grading are to separate the materials with suitable particle size during the crushing process, or to divide the materials into different particle size grades and select them separately.

4. Ore washing process:

Ore washing is required to prevent the mud in the mud-containing mineral raw materials from clogging the
crushing and screening equipment. If the raw materials contain soluble useful or harmful components, they should also be washed. Washing can be done as well as in screening and grading equipment.
