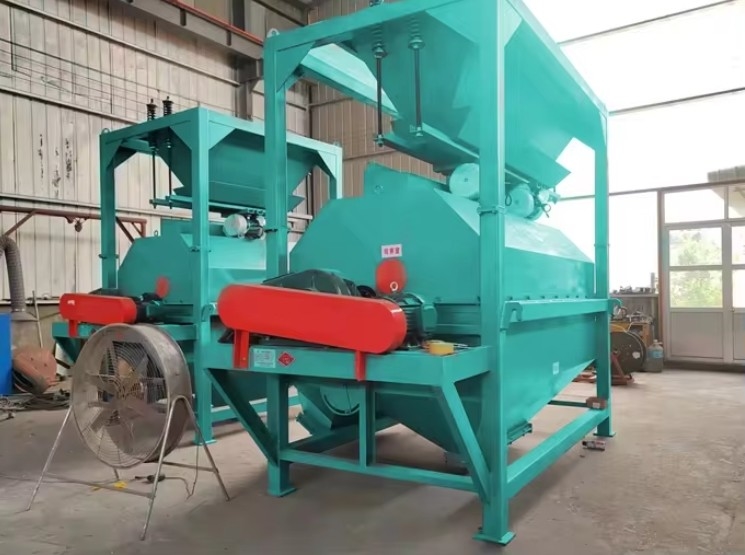

Name: Dry Drum Magnetic Separator For Mining Industry Or Iron Removing
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-495
Price: Negotiable USD
Availability: InStock

Home > products > Mineral Processing Plant >

Dry Drum Magnetic Separator For Mining Industry Or Iron Removing

Dry Drum Magnetic Separator

Iron Removing Magnetic Separator

Mining Industry Magnetic Separator

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-495

Request A Quote

Dry Drum Magnetic Separator For Mining Industry Or Iron Removing

Product Details

Name:

Dry Drum Magnetic Separator

Application:

Iron Ore Mining

Capacity:

50-150t/h

Color:

Customize

Condition:

New

Payment & Shipping Terms

Minimum Order Quantity

Price

56200-76100

Packaging Details

negociated

Delivery Time

20-40 days

Payment Terms

T/T

Supply Ability

270 sets/month

Four Roller Crusher For Pellet plant

Get Best Price

A Process for Reducing Rocks and Concentrating Heavy Minerals

Get Best Price

Zirconium Silicate Mining Process and Grinding Into Powder

Get Best Price

The Ultrafine Grinding Process of Zirconium Silicate

Get Best Price

86-371-56611369

Contact Now

Product Description

Dry magnetic separator is a magnetic mineral separation machine for sorting dry magnetic minerals. It is mainly used to separate large, coarse-grained strong magnetic ores and fine-grained weak magnetic ores in the air. The requirement for the material is that the particles can move freely and form an independent free state, otherwise the magnetic separation effect will be affected, and even the separation cannot be performed.

Working Principle

After the strong magnetic minerals are pre-discharged from the ore feeding cylinder, the ore is evenly discharged onto the ore feeding belt, and then transported by the belt to the magnetic field gap under the disc. On the tines, as the disc rotates, it is brought to both sides of the belt, where the magnetic field strength drops sharply, so under the action of gravity and centrifugal force, the material falls into the grooves of the magnetic products on both sides. Both sides of the belt (usually concentrated); non-magnetic product is conveyed by the belt to the tailings end, and discharged into the non-magnetic product tank (usually tailings).

Product Advantage

1.The magnetic system of the dry-type magnetic separator is made of high-quality ferrite material or compounded with rare earth magnet steel. The average magnetic induction intensity of the cylinder surface is 100-600 mT.

2. Various forms of magnetic separation, large processing capacity. 3. According to the needs of users, it can provide various types of magnetic separation, such as downstream, semi-countercurrent and countercurrent, with large processing capacity, convenient operation and easy maintenance. 4. High sorting accuracy and low energy consumption 5. The rapid magnetic flipping and magnetic agitation of magnetic minerals in the magnetic separator realizes the efficient separation of magnetic minerals and non-(weak) magnetic minerals. The mineral loss rate is small, the separation accuracy is high, and the power consumption is only that of the electromagnetic strong magnetic separator 20%.

Technical Details

Model	Cylinder Size (mm)	Cylinder Speed(r/min)	Capacity (t/h)	Power (kw)	Feed size(mm)	Magnetic Strength(GS)	Weight (t)
CTL 7524	φ750×2400	40	50-80	5.5	≤15	4000	3860
CTL 9024	φ900×2400	35	60-90	5.5	≤15	4000	4570
CTL 9026	φ900×2600	35	70-100	5.5	≤15	4000	4850
CTL 1024	φ1050×2400	30	70-100	7.5	≤15	4000	4670
CTL 1026	φ1050×2600	30	80-110	7.5	≤15	4000	5790
CTL 1030	φ1050×3000	30	100-150	11	≤15	4000	7245

Applicable materials

Suitable for dry 4000separation of magnetite, pyrrhotite, roasted ore, ilmenite and other materials, and also used for iron removal of coal, non-metallic ores, building materials and other materials.

Equipment composition

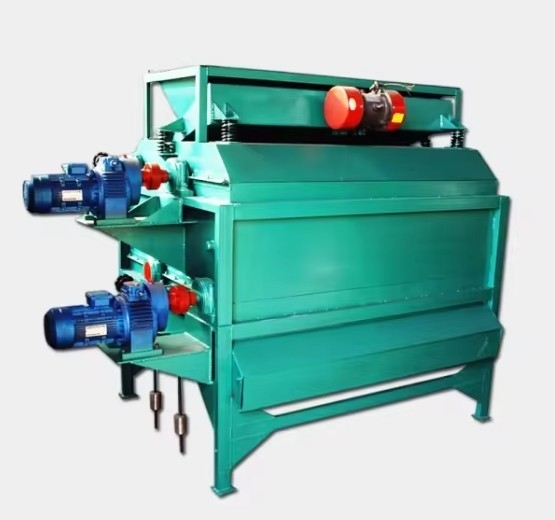

The equipment structure of the dry magnetic separator is mainly composed of rollers (there are two kinds of single cylinder and
double cylinder), magnetic system, selection box, feeder and transmission device.
