Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-476

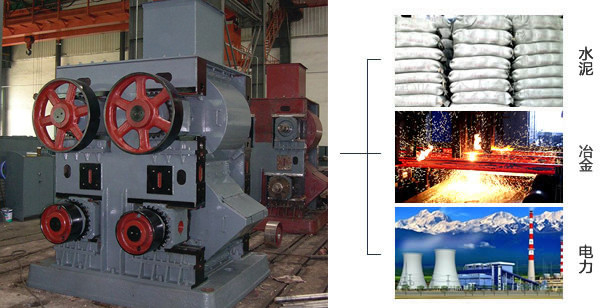

Series 4PG four roller crusher is mainly used for the crushing of medium-hard mines and rocks in cement, chemical, electric power, metallurgy, building materials, refractories and other industrial sectors, such as the secondary crushing and fine crushing of limestone, slag, coke, coal and other materials.

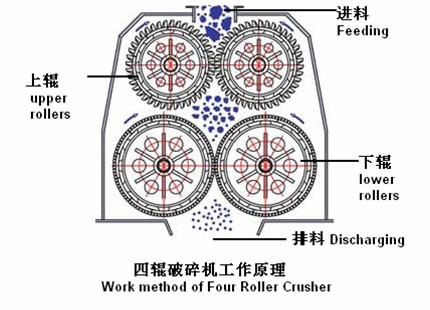

Roller crusher is mainly made up of roller wheels, roller support bearings, clamping and regulation devices and drive devices.
| Type | Model No. |
Dimensions of roller (Diameter×Length mm) |
Discharging size (mm) |
Max. feeding size (mm) |
Capacity (t/h) |
Motor | Dimensions (mm) |
Weight (kg) |
|
|
Power (kw) |
Voltage (v) |
||||||||
| Four smooth roller crusher | 4PG-705 | 750x500 | 0-12 | 85 | 20-60 | 11+24/30 | 380 | 2760x3590x2650 | 19200 |
| 4PG-907 | 900x700 | 0-12 | 100 | 30-70 | 15+24/30 | 9000x4200x3200 | 27200 | ||
| 4PG-T907 | 900x700 | 0-12 | 100 | 30-70 | 30+15/22 | 4200x3200x3200 | 26000 | ||
| 4PG-Y1210 | 1200x1000 | 0-12 | 100 | 40-80 | 40+55/75 | 9610x5600x4240 | 67000 | ||
| Type | Model No. |
Feed size (≤mm) |
Discharge size (≤mm) |
Processing capacity (t/h) |
Electric motor |
Weight (kg) |
Outline dimensions (L×W×H mm) |
||
| A | B | ||||||||
| Four tooth roller crusher | 070608 | 300 | 8 | 50 | Y250M-6 | Y280S-6 | 10160 | 3700×1450×1730 | 3700×3100×1730 |
| N=37kw | N=45kw | ||||||||
| 080709 | 70 | Y250M-6 | Y280S-6 | 13890 | 3760×1550×1730 | 3760×3200×1900 | |||
| N=37kw | N=45kw | ||||||||
| 090810 | 90 | Y280S-6 | Y280M-6 | 15680 | 3900×1760×2130 | 3900×5500×2130 | |||
| N=45kw | N=55kw | ||||||||
| 090910 | 120 | Y280M-6 | Y315S-6 | 19000 | 4176×1938×2140 | 4176×3049×2140 | |||
| N=55kw | N=75kw | ||||||||
| 100811 | 140 | Y280M-6 | Y315S-6 | 21000 | 4614×1824×2340 | 4614×3934×2340 | |||
| N=55kw | N=75kw | ||||||||
| 100911 | 170 | Y315S-6 | Y315M-6 | 25320 | 4952×1924×2340 | 4952×4194×2340 | |||
| N=75kw | N=90kw | ||||||||
| 101111 | 200 | Y315M-6 | Y315L1-6 | 25960 | 5152×2200×2360 | 5152×4540×2360 | |||
| N=90kw | N=110kw | ||||||||
| 101311 | 250 | Y315L1-6 | Y315L2-6 | 27800 | 5552×2400×2360 | 5552×4740×2360 | |||
| N=110kw | N=132kw | ||||||||
| 101411 | 300 | Y315L2-6 | Y355M-6 | 31680 | 4900×3226×2421 | 4900×4960×2421 | |||
| N=132kw | N=160kw | ||||||||
| 101611 | 350 | Y355M-6 | Y355M-6 | 34680 | 4900×2621×2570 | 4900×4660×2570 | |||
| N=160kw | N=185kw | ||||||||
| 101812 | 450 | Y355M-6 | Y355L-6 | 36860 | 5150×2814×2760 | 5150×4760×2760 | |||
| N=185kw | N=220kw | ||||||||
| 101912 | 500 | Y355L-6 | Y355L-6 | 38200 | 6550×3100×2760 | 5550×5624×2760 | |||
| N=220kw | N=250kw | ||||||||
| 102212 | 600 | Y355L-6 | Y4002-6 | 41200 | 5150×3400×2660 | 5150×4200×2660 | |||
| N=250kw | N=280kw | ||||||||
| 102512 | 700 | Y4002-6 | Y4003-6 | 46780 | 5150×4000×2760 | 5550×6769×2560 | |||
| N=280kw | N=315kw | ||||||||
| 102812 | 800 | Y4003-6 | Y4004-6 | 52860 | 5150×2500×2560 | 5150×4200×2560 | |||
| N=315kw | N=355kw | ||||||||
| 113214 | 1000 | Y4005-6 | Y4501-6 | 55160 | 5650×3000×3080 | 5650×8600×3800 | |||
