Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-456

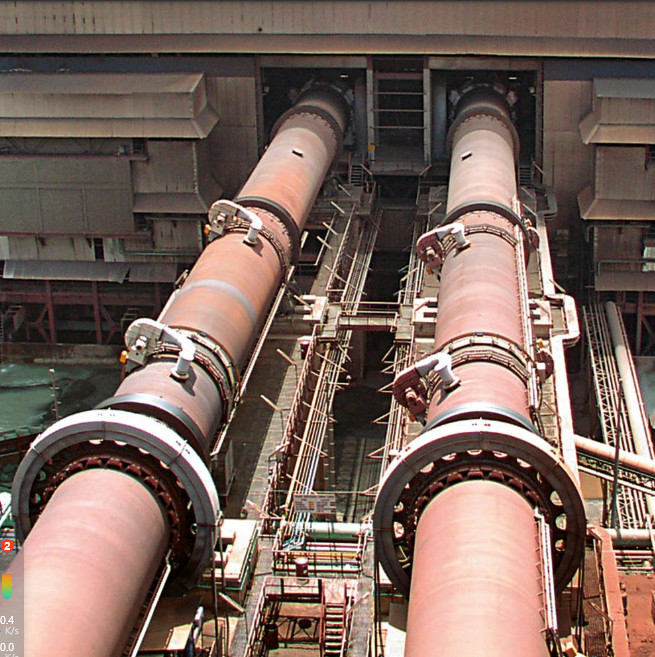

Rotary kilns are used in the mineral industry for processing of various minerals such as nickel, iron, zinc, vanadium, limestone, expanded clay etc. The rotary kilns are designed for reliable operation in the different processes dealing with high throughputs and high temperatures. thyssenkrupp Industrial Solutions’ rotary kilns reliably fulfil the client’s requirements and are capable of intermittent mechanical and process overloads during normal operation
Professional Rotary Kiln Manufacture.pdf
Different sealing systems for kiln feed end and discharge end are available for most economic operating conditions, in order to avoid emissions and false air intake. thyssenkrupp Industrial Solutions offers standardised kiln type series (up to 6.2 x 135 m) as well as individually designed minerals kilns with special equipment for various applications and requirements in the minerals industries, in order to ensure best results.

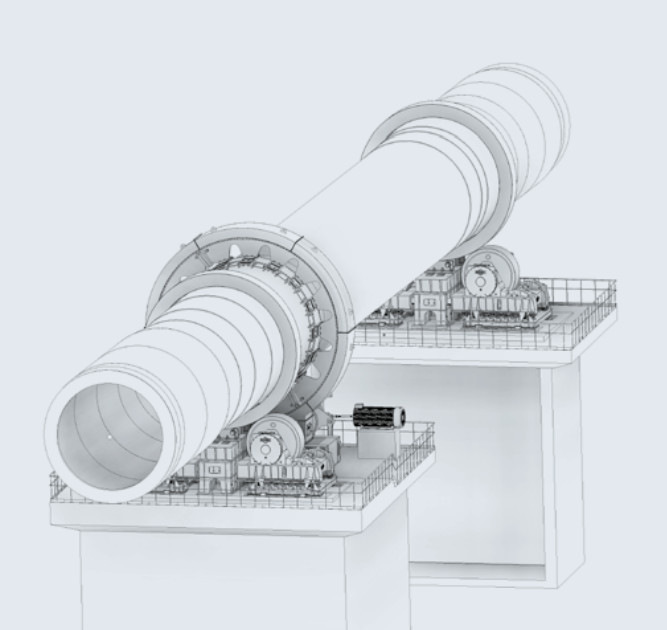

The rotary kilns are driven with a girth gear pinion drive either as single or double pinion version. To countervail the up-/ downhill movement forces of the inclined kiln, each kiln is equipped with a hydraulic thruster ensuring uniform wear of tyres and rollers with regular enforced kiln movements. In combination with a rotating screen, shell fans, kiln internals, dam rings and scoop feeder the rotary kilns can be individually upgraded for various applications and demands, thereby achieving the best solution for our clients.
Hengyang has performed many different types of chain system installations including: conventional systems and the new energy efficient shell liner chain systems. We also have the capabilities to design, fabricate, and install feed spirals. We have developed many installation techniques to ensure fast, quality installations separating us from our competition.
