Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-431

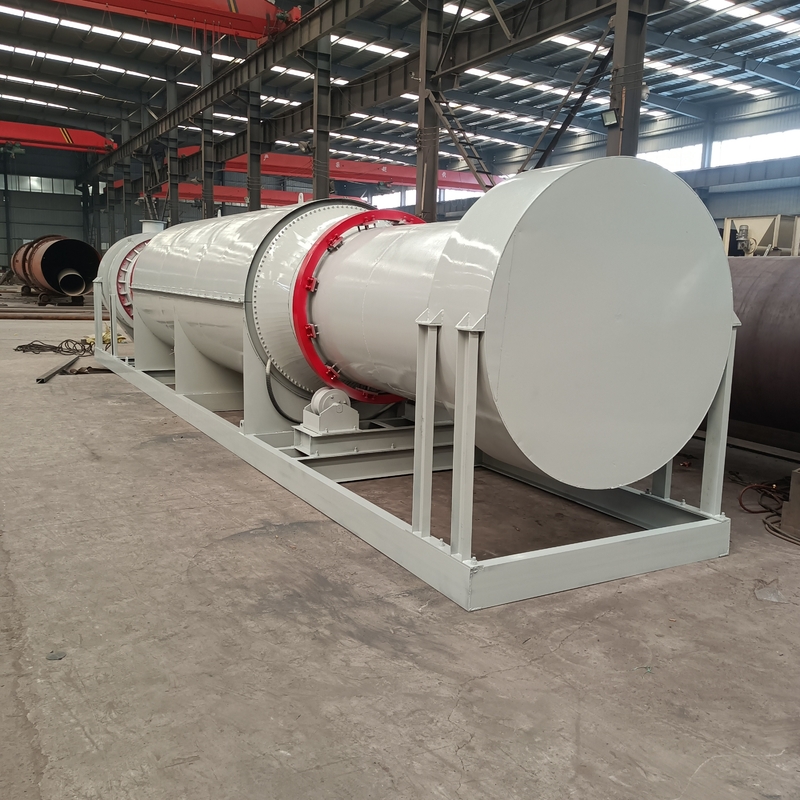

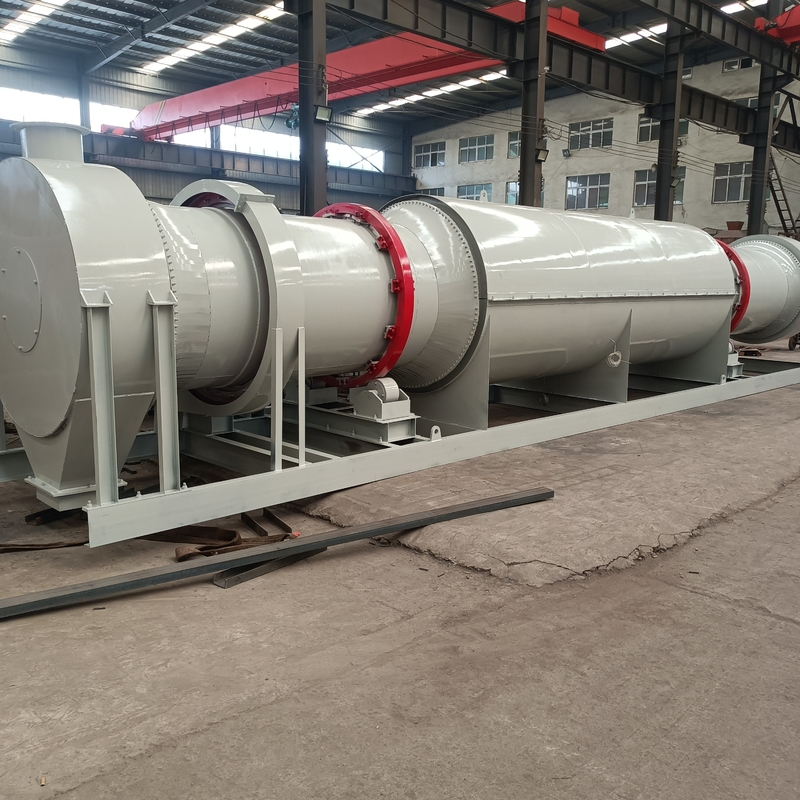

The electric heating rotary kiln, also known as electric rotary kiln, is rotary kiln equipment that uses resistance material as an electric heating element for heating. Electric heating is generally used in indirect heating rotary kilns. The electric rotary kiln is important equipment for roasting metal oxides or chemical products in the non-ferrous metallurgy and chemical industries.
Calcination and drying of positive and negative electrode materials
Rare earth materials
Chemical catalytic materials
Magnetic materials
Powder metallurgy materials
Nonferrous metal materials
Kaolin non-metallic mineral materials
High-temperature reaction
Heat treatment
Carbonization
The rotary tube of electric rotary kiln is fabricated by the nickel based alloys, which working temperature is up to 1200℃; different drum diameter and length can be fabricated according to the target materials handling capacity, multi independent heating zones will be designed according to the production requirement; the speed of rotary drum applies variable speed electric motor, easy to control the rotating speed;The horizontal drum can be tilted by hydraulic for materials movement control and easy discharging; Temperature controller applies high accurate PID intelligent thermal controller, electric heaters are superior quality Silicon Carbide(SiC) heating element, features durable service life and easy maintenance.
