Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-396
Gravita provides Battery Hydro Separation System which is an automatic unit for breaking the batteries and segregating the Lead Ore, Lead Paste and Polypropylene chips in a simultaneous operation.

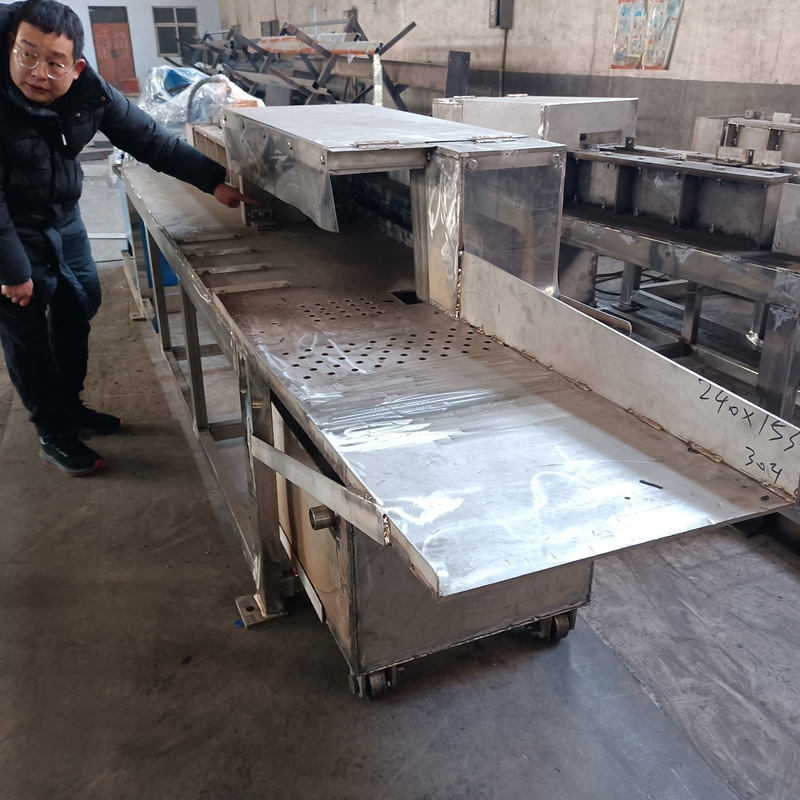

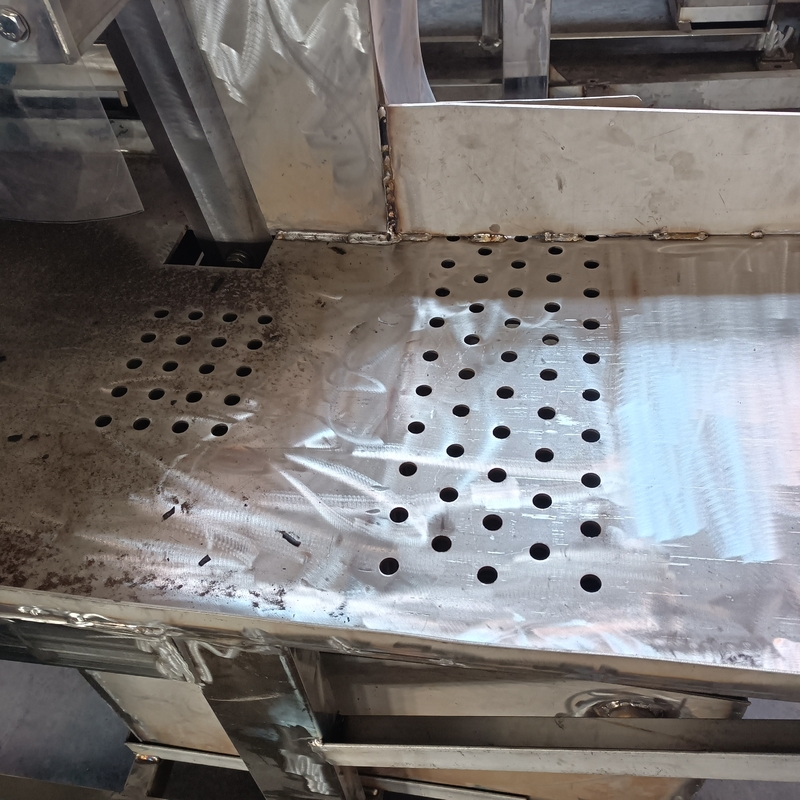

The Lead acid battery / Drained Batteries are being placed on the Belt Conveyor which carries them to the battery crushing unit which is the first / initial stage of the system. Here, batteries break / crush into small pieces by the impact of the rotating Hammers. Then after crushed / raw material moves through the vibrating screen for further washing and segregating of Lead paste.
Then the recycled water goes to the acid neutralization section which to be treated with line and get neutralized for reuse. Remaining crushed material which normally contains grid / terminal and polypropylene chips deliver in hydro separation tank for further separation of Plastics from Lead ore / grid.
| S. No | Item | Specification |
| 1 | Production Capacity | 3-10 t/hr (Customization available) |
| 2 | Built-up Material | AISI-316 & IS:2062-E250 BR |
| 3 | Power Consumption | 260 Kw (for 5MTPH) |
| 4 | Water Consumption | 600 LPH |
| 5 | Water Recycling Rate | 96% |
| 6 | Lime Solution | 1:10 |
| Battery Breaker | ||
| 7 | Material | AISI-316 (chrome casted) |
| 8 | No of Hammers | 16 |
| 9 | Motor Rating | 75 kW |
| Manpower Required | ||
| 10 | Supervisor | 1 |
| 11 | Skilled and Unskilled Labour | 3 |
| Recovery From input | ||
| 12 | Lead Recovery | 70-75% |
| 13 | PP Recovery | 10% |
| 14 | Acidic Water | 15-20% |
