Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-380

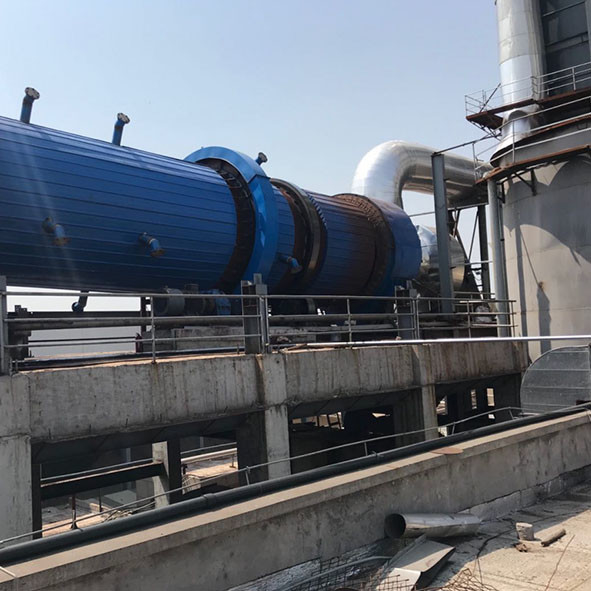

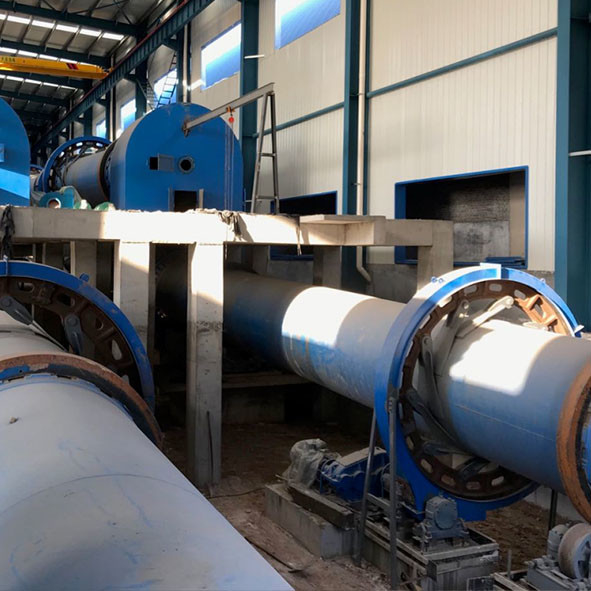

Lithium Production Line
The production line for roasting and acidizing lithium ore with lepidolite, spodumene and other raw materials configured by our company has excellent product performance, stable production condition and easy operation, which has received positive recognition from users. The kiln adopts wireless temperature monitoring system and remote intelligent variable speed kiln condition control system, which is convenient for production personnel to adjust kiln condition in real time. The raw material crystal conversion rate is high, the acidification is complete, and the lithium leaching rate and lithium recovery rate are 15% higher than the traditional process.
| Final Products | Annual Output(t/a) | Spodumene Amount(t/h) | Main Equipment Model | ||
|---|---|---|---|---|---|
| Conversion Process | Acidification Process | Ball Mill | |||
| Lithium LiCO3 | 5000 | 5-6 | Roasting Kiln:φ2.8×50m; Cooler: φ2.6×40m | Acidification Kiln:φ2.8×50m; Cooler: φ2.4×35m | φ1.83×6.4m |
| Lithium LiCO3 | 10000 | 10-12 | Roasting Kiln:φ3.5×60m; Cooler: φ2.4×40m | Acidification Kiln:φ3.5×50m; Cooler: φ2.4×40m | φ2.4×8m |
| Final Product | Annual Output of Lithium(t/a) | Amount of Mixed Raw Materials (about 60% of Lepidolite) (t/h) | Main Equipment Model | ||
|---|---|---|---|---|---|
| Rotary Kiln | Cooler | Ball Mill | |||
| Lithium LiCO3 | 3000 | 15-18 | φ3.5×60m | φ2.5×23m | φ1.83×6.4m |
| Lithium LiCO3 | 5000 | 25-30 | φ4.2×72m | φ3×45m | φ3.2×13m |
1. Main equipment: Acidification mixer, rotary kiln, rotary cooler, Acidification kiln, raw ball mill, bag type dust collector and fan.
2. Rotary kiln diameter: 1.5-4.5m.
3. Calcination temperature: ~1250℃
4. Acidification temperature: ~350℃
5. The fuel of calcination:Natural gas, coal dust and coal gas
