Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-377

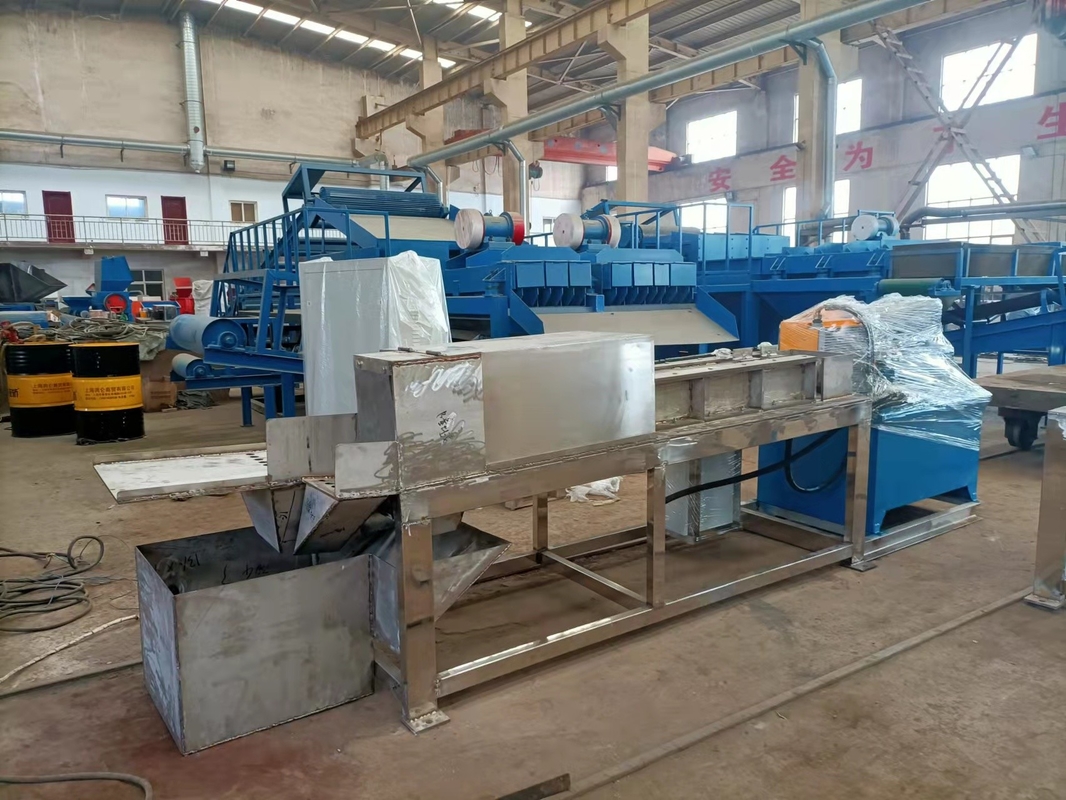

Lead Battery Breaking And Separation Production Line
It is used Lead-acid scrap batteries are received through containers/trucks will be unloaded at the battery recycling plant, from where batteries will be processed through a breaking and separation system.
These scrap batteries are crushed in the hammer and the output is passed through a sieve conveyor to clean off and separate the Lead Oxide powder. After this Lead and plastics are separated in the sink and float tanks. The PP and PE are also separated inside the last tank. The entire system is a closed-loop, and the water is re-circulated after passing through a filter press. An acid neutralization system is also used to treat the water before re-circulation.
| S. No | Item | Specification |
| 1 | Production Capacity | 3-10 t/hr (Customization available) |
| 2 | Built-up Material | AISI-316 & IS:2062-E250 BR |
| 3 | Power Consumption | 260 Kw (for 5MTPH) |
| 4 | Water Consumption | 600 LPH |
| 5 | Water Recycling Rate | 96% |
| 6 | Lime Solution | 1:10 |

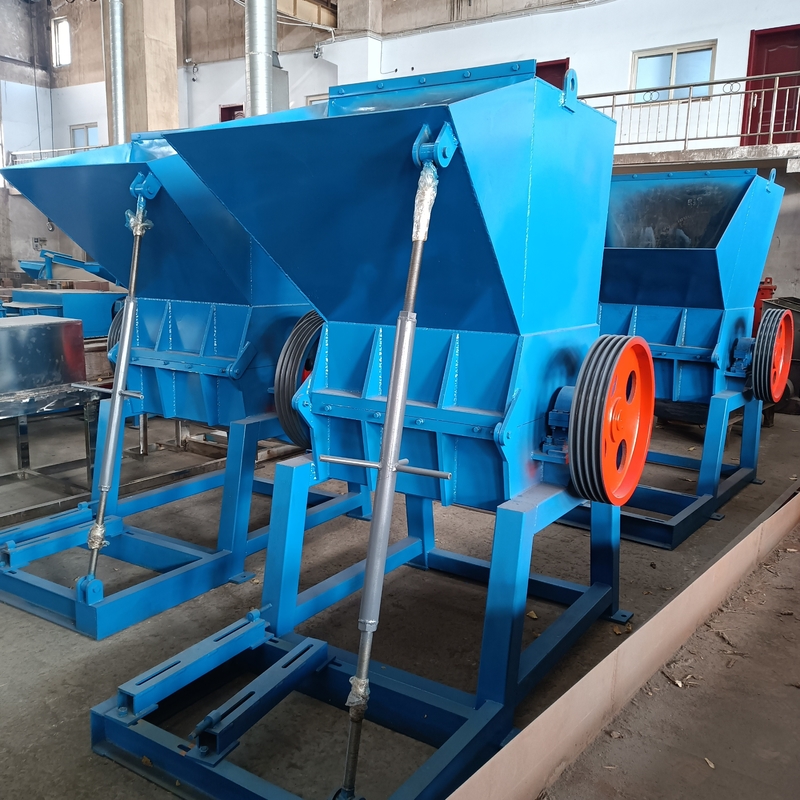

| Battery Breaker | ||
| 7 | Material | AISI-316 (chrome casted) |
| 8 | No of Hammers | 16 |
| 9 | Motor Rating | 75 kW |
| Manpower Required | ||
| 10 | Supervisor | 1 |
| 11 | Skilled and Unskilled Labour | 3 |
| Recovery From input | ||
| 12 | Lead Recovery | 70-75% |
| 13 | PP Recovery | 10% |
| 14 | Acidic Water | 15-20% |
