Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-376

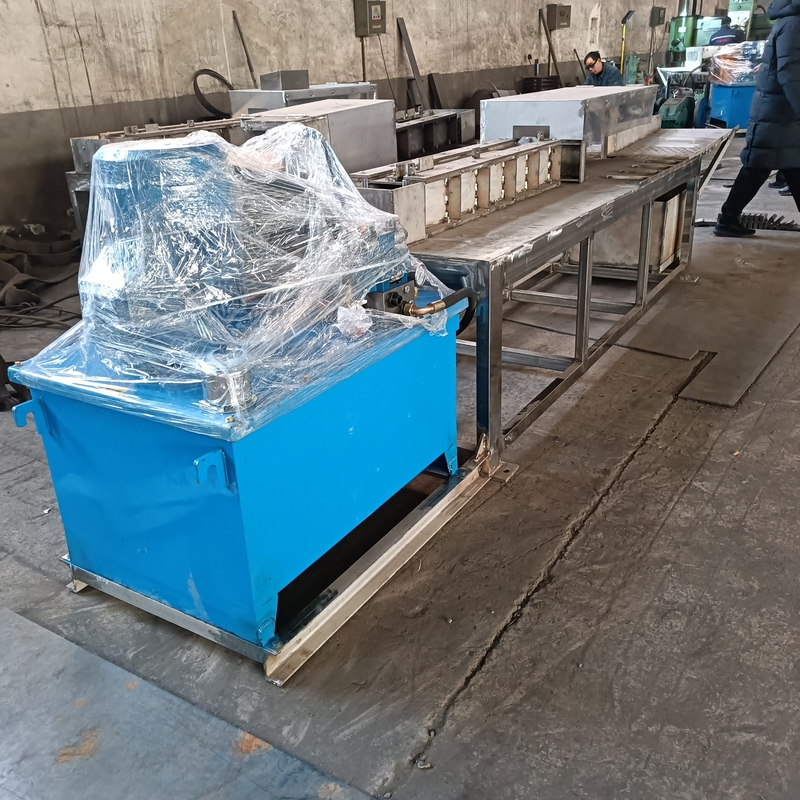

Waste Battery Recycling Processing Plant
Spent lead acid battery breaking and separation system is fully automatic environmentally friendly battery scrap recycling system. Through the system, batteries are crushed into pieces by breaking machine, and then the lead paste will be washed in the vibrating screen into the lead paste sedimentation boat. The oversized part from the vibrating screen then enters hydraulic separator. Through hydraulic separation, PP, heavy plastic and lead grids are separated from each other. Lead paste in the sedimentation boat will be stirred into suspended state in lead slurry mixing tank and then pumped to pre-desulfurization device when it achieves an appropriate status. After desulfurization, it will be sent to filter press to remove water and be stored in pit.
| S. No | Item | Specification |
| 1 | Production Capacity | 3-10 t/hr (Customization available) |
| 2 | Built-up Material | AISI-316 & IS:2062-E250 BR |
| 3 | Power Consumption | 260 Kw (for 5MTPH) |
| 4 | Water Consumption | 600 LPH |
| 5 | Water Recycling Rate | 96% |
| 6 | Lime Solution | 1:10 |
| Battery Breaker | ||
| 7 | Material | AISI-316 (chrome casted) |
| 8 | No of Hammers | 16 |
| 9 | Motor Rating | 75 kW |
| Manpower Required | ||
| 10 | Supervisor | 1 |
| 11 | Skilled and Unskilled Labour | 3 |
| Recovery From input | ||
| 12 | Lead Recovery | 70-75% |
| 13 | PP Recovery | 10% |
| 14 | Acidic Water | 15-20% |
