Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-365

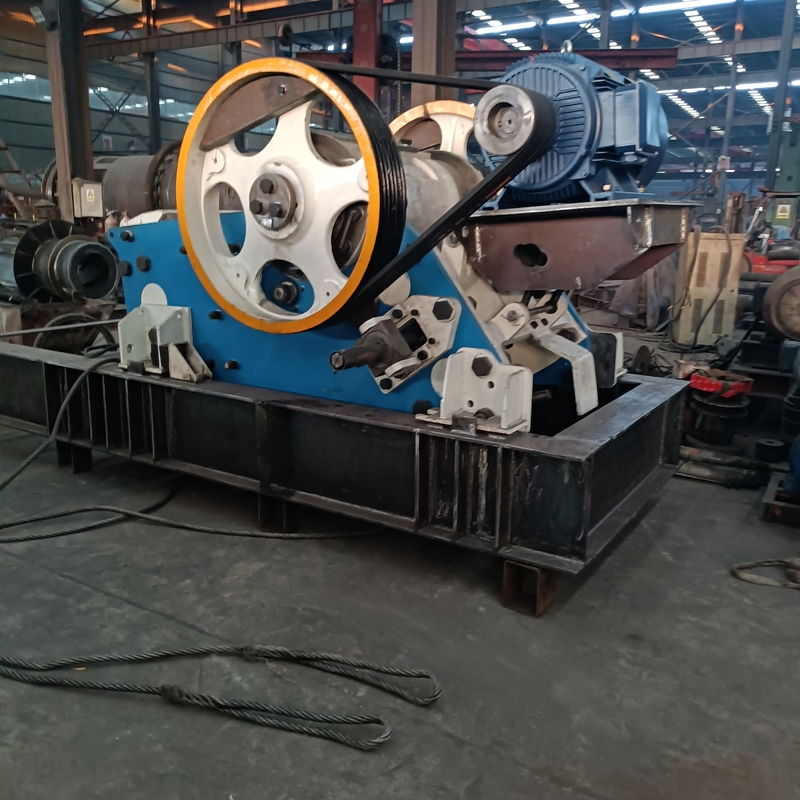

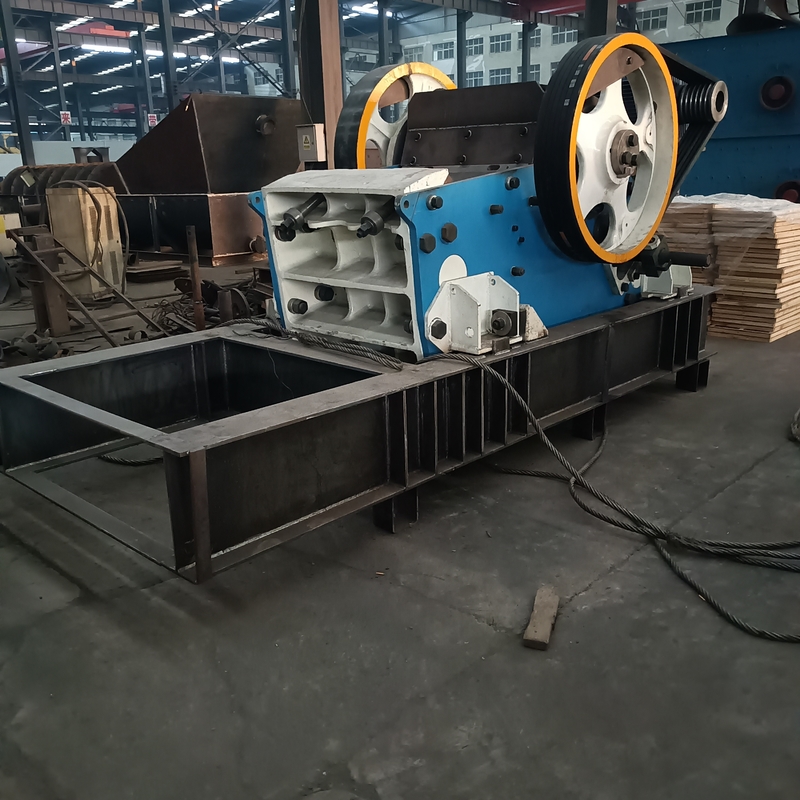

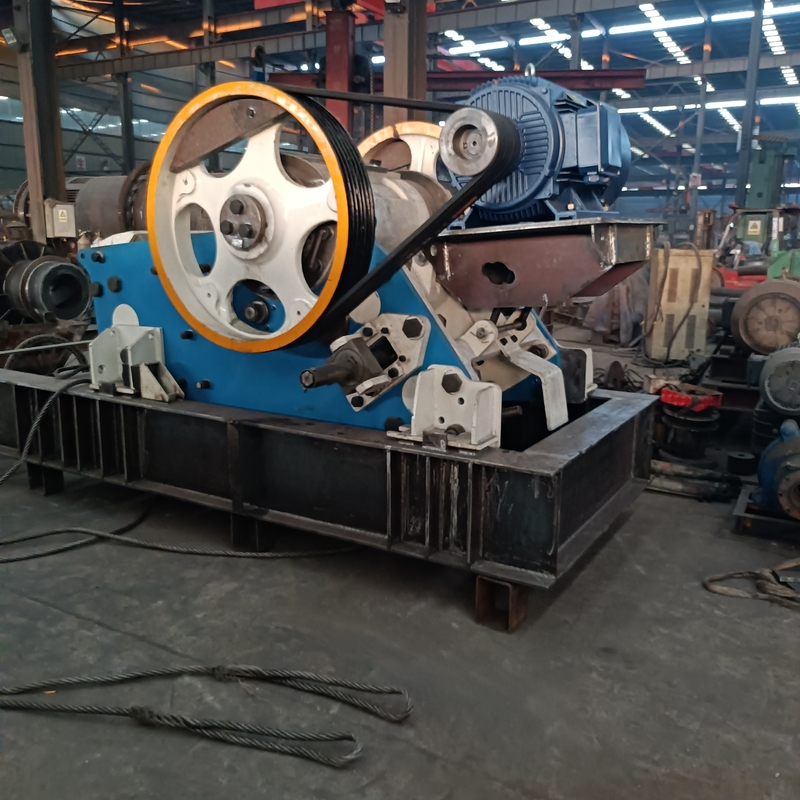

● 6CX Jaw Crusher boasts more reasonable moment of inertia and greater crushing strokes through optimization of the equipment structure crushing cavity and movable jaw's motion trail and speed.
● It is able to achieve higher crushing efficiency at the same power consumption and thus offer customers a larger rate of return on investment.
● In order to ensure stable and efficient production during crushing hard materials.
● 6CX Jaw Crusher is equipped with such core rotating components as high-quality casting movable jaw body.
Technical Details:
| Model | 6CX80 | 6CX96 | 6CX100 | 6CX106 | 6CX110 | 6CX125 | 6CX140 | 6CX145 | 6CX160 |
| The feeding mouth(mm) | 800×510 | 930×580 | 1000×760 | 1060×700 | 1100×850 | 1250×950 | 1400×1070 | 1400×1100 | 1600×1200 |
| Motor power(kw) | 75 | 75(90) | 110(90) | 110 | 132(160) | 160(132) | 200(160) | 200 | 250(200) |
| Speed(rpm) | 350 | 300 | 260 | 280 | 230 | 220 | 220 | 220 | 220 |
| Fixed Jaw lenght(mm) | 1100 | 1380 | 1600 | 1450 | 1800 | 2000 | 2100 | 2300 | 2500 |
|
Maintenance maximum weight(kg) (without the flywheel jaw assembly) |
2870 | 6500 | 7060 | 4020 | 9000 | 12960 | 15950 | 18600 | 21380 |
|
Total weight(kg) (Do not include motor and accessories) |
7520 | 17300 | 20100 | 13500 | 25060 | 36700 | 45300 | 53800 | 68600 |
| Width of feeding port(mm) | 800 | 1000 | 1060 | 1100 | 1250 | 1400 | 1400 | 1600 | |
| Feed depth(mm) | 510 | 760 | 700 | 850 | 950 | 1070 | 1100 | 1200 | |
| Tight edge discharge port(mm) | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly | Ton/hourly |
| 40 | 65-85 | ||||||||
| 50 | 80-95 | ||||||||
| 60 | 95-125 | 105-135 | |||||||
| 70 | 115-150 | 125-155 | 150-210 | 155-200 | 190-250 | ||||
| 80 | 130-170 | 140-180 | 170-225 | 175-230 | 210-275 | ||||
| 90 | 150-195 | 160-200 | 190-245 | 200-260 | 235-305 | ||||
| 100 | 165-215 | 175-225 | 215-280 | 220-290 | 255-330 | 290-380 | |||
| 125 | 210-275 | 220-280 | 265-345 | 280-365 | 310-405 | 350-455 | 385-500 | 400-520 | |
| 150 | 250-325 | 265-335 | 315-410 | 335-435 | 370-480 | 410-535 | 455-590 | 470-610 | 520-675 |
| 175 | 290-380 | 310-390 | 370-480 | 390-510 | 425-550 | 470-610 | 520-675 | 540-700 | 595-775 |
| 200 | 420-545 | 445-580 | 480-625 | 530-690 | 590-765 | 610-795 | 675-880 | ||
| 225 | 590-770 | 655-850 | 680-885 | 750-975 | |||||
| 250 | 650-845 | 725-945 | 750-975 | 825-1070 | |||||
| 275 | 820-1070 | 900-1170 |
