Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-363

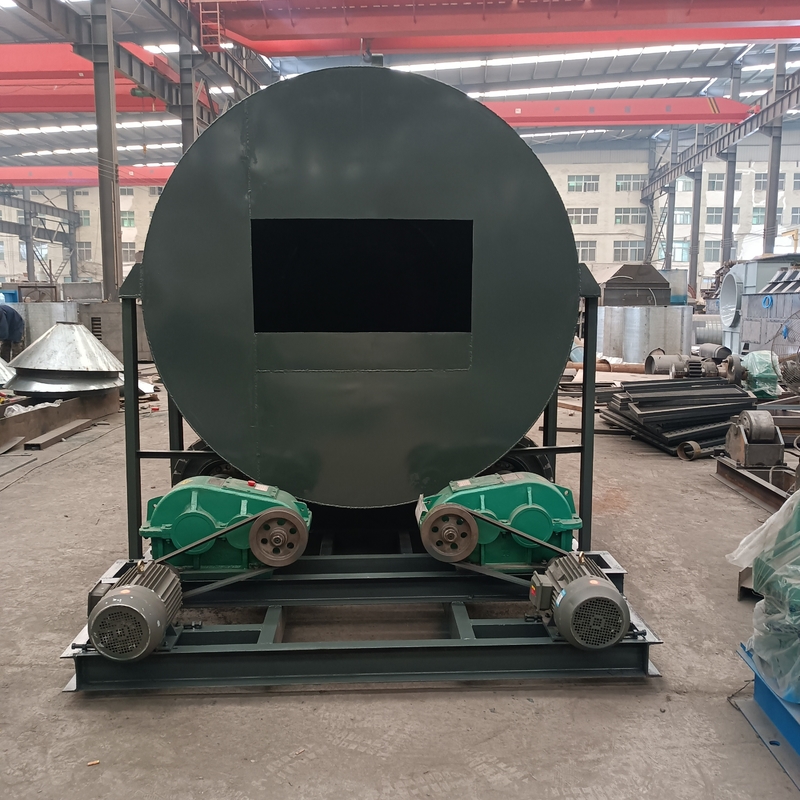

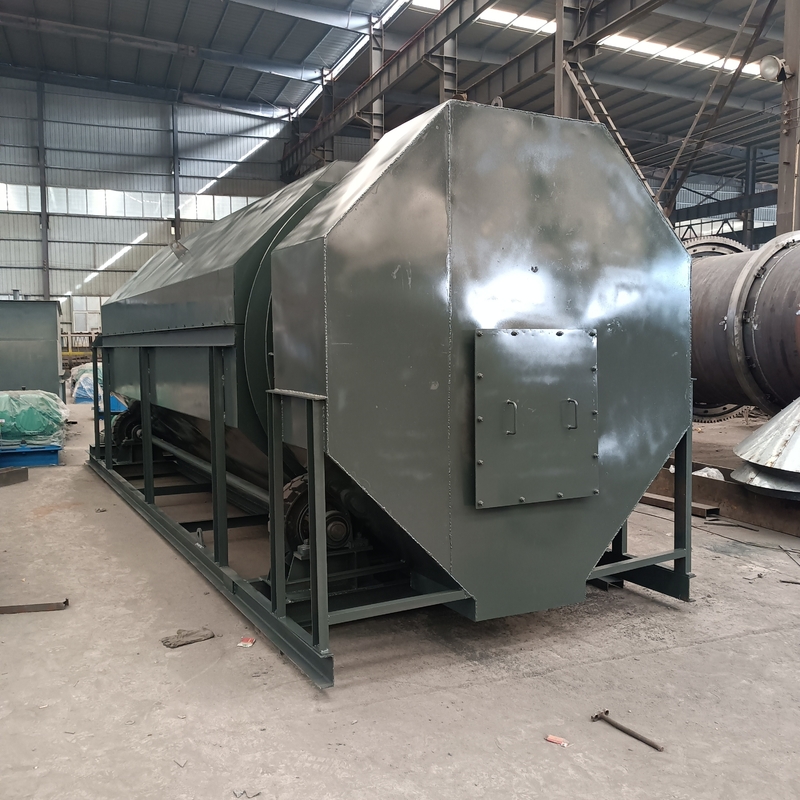

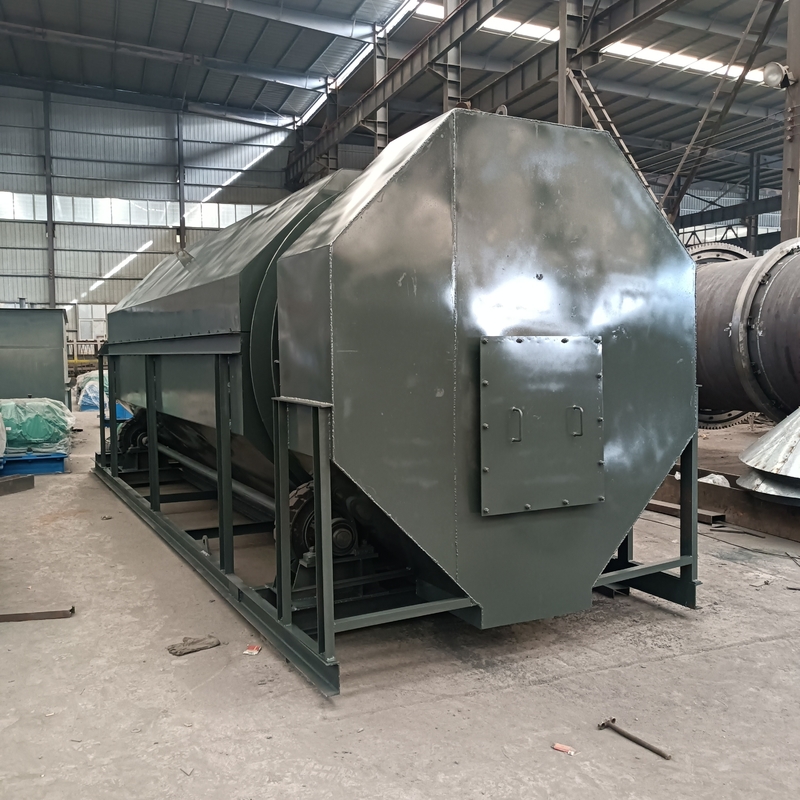

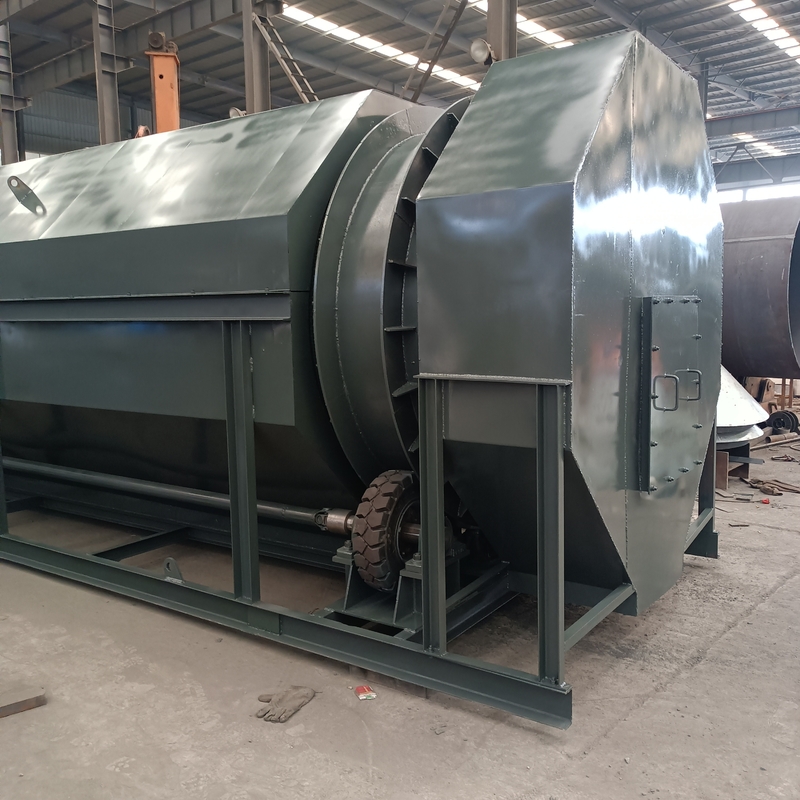

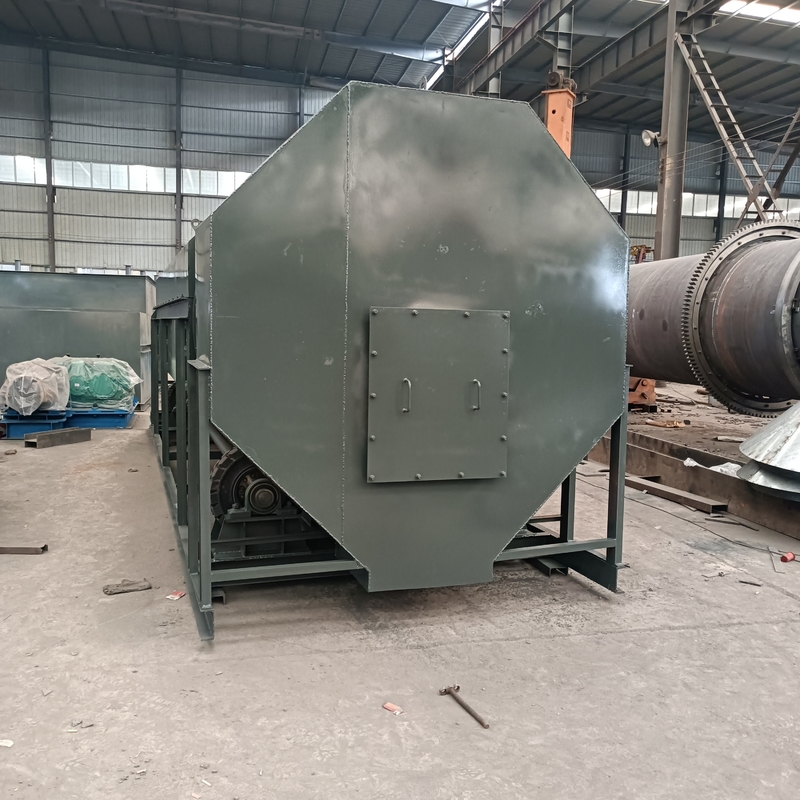

The trommel screen is setting up at the front of MSW sorting machine.
It could separate different size of waste, and separate them into two types or multiple waste as different size of material.
Application:
Its mainly used to the household waste, construction waste, waste metal, mine industry, power plant, metallurgy etc.
Technical Details:
| Dia.Of screen(mm) | Length (m) | Speed (r/min) | Capacity(t/h) | Bag break rate (%) | Rate of screening (%) | Power(kw) |
| YDG1200 | 4-8 | 0-20 | ≥20 | 60-90 | 70-90 | 4-5.5 |
| YDG1500 | 5-9 | 0-17 | ≥40 | 60-90 | 70-90 | 5.5-7.5 |
| YDG1800 | 6-10 | 0-14 | ≥50 | 60-90 | 70-90 | 7.5-11 |
| YDG2000 | 8-11 | 0-13 | ≥60 | 60-90 | 70-90 | 11-15 |
| YDG2200 | 9-12 | 0-12 | ≥70 | 60-90 | 70-90 | 15-18.5 |
| YDG2500 | 10-15 | 0-11 | ≥80 | 60-90 | 70-90 | 18.5-22 |
| YDG3000 | 10-15 | 0-11 | ≥100 | 60-90 | 70-90 | 22-30 |
