Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-358

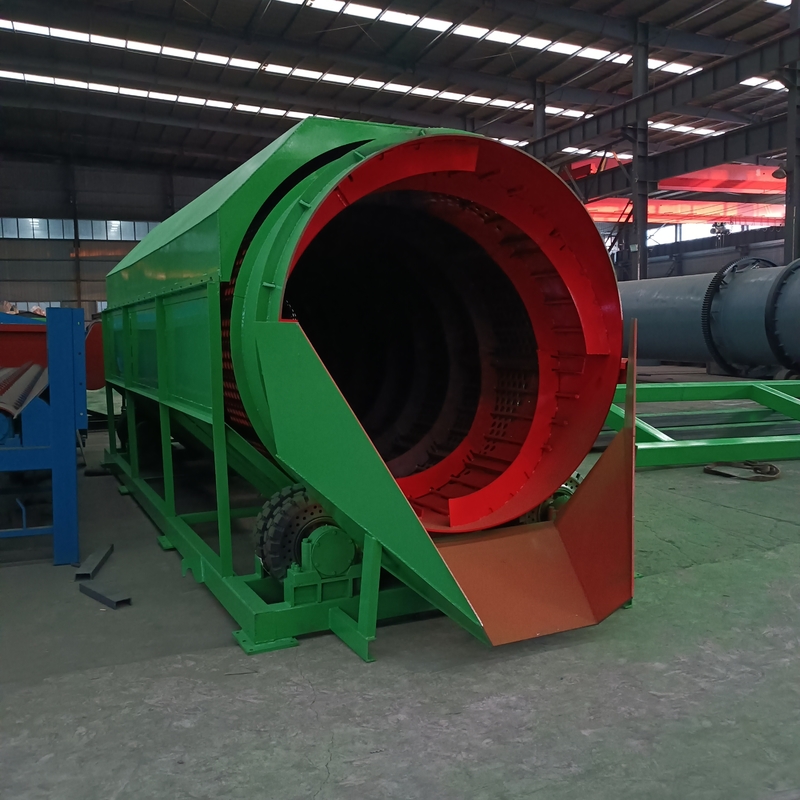

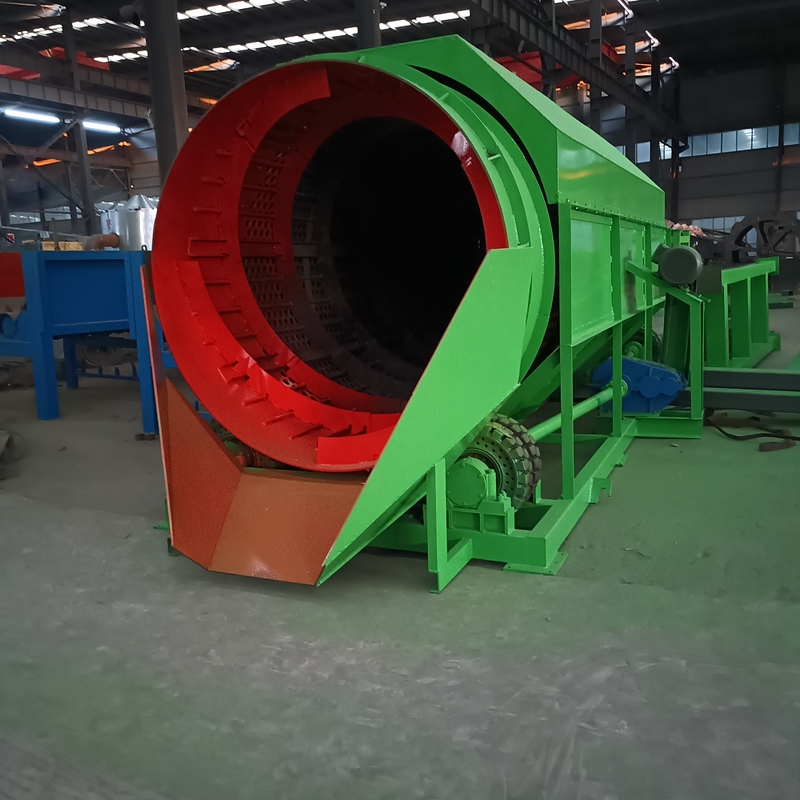

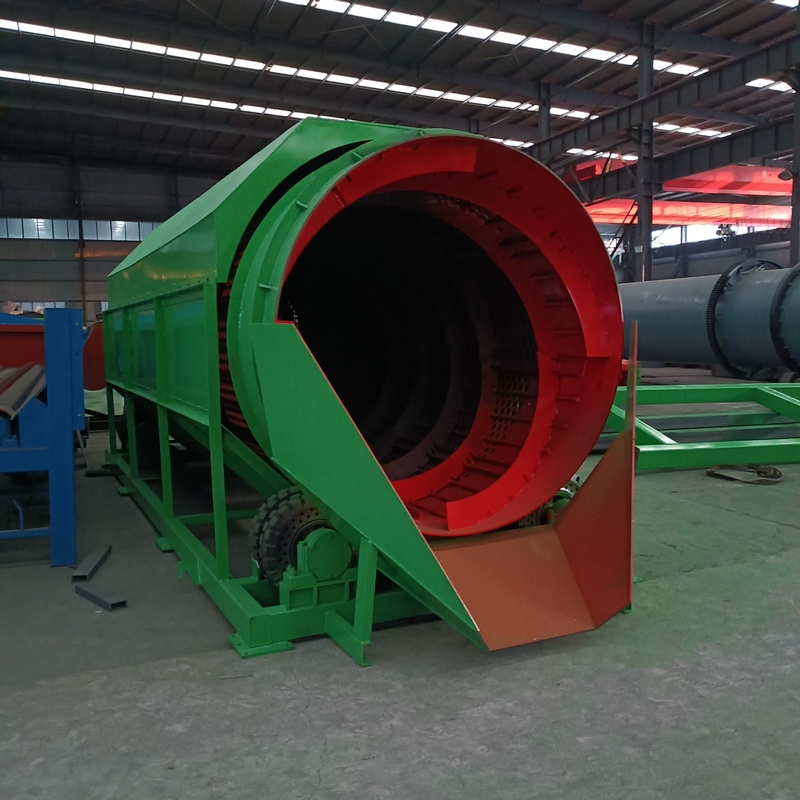

Trommel screen has wide range of sizes and capacities,it is a mechanical screening machine used to separate materials.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll, the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
We need to know your requirement according to underlist basic information:
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity _____t/h
Segment number: ______
Mesh size of each segment: _____mm _____mm _____mm
Working power supply: _____V ______HZ
Technical Details:
| Model | Length Range | Segment No. | Aperture Size | Power (Kw) |
Inclined Angle | Max. Material Size | Rotating Speed(rpm) |
| GTSφ600 | 2-4m | 1-2 | 5-35mm | 2.2-3 | 0-7° | 50mm | 15-18 |
| GTSφ800 | 2-5m | 1-3 | 5-40mm | 3-5.5 | 0-7° | 60mm | 15-18 |
| GTSφ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5 | 0-7° | 80mm | 15-18 |
| GTSφ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11 | 0-7° | 100mm | 15-18 |
| GTSφ1500 | 3-10m | 1-5 | 5-60mm | 7.5-1 5 | 0-7° | 150mm | 15-18 |
| GTSφ2000 | 4-12m | 1-5 | 5-75mm | 7.5-l 8.5 | 0-7° | 180mm | 15-18 |
| GTSφ2500 | 5-12m | 1-6 | 5-90mm | 11-l 8.5 | 0-7° | 200mm | 15-18 |
