Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-312

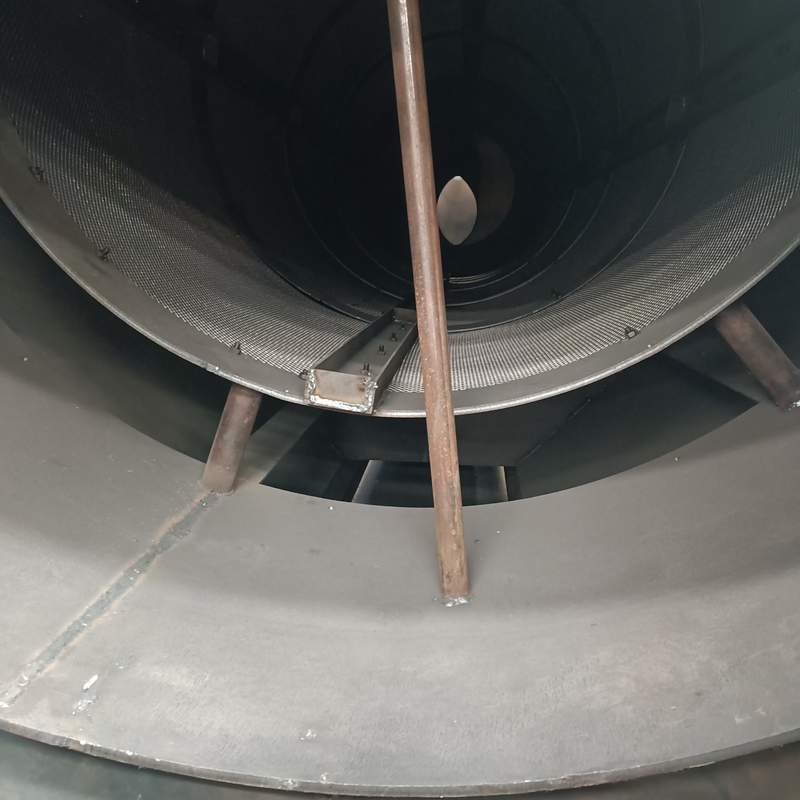

Hot-sale Product ----Rotary Drum Screen / Reinforced Wedge Wire CylinderRotary drum screen also called reinforced wedge wire cylinder, it is made of stainless steel V shaped wires and supportrods the support rods and each intersection of wedge wire is welded for extra strength and durability .it is used tomechanically separate liquids from solid particles, it can be produced to suit the needs of each individual site and the natureof the suspended solids. As the wedge wire rotary drum screen is working under high pressure when separation andfltration, so there is reinforced rods on the structure. The reinforcement ways are reinforcement rod type & frame type, it iseasy for installation.
Sieves Parameters :
Material : SS AISI 304, 304L, 316, 316L etc
Slot size : 0.05 mm - 10mm, or customized sizes
Wire : 2.0.2.30,2.50,3.0, 3.20,3.50,4.0,4.50mm
OD :O 100mm - 02500mm.
ID :176 mm, 200 mm, 230 mm or customized sizes
Length : 600 mm, 602 mm or customized sizes
Max-capacity can reach 500t/h.
The better let us know more details of your materials.
| Materials | stainless steel, carbon steel, alloy steel |
|---|---|
| Sieve types | perforated metal plate, wedge wire screens, fabric |
