Baryte is crisp and brittle, crystal is big tubular. Generally, use gravity separation, magnetic separation, flotation to select.
Application:
1. Process High brightness minute powder and supper micropowder. After crushing, flotation, whitening, get High brightness minute powder from baryte.
2. produce barium salt products, such as lithopone, barium chloride, barium hydroxide, etc.
Introduction
1. Gravity separation Generally, use crushing, screening, and jig to get high grade concentrate(grade up to 80%). Crushing section
use jaw crusher and two stage crushing process to crush baryte. Screen section use circular vibrating screen, which have large
processing capacity, high efficiency, simple and useful. It is the ideal equipment to screen baryte. Jig selecting process use two
kinds of jig to select the coarse and fine particle respectively after crushing. 2. magnetic separation
Generally, use wet magnetic separator to select out iron-bearing mineral, such as siderite, then the baryte can be use to produce
barium medicine which require very low iron content. 3. Flotation Flotation are used to separate the fine-grained dissemination
baryte and tailings from gravity separation. According to different adsorption type, use fatty acid alkyl sulfate, alkane
sulfonate, etc anion collector or kation amine collector to flotine baryte.
Barite processing plant

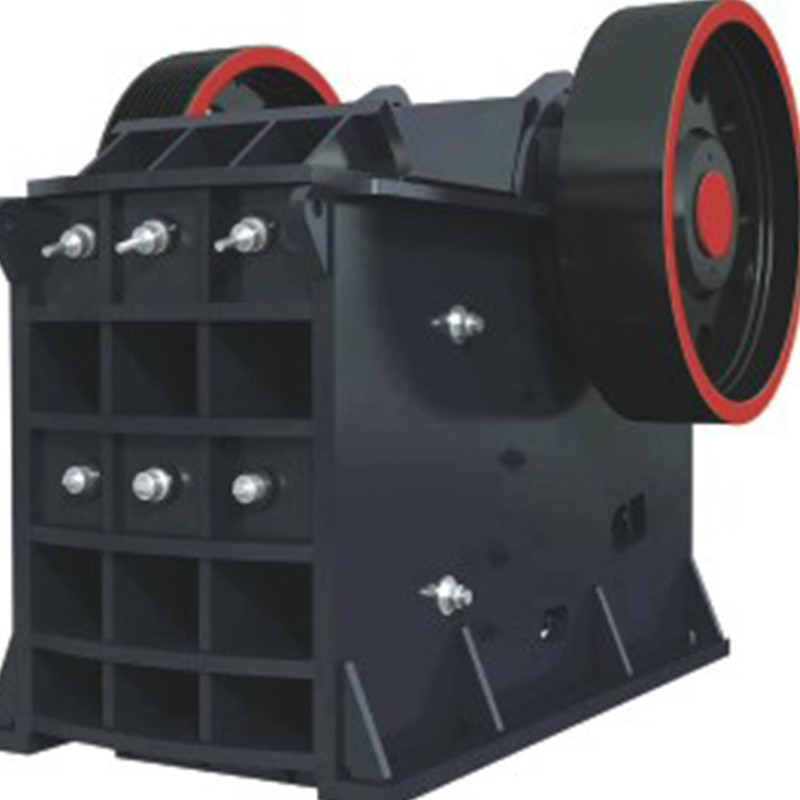

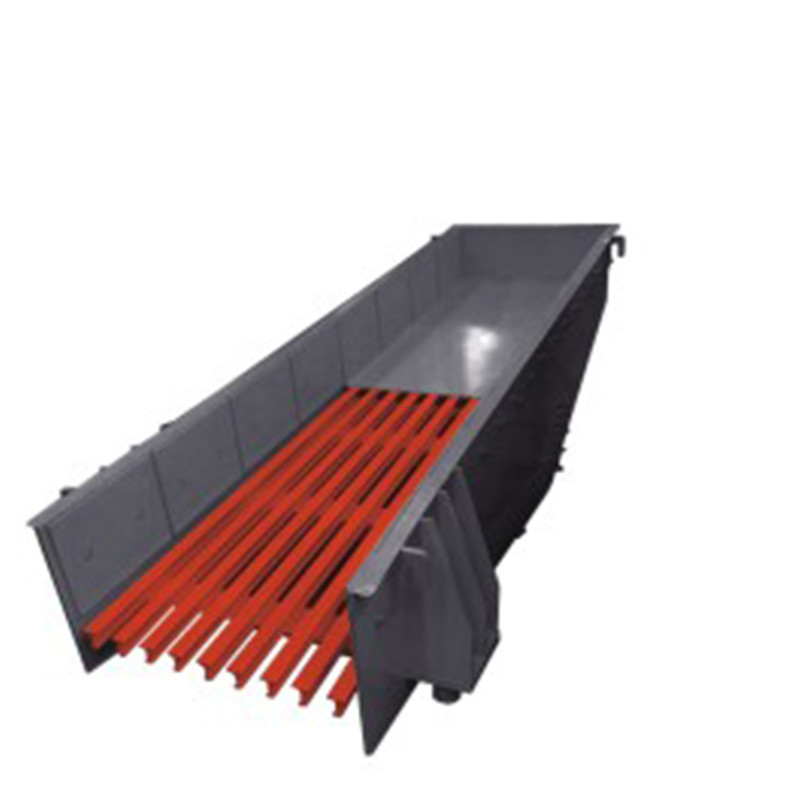

this setup is a barite processing plant, it is configured with a vibrating grizzly feeder, jaw crusher, log washer, spiral sand
washer, vibrating screen, and belt conveyors.
The materials under the grizzly bar of the vibrating feeder are conveyed to 2 spiral sand washers through the material guide chute, the material above the grizzly bar is fed to the jaw crusher, the discharged material of the jaw crusher enters the 2 spiral log washers, and the spiral out materials is fed into 1 spiral sand washer, the overflow of the spiral ore washer is guided to the vibrating screen, and the discharging materials of the 3 spiral sand washers are all fed into the vibrating screen, and the vibrating screen sieve out 2 kinds of finished products with different particle sizes, 0-20mm and materials over 20mm.
