Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-291
Calcining Time and Process Can be Adjusted
Hengyang electrical external heating kiln is suitable for continuous production. Heat source adopts imported SSR Silicon controlled rectifier or power regulator. Temperature control can be precisely controlled. Calcining time and temperature can be flexibly adjusted based on specific process requirement.
Less Quick Wear Parts and Easy Maintain
Heating chamber adopts two-stage assembly design which provides convenience for maintenance and disassembly. Superior heating components holds longer service life. There are various layout mode available, parallel type, side-mounted type and drawer-type, easy to replace and less malfunction point. It is a representative for Taeda's effort for humanization design.
Closed Working System and No Pollution

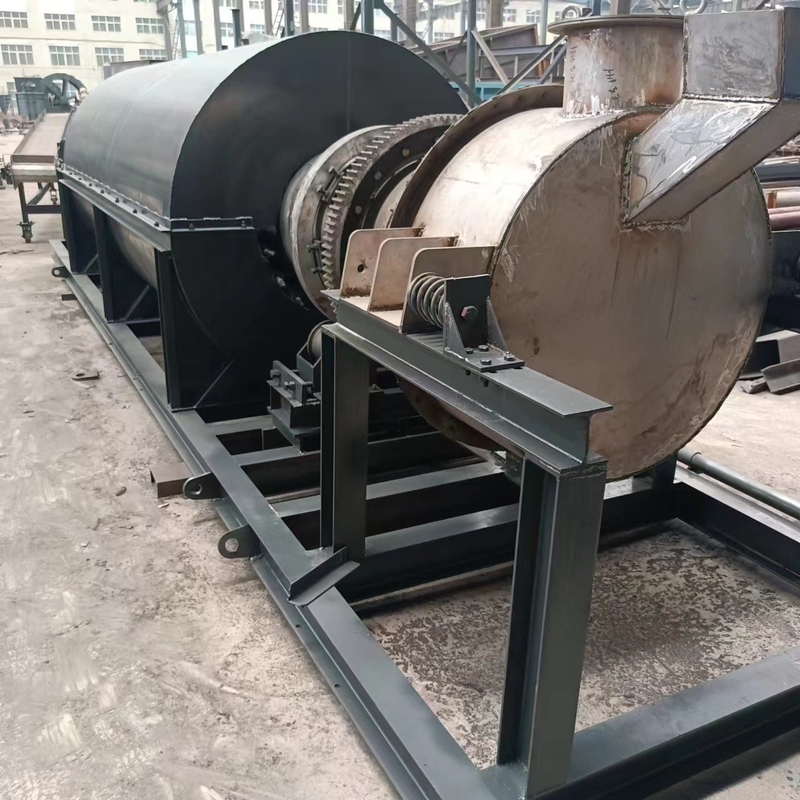

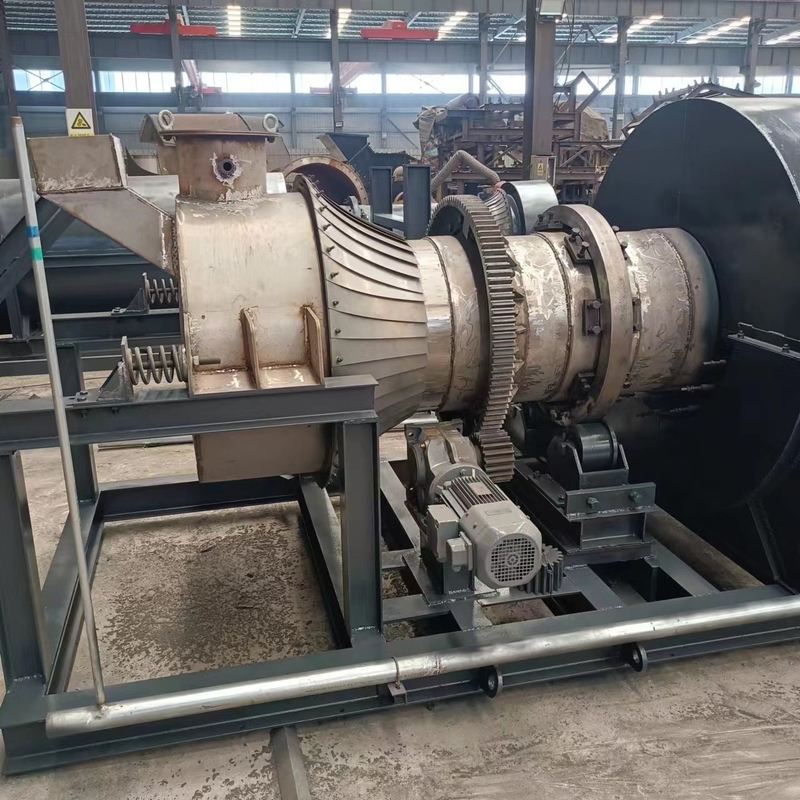

Hengyang electrical external heating furnace is indirect heating rotary furnace where materials move in inner tube. Indirect heat transfer and closed system causes no pollution to environment and prevents pollution caused to materials. It holds high recycling rate and causes less impurities to final product.
Automatic Control and Require Less Labor Force
Feeding silo and feeder adopt instant speed control so that to guarantee continuous operation. It adopts multiple-temperature and multiple pressure point supervision. Blower, induced draft fan, protection gas openness and pressure can be automatically controlled. No need paper recording makes easy transition for working shifts.
Technical Detail of Electric Heating Kiln
| Model | Rated operating temperature | Furnace pipe size | Rated heating power | Installation Angle | Capacity | Dimensions | Weight |
| EHY10 | 1100℃ | φ0.1×4.5m | 36kW | 0.5~5.0° | ~4kg/h | ~6.1×1.6×1.4m | ~4T |
| EHY15 | 1100℃ | φ0.15×4.5m | 42kW | 0.5~5.0° | ~8kg/h | ~6.1×1.6×1.4m | ~4T |
| EHY20 | 1100℃ | φ0.2×4.5m | 48kW | 0.5~5.0° | ~15kg/h | ~6.1×1.6×1.4m | ~4T |
| EHY35 | 1100℃ | φ0.35×9m | 68kW | 0.5~4.0° | ~120kg/h | ~11×1.8×1.9m | ~8T |
| EHY40 | 1100℃ | φ0.4×9m | 108kW | 0.5~4.0° | ~150kg/h | ~11×1.8×1.9m | ~10T |
| EHY50 | 1100℃ | φ0.5×9m | 180kW | 0.5~4.0° | ~250kg/h | ~11×1.9×2.0m | ~12T |
| EHY62 | 1100℃ | φ0.62×10.5m | 260kW | 0.5~3.0° | ~300kg/h | ~12.5×2.2×2.1m | ~15T |
| EHY70 | 1100℃ | φ0.7×10.5m | 280kW | 0.5~3.0° | ~360kg/h | ~12.5×2.3×2.2m | ~18T |
| EHY80 | 1100℃ | φ0.8×10.5m | 350kW | 0.5~3.0° | ~480kg/h | ~12.5×2.3×2.2m | ~20T |
| EHY94 | 1100℃ | φ0.94×12m | 400kW | 0.5~2.5° | ~650kg/h | ~14×2.4×2.3m | ~25T |
| EHY100 | 1100℃ | φ1.0×12m | 410kW | 0.5~2.5° | ~750kg/h | ~14×2.5×2.5m | ~28T |
| EHY110 | 1100℃ | φ1.1×12m | 460kW | 0.5~2.5° | ~900kg/h | ~14×2.5×2.5m | ~30T |
| EHY125 | 1100℃ | φ1.25×12m | 500kW | 0.5~2.5° | ~1000kg/h | ~14×2.6×2.6m | ~35T |
| EHY142 | 1100℃ | φ1.42×13.5m | 600kW | 0.5~2.5° | ~1350kg/h | ~15.5×2.7×2.7m | ~40T |
| EHY150 | 1100℃ | φ1.5×13.5m | 750kW | 0.5~2.5° | ~1500kg/h | ~15.5×2.8×2.9m | ~45T |
| EHY160 | 1100℃ | φ1.6×15m | 900kW | 0.5~2.5° | ~1600kg/h | ~17.5×2.9×3.0m | ~50T |
| EHY180 | 1100℃ | φ1.8×15m | 1000kW | 0.5~2.5° | ~1900kg/h | ~17.5×3.1×3.2m | ~55T |
| EHY200 | 1100℃ | φ2.0×15m | 1100kW | 0.5~2.5° | ~2200kg/h | ~17.5×3.3×3.4m | ~60T |
| EHY220 | 1100℃ | φ2.2×15m | 1300kW | 0.5~2.5° | ~2600kg/h | ~18×3.5×3.6m | ~70T |
