Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-287

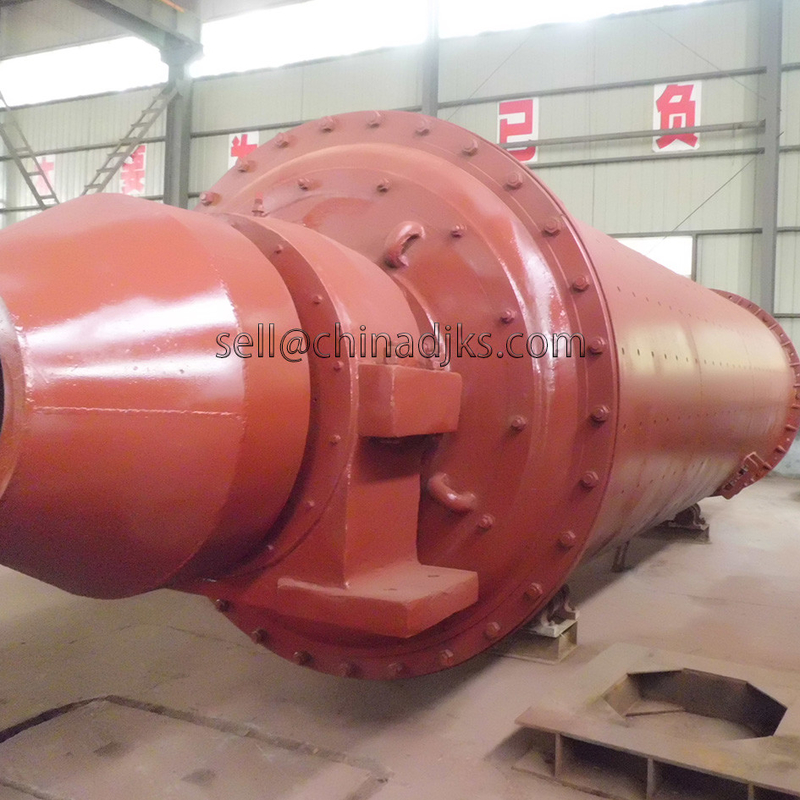

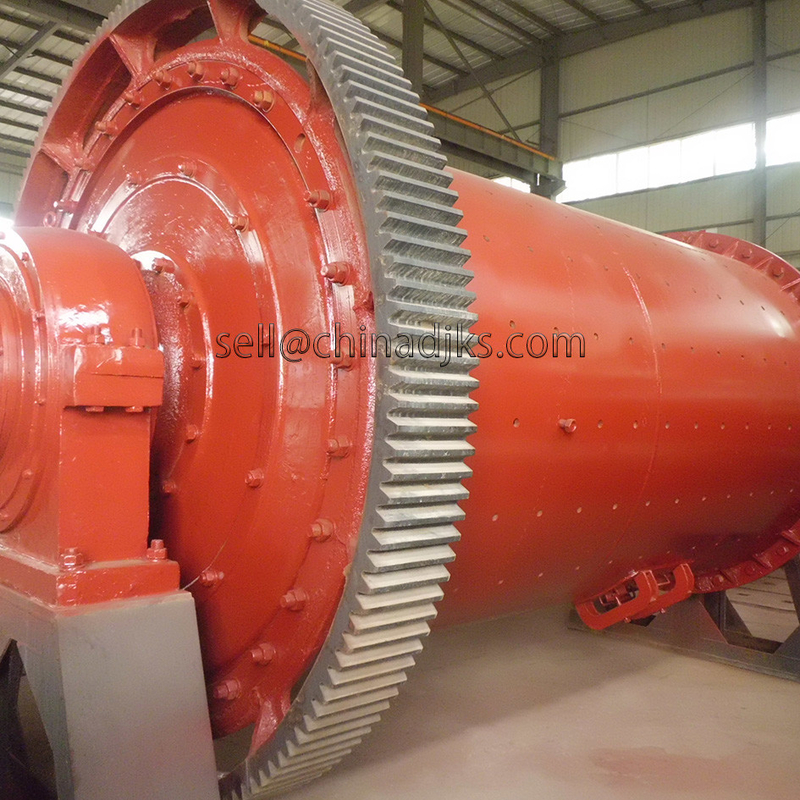

In the process of material grinding, the continuous ball mill adopts a continuous and uninterrupted form for feeding, grinding, and discharging. According to different operation process, ball grinding mill can be divided into continuous ball mill and batch ball mill. The feeding and discharging process of the continuous type ball mill is continuous, which can be produced in open or closed circuit grinding applications, such as cement ball mill, ceramic ball mill.
Continuous ball mill can support dry and wet grinding, customers can choose continuous wet ball mill or continuous dry ball mill according to the nature of the grinding material.
Taking the continuous dry ball mill as an example, the continuous discharge is adopted when the mill works. Before grinding, the wind force is determined according to the particle size and weight of the material. When the material reaches the specified particle size and the weight is enough to be driven by the wind, it will be sent out of the mill by the wind system. Therefore, the continuous type ball mill is more suitable for grinding operations with higher requirements for particle size uniformity.
As an experienced continuous ball mill manufacturer, the continuous ball mills produced by us have simple structure, small floor area and high unit output. The mechanization of the continuous type ball mill is high, and the unit energy consumption is less. For example, the graphite ball mill and the iron ore ball mill have excellent energy-saving performance.
Technical Details of Continuous Ball Mill
| Specification(mm) | Capacity(t/h) | Feeding Size(mm) | Output Size(mm) | Motor Power(kW) | Liner Type&Grinding Medium |
|---|---|---|---|---|---|
| φ900×1800 | 0.65-2 | ≤20 | 0.075-0.89 | 18.5 | Rubber liner&High aluminum ball |
| φ900×3000 | 1.1-3.5 | ≤20 | 0.075-0.89 | 22 | |
| φ1200×2400 | 1.5-4.8 | ≤25 | 0.075-0.89 | 30 | |
| φ1200×4500 | 1.6-5.8 | ≤25 | 0.074-0.4 | 55 | |
| φ1500×3000 | 2-5 | ≤25 | 0.074-0.4 | 75 | |
| φ1500×5700 | 3.5-6 | ≤25 | 0.074-0.4 | 130 | |
| φ1830×3000 | 4-10 | ≤25 | 0.074-0.4 | 130 | |
| φ1830×6400 | 6.5-15 | ≤25 | 0.074-0.4 | 210 | |
| φ2100×3000 | 6.5-36 | ≤25 | 0.074-0.4 | 155 | |
| φ2100×7000 | 12-48 | ≤25 | 0.074-0.4 | 280 | |
| φ2200×4500 | 9-45 | ≤25 | 0.074-0.4 | 280 | |
| φ2200×6500 | 14-26 | ≤25 | 0.074-0.4 | 380 | |
| φ2200×7000 | 15-28 | ≤25 | 0.074-0.4 | 380 | |
| φ2200×7500 | 15-30 | ≤25 | 0.074-0.4 | 380 | |
| φ2400×3000 | 7-50 | ≤25 | 0.074-0.4 | 245 | |
| φ2700×4000 | 22-80 | ≤25 | 0.074-0.4 | 380 | |
| φ2700×4500 | 26-90 | ≤25 | 0.074-0.4 | 480 | |
| φ3600×8500 | 45.8-256 | ≤25 | 0.074-0.4 | 1800 | |
| φ4000×6000 | 65-248 | ≤25 | 0.074-0.4 | 1600 | |
| φ4500×6400 | 84-306 | ≤25 | 0.074-0.4 | 2000 | |
| φ5030×8300 | 118-500 | ≤25 | 0.074-0.4 | 3300 | |
| φ5500×8500 | 148-615 | ≤25 | 0.074-0.4 | 4500 |
