Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-339
Capacity: 15,000-100,000(m3/a)
Main Raw Materials:Clay,Slurry,Shale

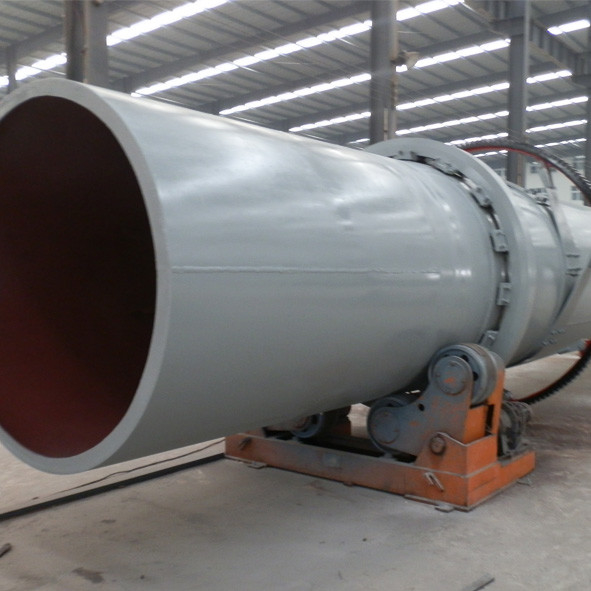

Main Equipment: rotary kiln,rotary screen,granulator,
Application: Construction, Gardening
Light Expanded Clay Aggregate Production Line, When the raw material is clay or slurry, the production flow chart shall be consist of raw material process, mixing, granulating, insert type rotary kiln burning process, cooling process, screening and bag packing. When the raw material is shale, the production flow chart shall be consist of crushing, screening, single rotary kiln burning process, cooling process, screening and bag packing. The fuel could be coal, nature gas, biomass fuel and etc.
TECHNICAL Details:
| No | Indicator | Unit | Value | ||||
| 1 | Capacity | m3/a | 15,000 | 25,000 | 35,000 | 50,000 | 100,000 |
| 2 | Product | ||||||
| LECA (Light Expanded Clay Aggregate) | m3/a | 15,000 | 25,000 | 35,000 | 50,000 | 100,000 | |
| 3 | Main Fuel and raw material consumption | ||||||
| Clay | t/a | 8,800 | 14,700 | 20,500 | 29,400 | 58,800 | |
| Shale | t/a | 8,300 | 13,900 | 19,400 | 27,800 | 55,600 | |
| Coal | t/a | 1,360 | 2,270 | 3,180 | 4,540 | 9,080 | |
| 4 | Power Consumption | ||||||
| Fresh Water | t/a | 1,000 | 1,500 | 2,500 | 3,000 | 6,000 | |
| Power | kWh/a | 187,500 | 312,500 | 875,000 | 1,250,000 | 2,500,000 | |
| 5 | Employee Qty Needed | a | 25 | 25 | 23 | 23 | 22 |
