Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-337

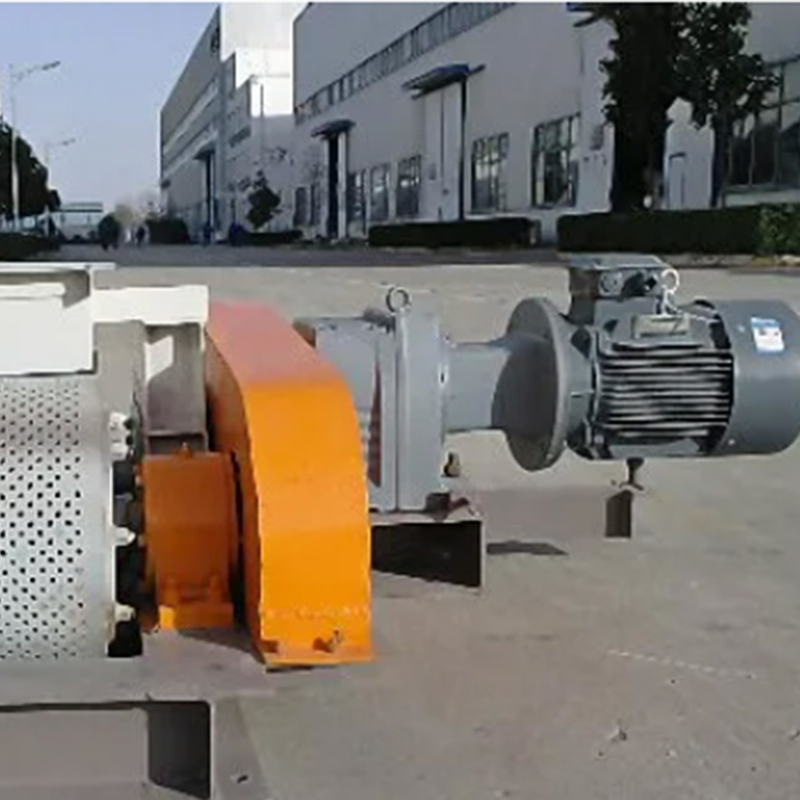

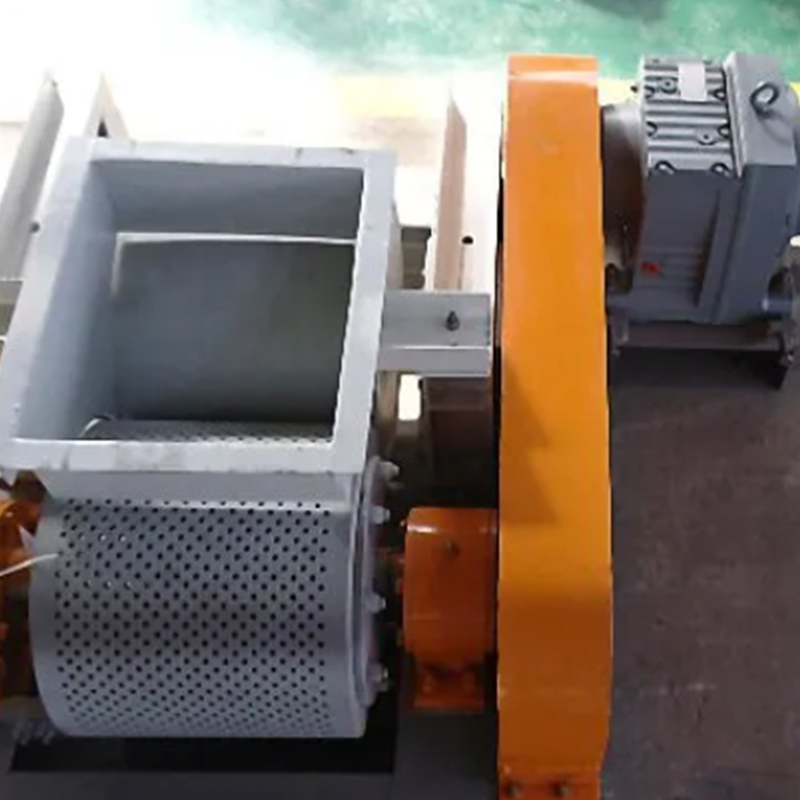

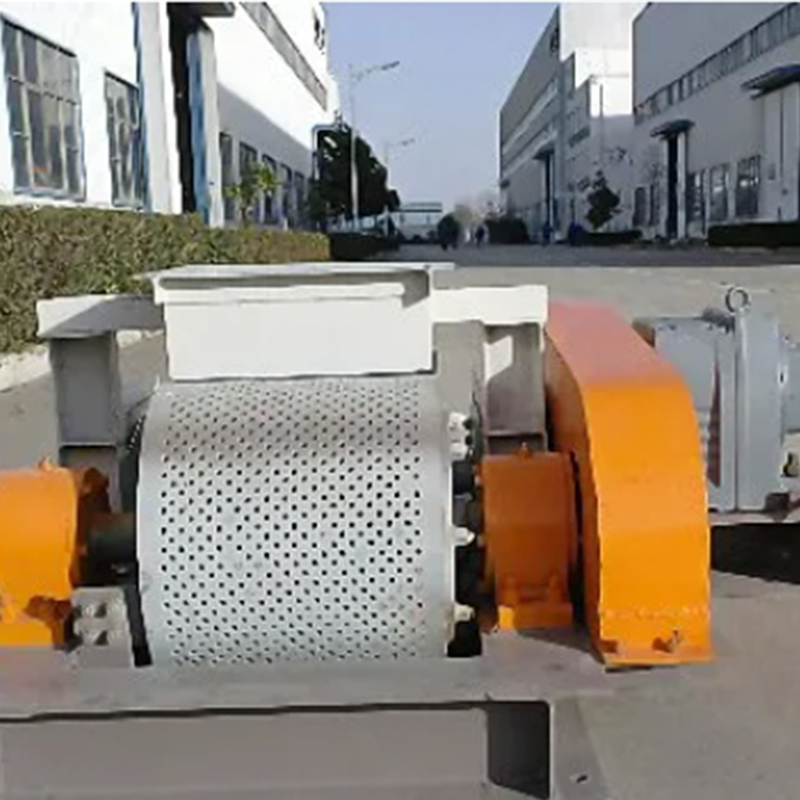

Double roller granulator is a machine for producing powder or small particle material with the special shape by rolling cyclinder extruding action. The granulator has the features of even outputting particle size, high rate of finished products, high production capacity, compact structure, reasonable layout, small area needed and high automatic control.
Features:
1. The granulator has the features of even outputting particle size
2. High rate of finished products, high production capacity
3. Compact structure, reasonable layout
4. Small area needed and high automatic control.
Technical Details:
| Model | Roller | Motor Power(kW) | Capacity(t/h) | ||
|
Diameter (mm) |
Length (mm) |
Rotating Speed (r/min) | |||
| HG3530 | φ350 | 300 | 58 | 5.5 | 1 |
| HG4035 | φ400 | 350 | 58 | 7.5 | 1-2 |
| HG4540 | φ450 | 400 | 58 | 11 | 2-3 |
| HG5045 | φ500 | 450 | 58 | 15 | 3-4 |
| HG6055 | φ600 | 550 | 65 | 18.5 | 5-6 |
