Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-318

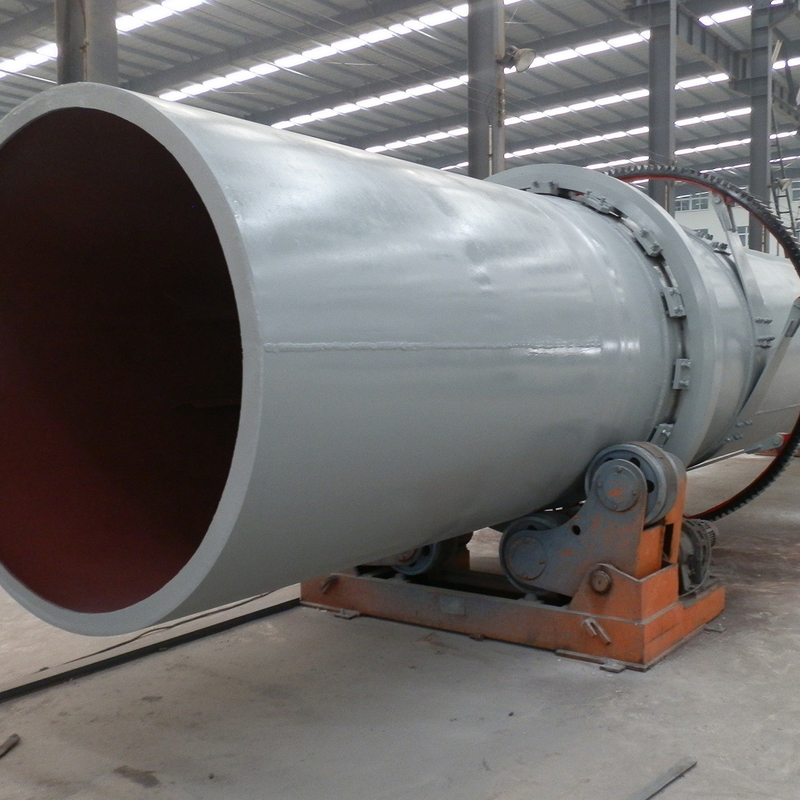

Palm fibers drying machines are mainly constituted of heat source, heat exchangers, feeding machines, rotary drum, discharging machine, circulating fan, residue cleaning systems, and power distribution cabinets. After the separation of fiber entering the dryer, it is uniformly distributed in the drum, lifting the material and drop it through the hot air in order to maximize heat transfer. The material is evenly dispersed in the hot air, heat transfer, mass transfer thus dries quickly in the drum.
Palm fiber dryer can dry the moisture content of 30-45% palm fiber, fast drying of moisture content is less than 18% of the finished product. Using wood, straw, nutshell waste (or coal, natural gas and diesel oil) for energy, we use all kinds of wet material for hot air and instantaneous high temperature for drying process, the host transmits with electromagnetic or frequency control of motor speed, and equipped with automatic temperature control device for the process of drying fiber with good color, strength, and flexibility.
Technical Details:
| Model | Capacity(t/h) | Raw Material Moisture(%) | Drying Moisture(%) | Drying temperature(℃) | Total Power(kw) | Total Weight(kg) | Covering Area |
|---|---|---|---|---|---|---|---|
| HYXG1416 | 0.3-0.5 | 30-45 | 15-18 | 100-180 | 20-35 | 12000 | 8m*24m |
| HYXG1620 | 0.4-0.6 | 25-40 | 18000 | 8m*30m | |||
| HYXG1824 | 0.5-0.7 | 30-45 | 24000 | 8m*38m | |||
| HYXG2230 | 0.8-1.0 | 35-50 | 30000 | 10m*46m | |||
| HYXG2336 | 1.2-1.5 | 40-55 | 38000 | 10m*50m |
