Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-316
Hengyang Drying Systems Sand Dryer
Sand dryer is also called river sand dryer, yellow sand dryer and quartz sand dryer. It is a drying equipment that handles a large amount of materials, with reliable operation, large operation flexibility, strong adaptability and large processing capacity. Commonly used for drying river sand, artificial sand, quartz sand, slag, fly ash, etc. Widely used in building materials, chemical industry, foundry and other industries. It is used to handle a large number of materials, has a large production capacity, a wide range of applications and reliable operation.

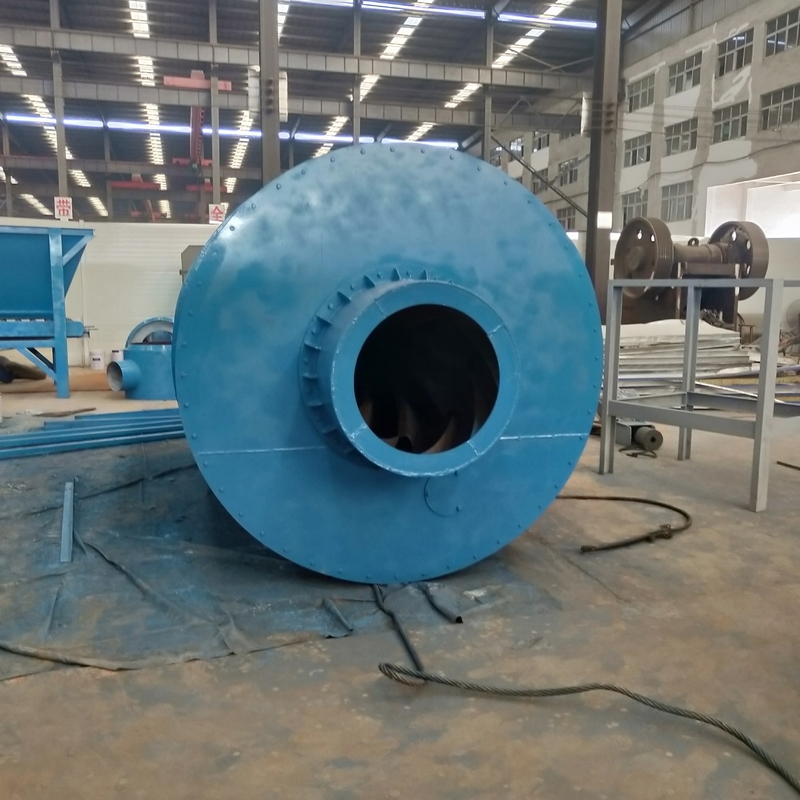

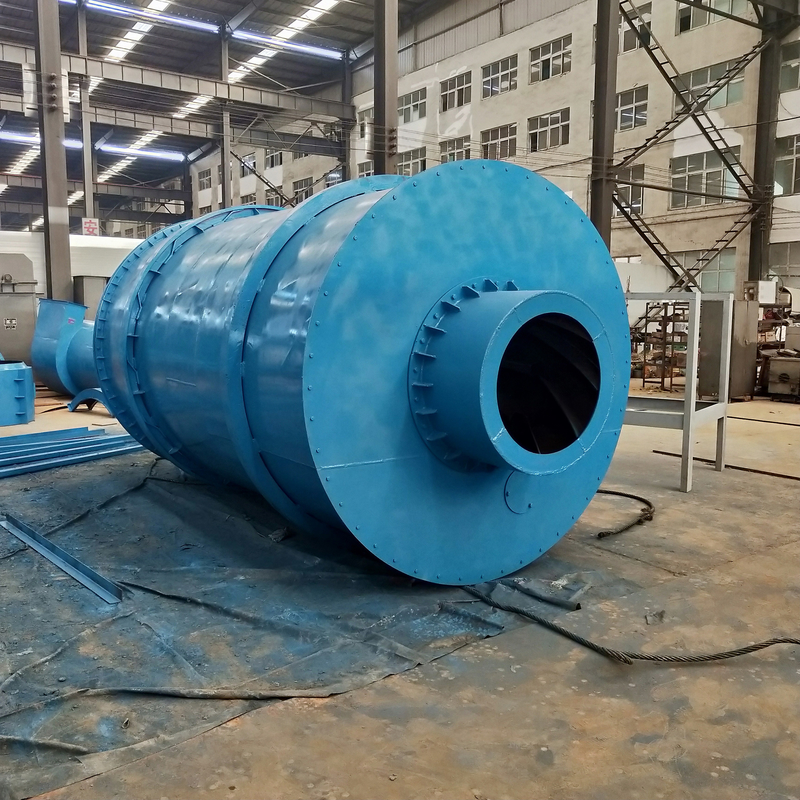

Hangyang sand dryer adopts three-layer drum design, which is a special dryer for non-viscous, solid heavy materials developed and manufactured on the basis of single-cylinder dryer.
Advantages of sand dryer:
1. The equipment investment is low, and it is made of wear-resistant manganese plate, which is 3-4 times more wear-resistant than ordinary steel plates.
2. The initial moisture content of the material is 15%, and the final moisture content is guaranteed to be less than 3%. It is the first choice for various drying projects such as cement plant slag powder and dry powder mortar production line.
3. Compared with the traditional single-cylinder dryer, the thermal efficiency is increased by more than 40%.
4. The fuel can be applied to white coal, bituminous coal, coal gangue, oil and gas. It can bake block, granular and powdery materials below 20-40mm.
5. Compared with the single-cylinder dryer, the floor area is reduced by about 60%. The civil construction investment is reduced by about 60%, and the installation is convenient.
6. There is no air leakage phenomenon, which completely solves the difficulty of sealing.
7. When the discharge temperature is less than or equal to 60 degrees, it can be directly fed into the material warehouse without entering the cooling shed for cooling.
8. The temperature of the outer cylinder is less than or equal to 60 degrees, the temperature of the exhaust gas is less than 120 degrees, and the use time of the dust removal equipment bag is more than 2 times longer.
Sand Dryer Technical Details:
| Model(m) | Output(t/h) | Coal consumption(kg/t) | Total power(kw) | ||
|---|---|---|---|---|---|
| River sand | Fly ash | Mineral slag | |||
| Φ2.0×5 | 12-15 | 6-7 | 10-13 | 10-12 | 4kw×2 |
| Φ2.2×5 | 14-18 | 7-9 | 12-15 | 10-12 | 5.5kw×2 |
| Φ2.5×5 | 23-28 | 10-13 | 20-22 | 10-12 | 5.5kw×4 |
| Φ2.8×6 | 30-35 | 15-18 | 25-30 | 10-12 | 5.5kw×4 |
| Φ3.0×6 | 35-40 | 18-20 | 32-35 | 8-10 | 7.5kw×4 |
| Φ3.0×7 | 40-45 | 20-25 | 35-40 | 8-10 | 7.5kw×4 |
| Φ3.2×7 | 45-50 | 25-30 | 40-45 | 8-10 | 11kw×4 |
| Φ3.2×8 | 50-55 | 30-35 | 45-50 | 8-10 | 11kw×4 |
| Φ3.6×8 | 60-70 | 35-40 | 60-65 | 6-8 | 15kw×4 |
| Φ3.8×9 | 70-80 | 40-45 | 70-75 | 6-8 | 15kw×4 |
| Φ4.0×10 | 90-100 | 45-50 | 80-90 | 6-8 | 18.5kw×4 |
| Φ4.2×8.5 | 80-100 | 45-60 | 80-90 | 6-8 | 18.5kw×4 |
