Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-310

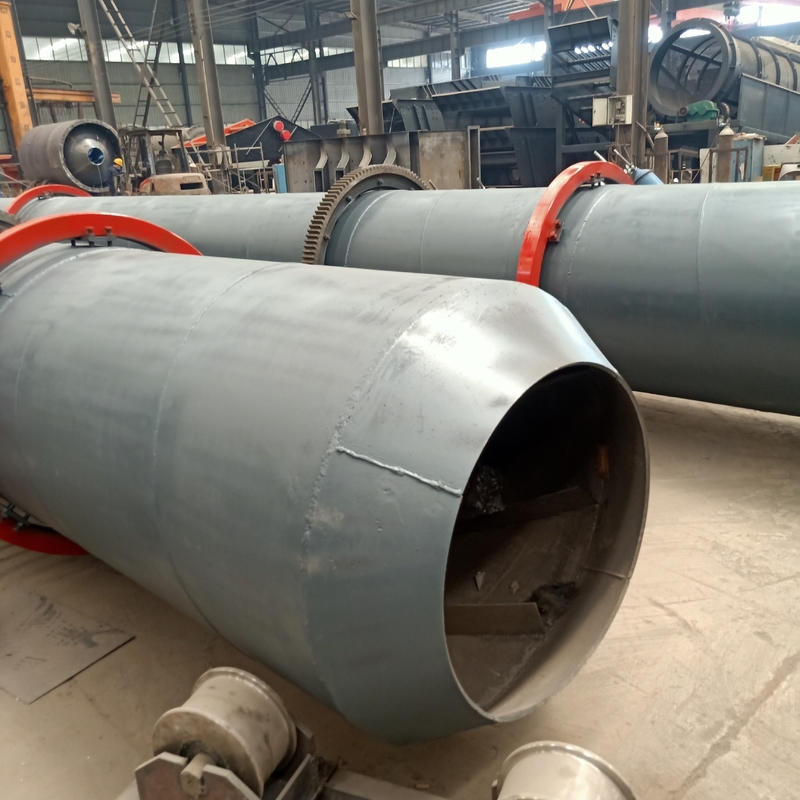

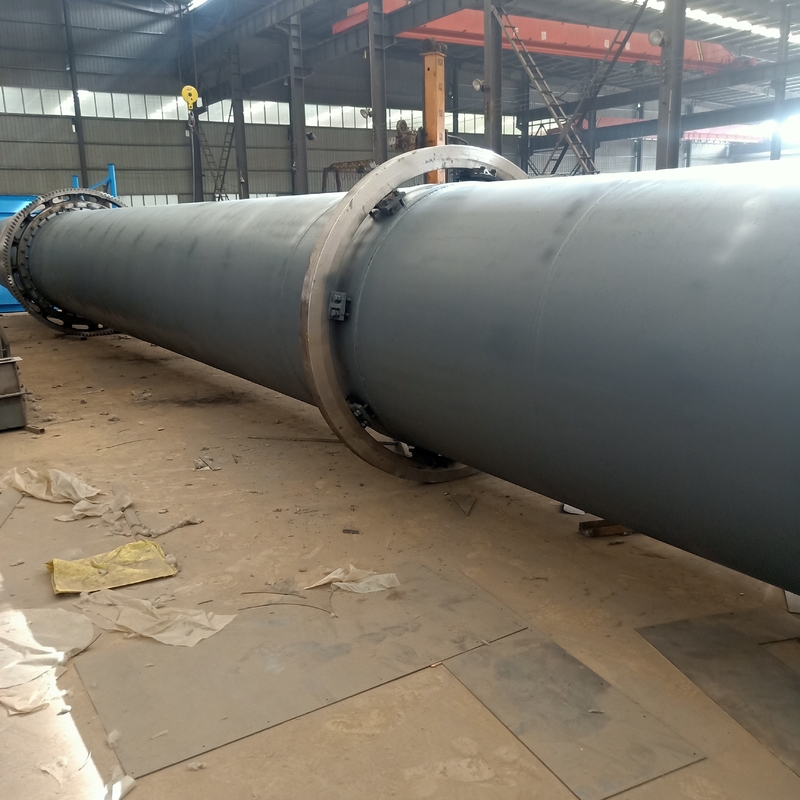

Heat conduction oil steam drum dryer, mainly composed of tube type heat exchanger, heat sources in and out center pipe, rotary drum, feeding and discharger of the machine, induced draft fan, dust collector and distribution cabinets.Wet material enters into the dryer, uniformly distributed in the roller feed plate and the column tube turning, with a full contact with hot conduction oil (steam) tube type heat exchanger, realizing heat transfer, mass transfer (110-250 ℃), constant temperature drying, water vaporization and scattered with the air emissions, gradually reduce the moisture from the material, the material has finished the drying process.
Technical Details:
| Model | Capacity(t/d) | Initial Moisture(%) | Final Moisture(%) | Drying Temperature (℃) | Total Power (kw) |
|---|---|---|---|---|---|
| HYSG1210 | 15-40 | 35-50 | 12-15% | 110-250℃ | 20-28 |
| HYSG1412 | 28-60 | 25-35 | |||
| HYSG1615 | 50-100 | 30-50 | |||
| HYSG1918 | 65-150 | 40-60 | |||
| HYSG2218 | 88-200 | 50-80 | |||
| HYSG2523 | 132-300 | 70-100 | |||
| HYSG2925 | 180-400 | 90-140 |
