Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-337
During the separation of stones, clay, sand, etc. from production, a great deal of organic matter or even entire beets may also be discharged with existing equipment.
The separated mixture leads to increasing problems for the operator, owing to increasingly stringent environmental regulations. With the stone washing and separating drum, the mineral part is discharged clean and free of organic contaminants.
In the washing compartment, the clay is dissolved and taken to the slurry tank with the washing water. The washed stones and sand can easily be set aside for further use. It is even possible to sell the washed stones.
►Stone Washer Introduction:
Stone washer is a main equipment for washing stone and sand.This series stone washer is a special equipment used for cleaning the sand and stone materials in highway,railway,bridge,tunnel construction industries.It is more flexible,productive and energy-saving with higher cleaning ration than other similar products in domestic.
►Performance Feature:
1.Reasonable structure,easy maintenance,high output,low energy consumption,high cleaning rate;
2.Brand-new transmission device,adjustable sink;
3.Efficient and good hydrate effect,steady final product.
►Working Principle:
The electric motor drives the cylinder stone scrubber to rotate,the the stones in the cylinder stone scrubber produce mutual friction.During this process,water is added to create a strong water flow and clean the impurities and foreign body of the stone surface.Then the clean stones will be transported by conveyor to the appropriate location.
►Technical Details:
| Model | Drum dia. (mm) |
Length (mm) |
Rotate Speed (t/h) |
Capacity (t/h) |
Motor power (kw) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (t) |
| GXS1050 | 1000 | 5000 | 22-24 | 50-80 | 11 | 6212 | 1150 | 1250 | 4.3 |
| GXS1250 | 1200 | 5000 | 18-23 | 70-110 | 15 | 6250 | 1360 | 1400 | 5.5 |
| GXS1570 | 1500 | 7000 | 18-23 | 100-160 | 22 | 7820 | 1660 | 1750 | 8.3 |
| GXS1870 | 1800 | 7000 | 16-22 | 180-250 | 30 | 7880 | 1920 | 2210 | 13.5 |
| GXS2080 | 2000 | 8000 | 16-22 | 200-350 | 37 | 9500 | 2230 | 2460 | 17.8 |
| GXS2280 | 2200 | 8000 | 15-20 | 280-500 | 45 | 9600 | 2440 | 2650 | 23.6 |

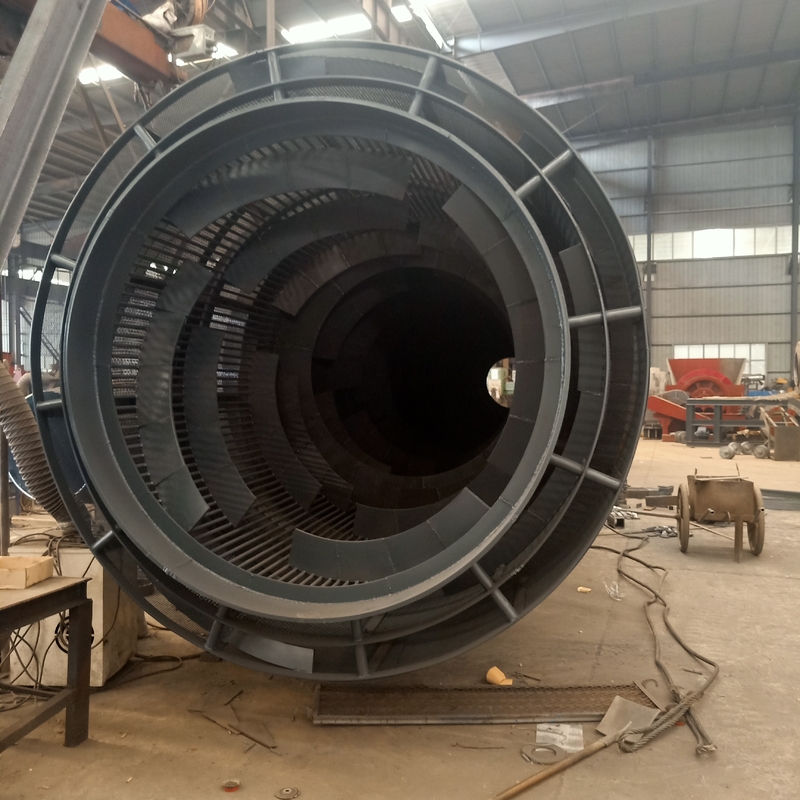

The washing compartment is covered with a rubber lining or alloy lining. The lining is designed for long- lasting, hard-wearing operation. A drum stone separator for separating stones and gravel is integrated with the drum. At the end of the drum stone washer and separator, a lifting wheel made of perforated sheeting or a simple overflow can be installed.
