Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-336

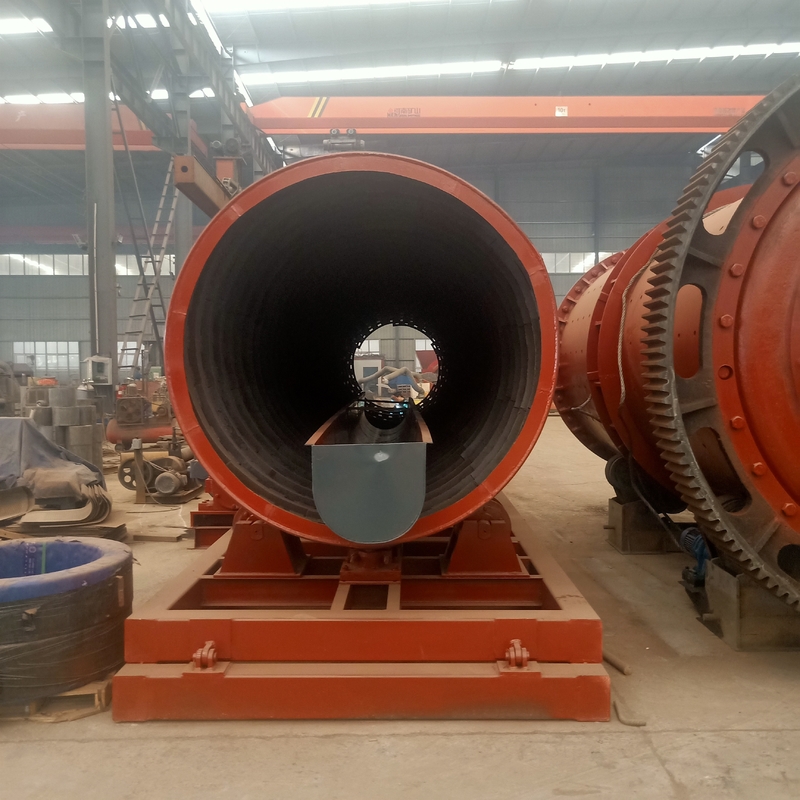

►Cylinder Stone Washer Introduction:
Cylinder stone washer is a main equipment for washing stone and sand.This series stone washer is a special equipment used for cleaning the sand and stone materials in highway,railway,bridge,tunnel construction industries.It is more flexible,productive and energy-saving with higher cleaning ration than other similar products in domestic.
►Performance Feature:
1.Reasonable structure,easy maintenance,high output,low energy consumption,high cleaning rate;
2.Brand-new transmission device,adjustable sink;
3.Efficient and good hydrate effect,steady final product.
►Working Principle:
The electric motor drives the cylinder stone scrubber to rotate,the the stones in the cylinder stone scrubber produce mutual friction.During this process,water is added to create a strong water flow and clean the impurities and foreign body of the stone surface.Then the clean stones will be transported by conveyor to the appropriate location.
►Technical Details:
| Model | Drum dia. (mm) |
Length (mm) |
Rotate Speed (t/h) |
Capacity (t/h) |
Motor power (kw) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (t) |
| GXS1050 | 1000 | 5000 | 22-24 | 50-80 | 11 | 6212 | 1150 | 1250 | 4.3 |
| GXS1250 | 1200 | 5000 | 18-23 | 70-110 | 15 | 6250 | 1360 | 1400 | 5.5 |
| GXS1570 | 1500 | 7000 | 18-23 | 100-160 | 22 | 7820 | 1660 | 1750 | 8.3 |
| GXS1870 | 1800 | 7000 | 16-22 | 180-250 | 30 | 7880 | 1920 | 2210 | 13.5 |
| GXS2080 | 2000 | 8000 | 16-22 | 200-350 | 37 | 9500 | 2230 | 2460 | 17.8 |
| GXS2280 | 2200 | 8000 | 15-20 | 280-500 | 45 | 9600 | 2440 | 2650 | 23.6 |
