Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-305

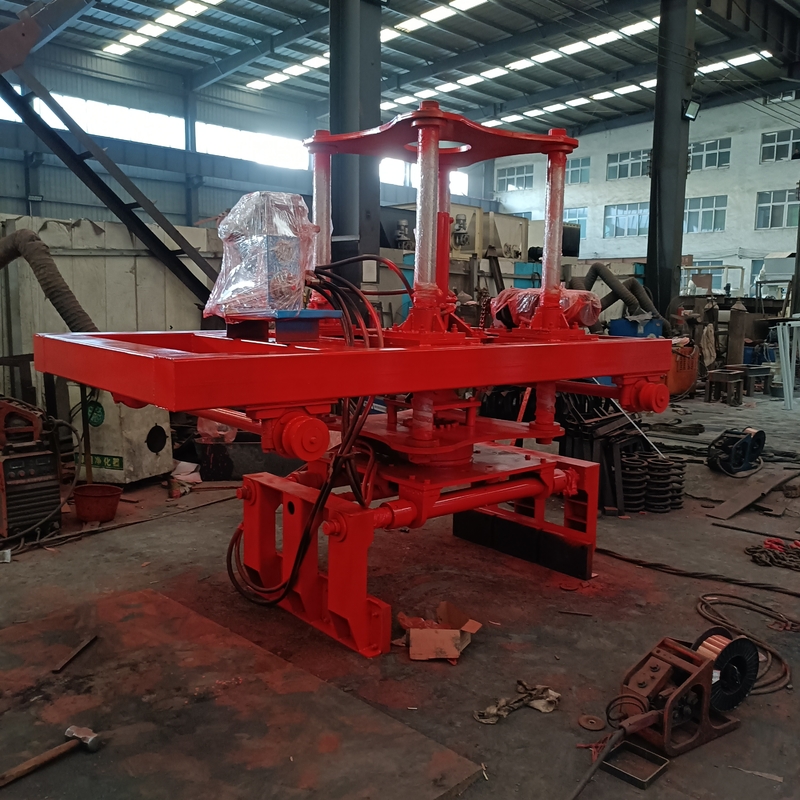

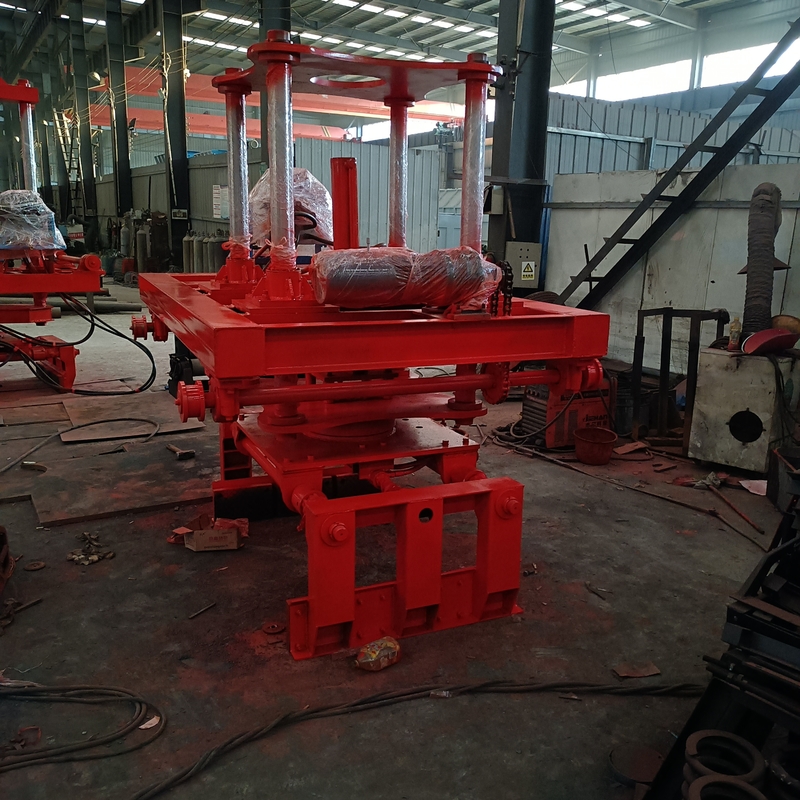

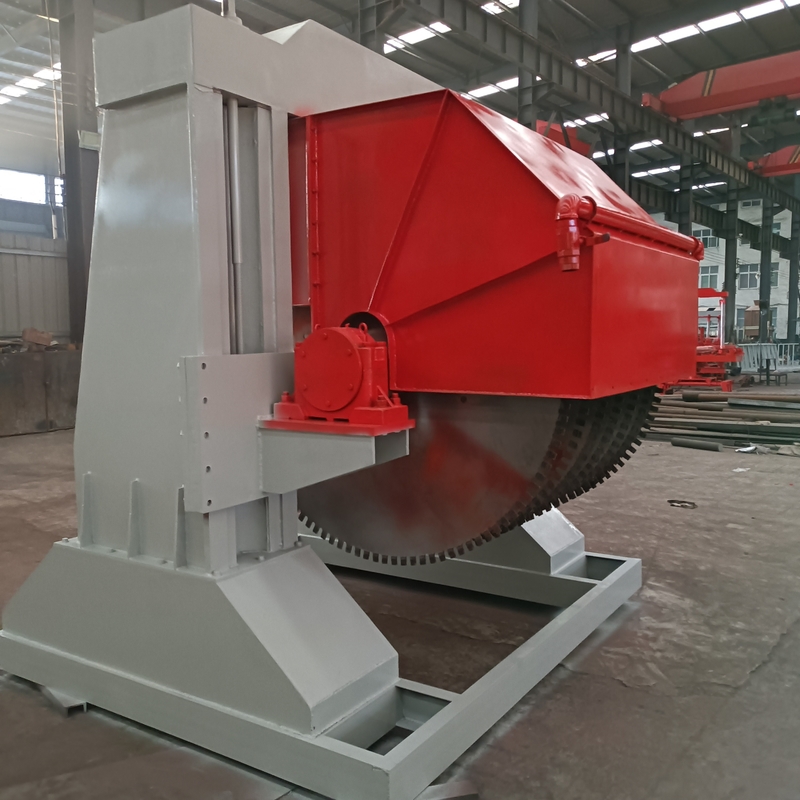

Stone Quarry machine fits for limestone, sandstone, tufa, Vulcanic and Calcareous stone blocks cutting.
•Specially to cut at the same time both vertically and horizontally for obtaining the same size of blocks in all part with the same height.
• Stone blocks ready to be directly used in construction industry.
• Possible to directly extract thin slabs on the quarry
• Running by electricity or connected with diesel generator
• High productive and cost saving
Technical Data
| Max cutting length | 2000mm |
| Max. cutting thickness | 630mm |
| Max cutting width | 1100mm |
| Blade diameter | 940-1600mm |
| ater consumption | 12m3/h |
| Weight | 5800kg-15600kg |
| Overall dimension | 9400x5300x5700mm |
| Blade Number | 8Xφ1200+8Xφ1600mm |
