Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-303

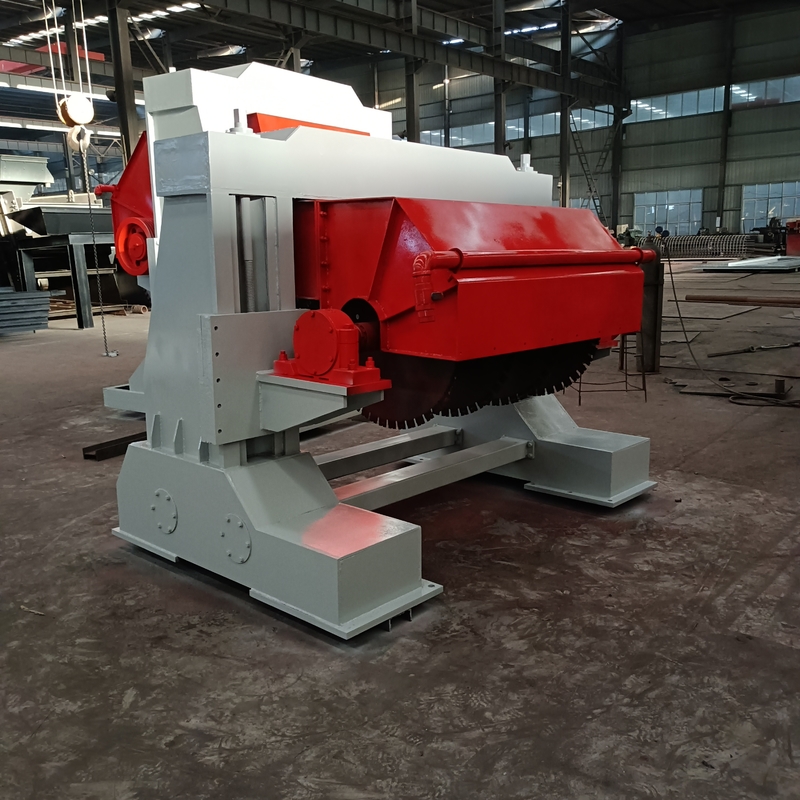

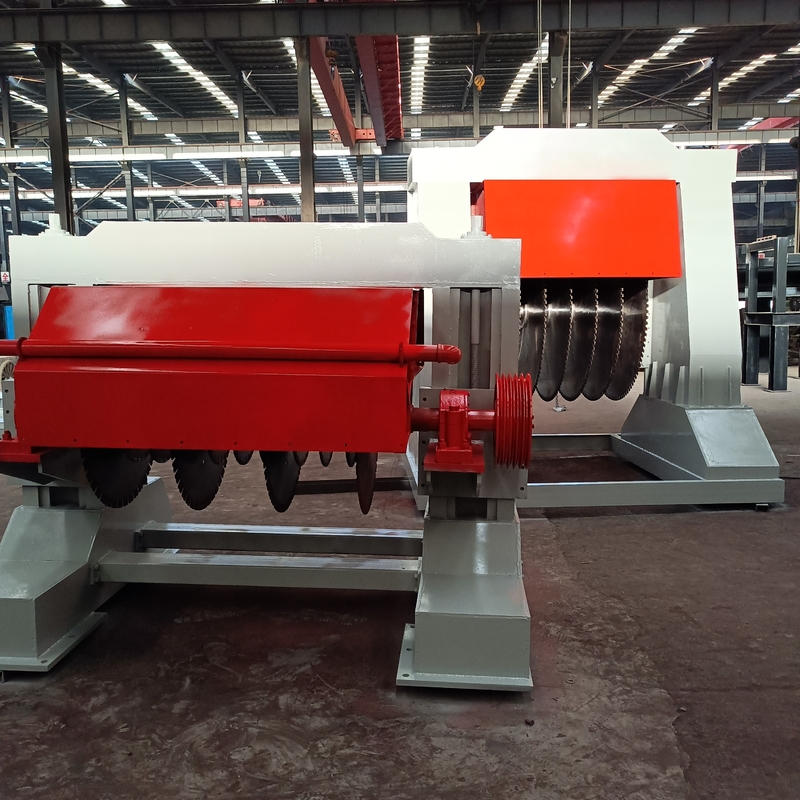

Multi blade granite cutting machine with PLC automation with time control is a highly productive large production 90° perfect size cutting machine with auto timer stop and start and variable speed frequency for cutting control. Another name for the machine multi-blade stone cutting machine; which is a type of machinery used in the stone processing industry for cutting granite slabs into smaller pieces. As the name suggests, this machine is equipped with multiple blades that move in a synchronized manner to cut the granite into desired sizes and shapes.
The machine consists of a sturdy frame and a conveyor belt that carries the granite slabs through the cutting area. The blades are mounted on a horizontal shaft and positioned at a specific distance from each other, which determines the width of the cut.
During operation, the blades of the granite block cutting machine rotate at high speeds, and water is sprayed onto the cutting area to cool and lubricate the blades. Spraying water f the machine helps to prevent overheating and damage to the blades and granite or stone.
Technical Data
| Max cutting length | 2000mm |
| Max. cutting thickness | 630mm |
| Max cutting width | 1100mm |
| Blade diameter | 940-1600mm |
| ater consumption | 12m3/h |
| Weight | 5800kg-15600kg |
| Overall dimension | 9400x5300x5700mm |
| Blade Number | 8Xφ1200+8Xφ1600mm |
