Name: 100-600t/H Rotary Drying Machine Spray Granulation Dryer
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC-268
Price: Negotiable USD
Availability: InStock

Home > products > Rotary Drying Machine >

100-600t/H Rotary Drying Machine Spray Granulation Dryer

600t/H Rotary Drying Machine

100t/H Rotary Drying Machine

600t/H Spray Granulation Dryer

Place of Origin:

China

Brand Name:

Hengyang

Certification:

ISO9001

Model Number:

HC-268

Request A Quote

100-600t/H Rotary Drying Machine Spray Granulation Dryer

Product Details

Condition:

New

Warranty:

TWO YEARS

Type:

Drying

Application:

Dewatering

Capacity:

100-600t/h

Payment & Shipping Terms

Minimum Order Quantity

Price

5500-67800USD/set

Packaging Details

Negotiated

Delivery Time

20-40days

Payment Terms

T/T

Supply Ability

300Sets/month

Stainless Steel Rotary Drum Flaker Dryer With Internal Heating

Get Best Price

Lignit Potassium Humate Rotary Drum Dryer Rotating Continuous Drying Equipment 5000kg/h

Get Best Price

Potassium Fulvate Flake Rotary Drum Dryer For Material Dewatering

Get Best Price

Triple-Pass Rotary Dryer 5-70t/h High Capacity

Get Best Price

86-371-56611369

Contact Now

Product Description

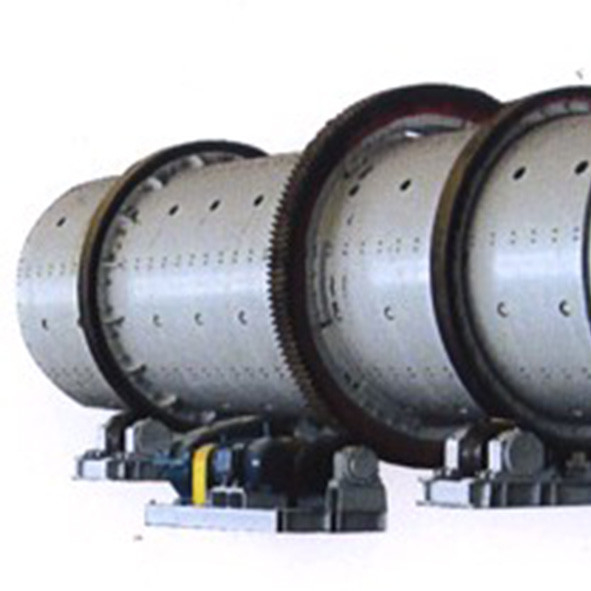

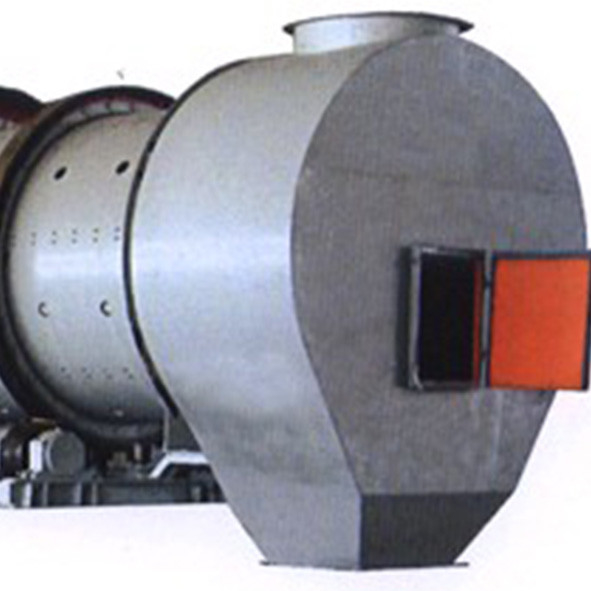

Rotary Spray Granulation Dryer

Introduction

Hengyang rotary spray granulation dryer has integrated the spraying, granulating, and drying into one body. A series of new technologies have been used in the process of its manufacture, such as strengthened bricks, heat transfer, internal classification, internal material returning, internal crushing, and so on. It has features of high productivity, easy operation, energy saving, simple process flow, etc.

Note

1. The moisture of its products is no more than 1.5%.
2. 1-4mm particle size is more than 90%.

Technical Details:

Specification	Output (t/h)	Rotating speed of cylinder(r/min)	Cylinder slope (%)	Inlet temperature	Slurry temperature	Moisture of slurry	Motor power (kw)	Weight (t)
Φ3.0×12	100-150	5.0	1.76	350℃	110℃	25-30%	55	71.0
Φ3.0×13	100-150	5.0	1.76	350℃	110℃	25-30%	55	75.3
Φ4.0×12	150-200	4.1	1.5	350℃	110℃	25-30%	110	105
Φ4.0×14	150-200	4.1	1.5	350℃	110℃	25-30%	130	109.8
Φ3.0×12	200-300	4.1	1.5	450℃	110℃	25-30%	160	151
Φ3.0×12	200-300	4.1	1.5	450℃	110℃	25-30%	185	160
Φ3.0×12	400-500	4.1	1.5	450℃	110℃	25-30%	220	184
Φ3.0×12	400-500	4.1	1.5	450℃	110℃	25-30%	250	196
Φ3.0×12	500-600	4.1	1.5	650℃	115℃	25-30%	280	255
Φ3.0×12	500-600	4.1	1.5	650℃	115℃	25-30%	315	265
