Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-261

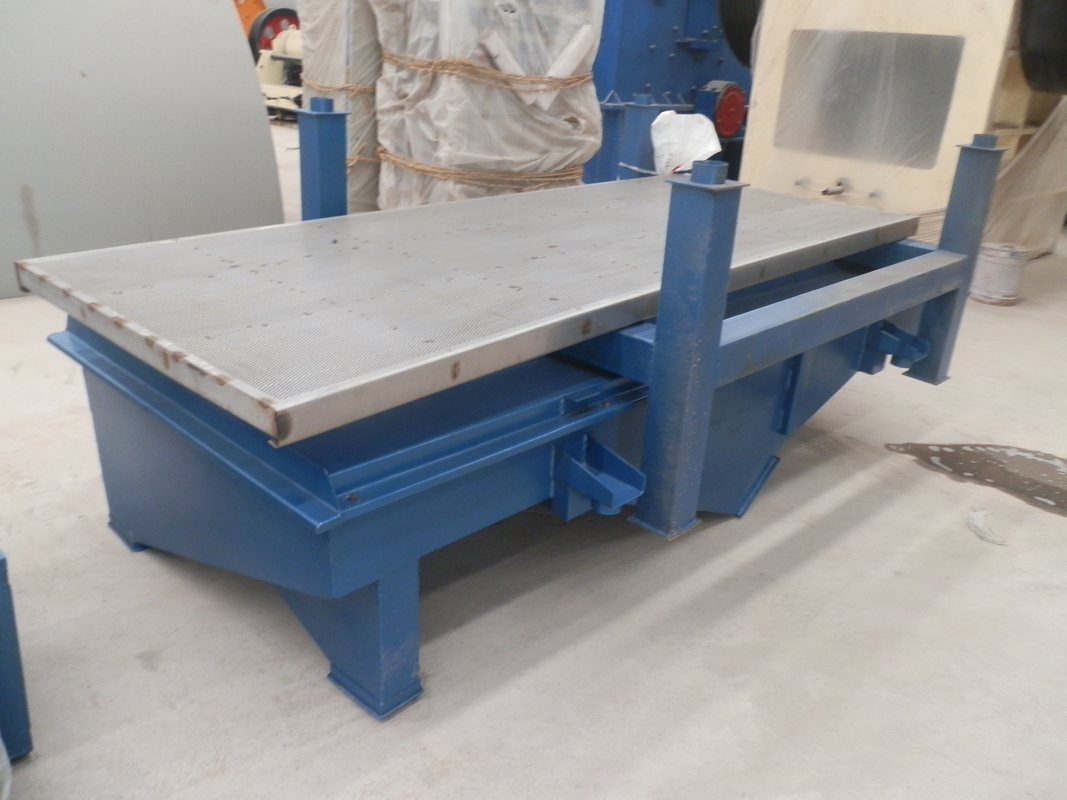

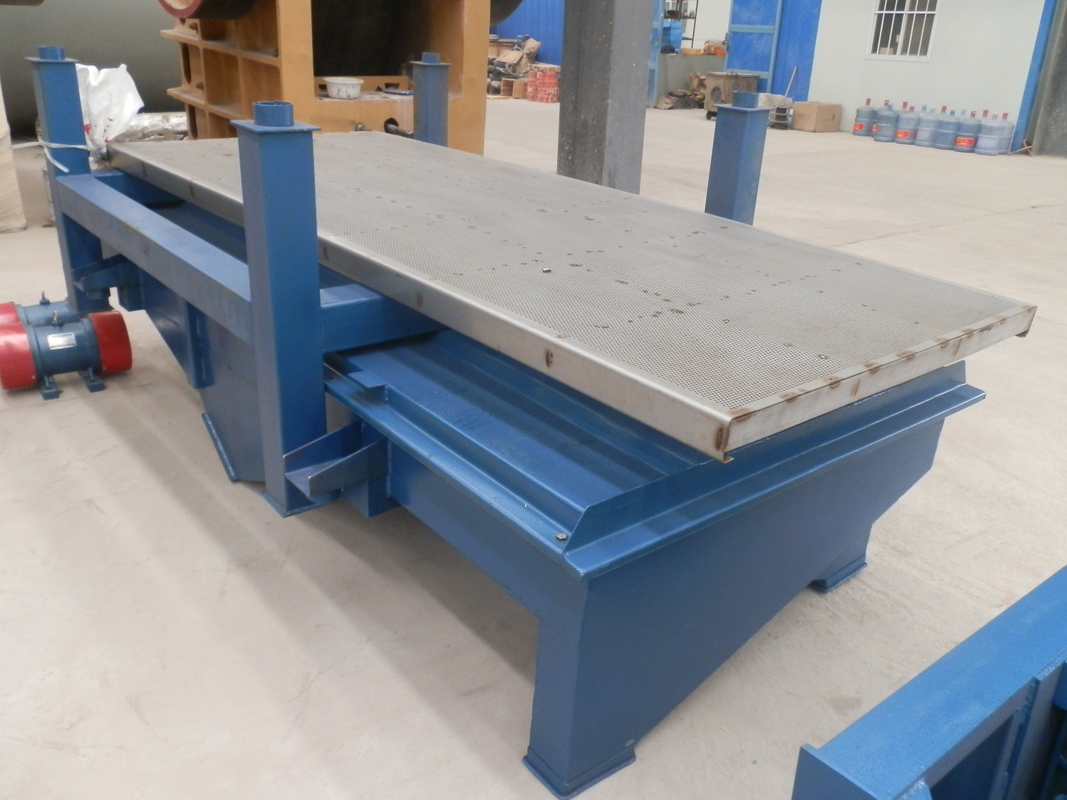

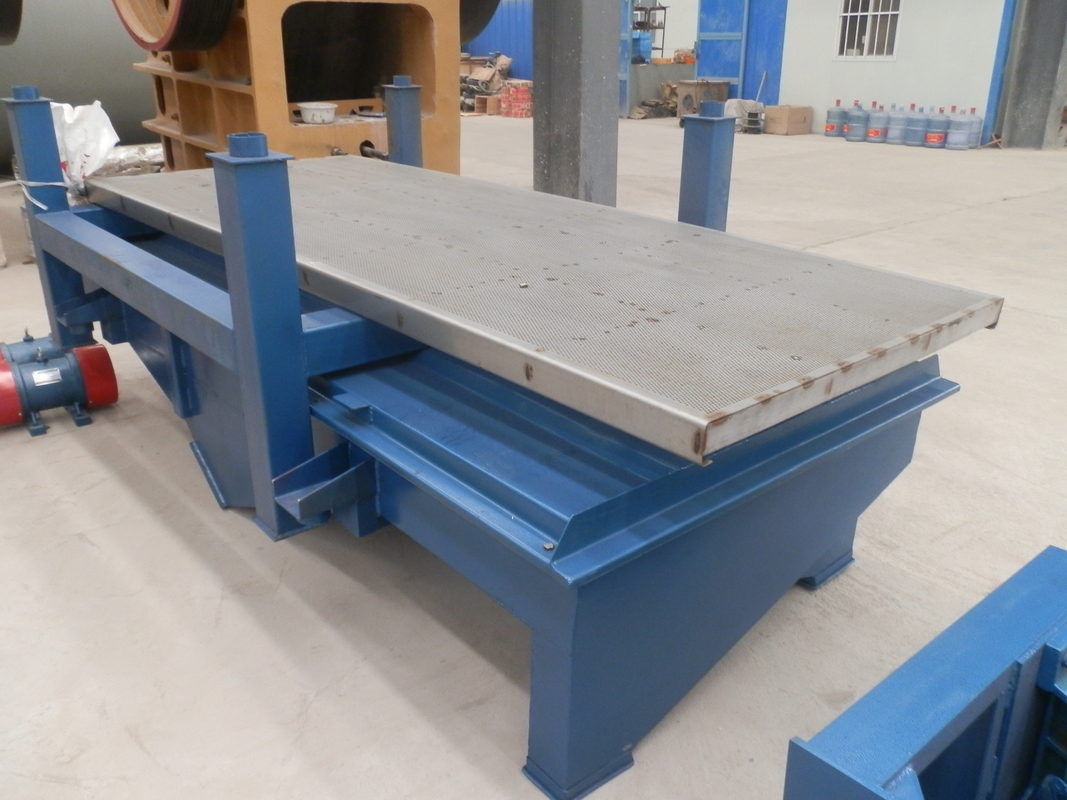

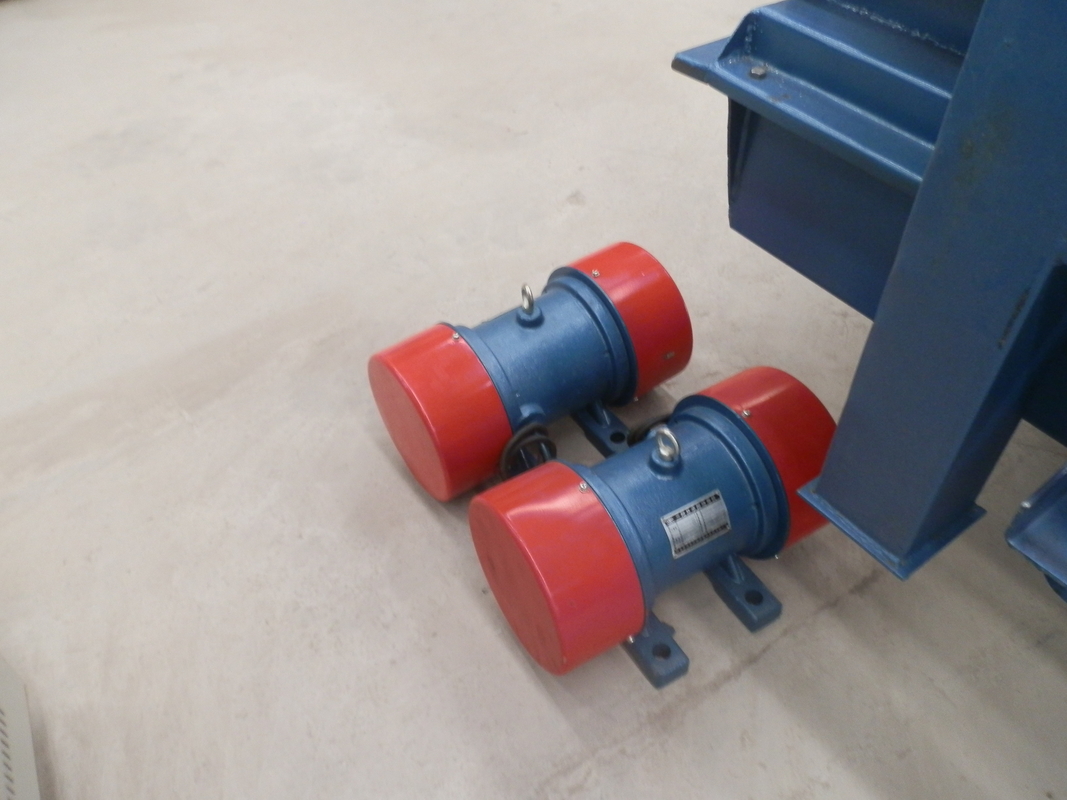

The model uses vibration motor as vibration source, the sieved materials are jumped and moved in the straight movement at the same time. The materials are uniformly entered into entrance, then they go through the screen to separate the materials with different sizes, which was discharged from different gates. It is suitable for low consuming, high output and simple structure, easily maintain all-closed structure, no powder dispersed, automatic discharge.
Features of linear vibrating screen separator
1. Can reach a maximum six-layer screen machine
2. Used for the coarse screening with large production output
3. Accord with ISO9001:2008
4. Voltage as request of your local market
linear vibrating screen separator Technical parameter
| Model | Material granularity (mm) |
Angle | Amplitude | Layer | Power (KW) | Dimension (mm) |
| ZX520 | 0.074-10 | 1-7 degree | 3-4.5mm | 1-6 | 2*(0.37-0.75) | 500*2000 |
| ZX525 | 2*(0.37-0.75) | 500*2500 | ||||
| ZX1020 | 2*(0.55-1.10) | 1000*2000 | ||||
| ZX1025 | 2*(0.55-1.10) | 1000*2500 |
| Chemical industry | resin pigment, medicine, grease, fire-extinguishing agent, rubber and plastic |
| Grinding material, glass, ceramic industry | silica sand, alumina, grinding material, glass powder, refractory material |
| Food industry | sugar, salt, alkali, gourmet powder, starch, milk powder, bean milk, yeasts must, pollen, food additive |
| Paper-making industry | whitish soil slush, black and white fluid, filling fluid, waste fluid and paper-making fluid |
| Mine industry | quartz sand, ore, titanium oxide, zinc oxide |
| Mechanical industry | casting sand, powder metallurgy, electromagnetic material and metal powder |
| Others | carbon black, light calcium, additive, pearl powder, catalyst |
