Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-260

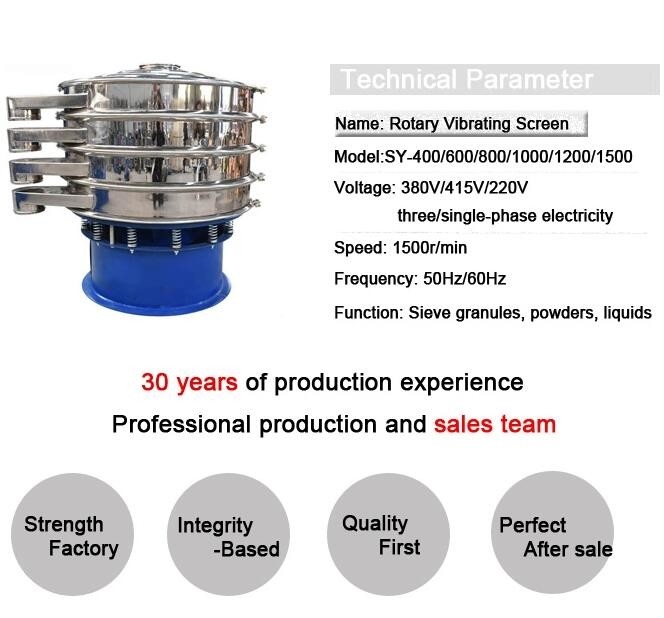

Rotary vibrat screen classifier is a high precision fine powder screening machine. The working principle of vibrating screen is that the unbalanced weight dropper installed on the top and bottom ends of motor to change the rotation motion of motor to horizontal,vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removing impurities.
Ultra-Fine Metal Powder Vibrating Screen technical parameters:
| Model | Power(kw) | Effective diameter for sieve surface | Packing Size(MM) | Layer |
| SY-600- | 0.25 | Φ600 mm | 800×800×680 | 1--5 |
| SY-800 | 0.55 | Φ800mm | 900×900×780 | |
| SY-1000 | 0.75 | Φ970mm | 1160×1160×880 | |
| SY-1200 | 1.1 | Φ1170mm | 1360×1360×980 | |
| SY-1500 | 1.5 | Φ1470mm | 1850×1850×1130 | |
| SY-1800 | 2.2 | Φ1770mm | 2200×2200×1360 |
