Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-250

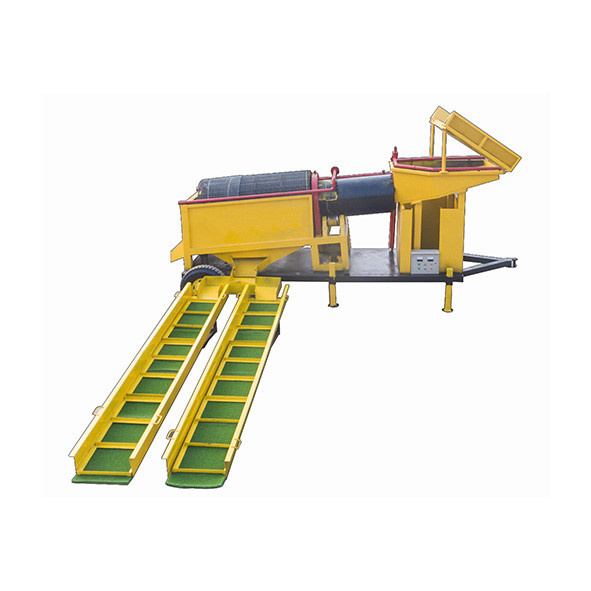

The mining trommel screen is to filter out the big stones in the original ore and wash away the mud in the original ore. We offer a variety of models, including mini trommel screen that can be operated by one person for small-scale mines and heavy-duty washing plant for big-scale mines. We have passed ISO and CE international certification, safety is guaranteed.
Tromml Screen Washing Machine Features
Tromml Screen Washing Machine Technical Details:
| Model | VICM50 | VICM100 | VICM150 | VICM200 | VICM400 |
| Size | 7*2*3m | 8.5*2.5*3.5 | 9.8*3*4m | 12*3.2*4.5 | 15*3.5*5m |
| Capacity | 50-100 tph | 100-150tpp | 150-250 tph | 260-400tph | 400-450 tph |
| Power | 24kw | 55kw | 75kw | 120kw | 200kw |
| Feeder Hopper | 2*2.2m | 3*2.7 | 3.8*3m | 4.5*3.5m | 6*4m |
| Sluice box | 1*2m (2pcs) | 1*4m (2pcs) | 1*6m (3pcs) | 1*6m (5pcs) | 1*6m (7pcs) |
| Water power | 7.5kw | 25kw | 45kw | 85kw | 150kw |
| Clay Scrubber | 1*2m | 1.1*2.2m | 1.3*2.5m | 1.5*2.5m | 2*2.5m |
| Trommel Screen | 1.2*3m | 1.5*3.2m | 2*4m | 2*5.5m | 2*7m |
| Recovery Rate | 98% | 98% | 98% | 98% | 98% |
