Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-169
Adopting foreign technology, Rotary Drum Quarry & River Sand Pebble Washing Screen have single layer or double layers circular sieve to classify two to three kind different grades sand and stone which should be clearly deslimed . It is mainly used for washing ore before beneficiation operation system, and improving the ore grade for next processing step. It can be used for manganese ore, iron ore, limestone, tungsten, and silica ore, and etc.

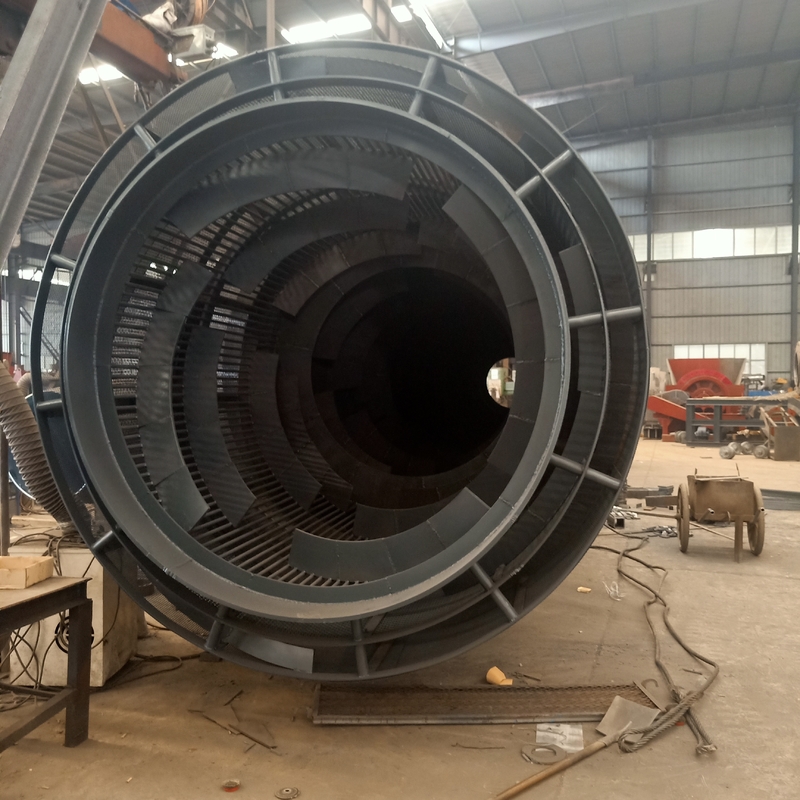

Rotary Drum Quarry & River Sand Pebble Washing Screen Pictures:
Rotary Drum Quarry & River Sand Pebble Washing Screen Application:
Pebbles, rocks, disintegrate clays, Agglomerates, soft oxides etc.
Rotary Drum Quarry & River Sand Pebble Washing Screen Technical Details:
| Model Item |
Cylinder Diameter (mm) |
Cylinder length (mm) |
Rotation speed (r/min) |
Feeding size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Weight (t) |
Dimensions (mm) |
| HY1542 | 1500 | 4200 | 10-13 | <60 | 40-60 | 15 | 5.2 | 7000×1750×1800 |
| HY1842 | 1800 | 4200 | 10-12 | <80 | 60-80 | 18.5 | 8.5 | 7700×2100×2600 |
| HY2042 | 2000 | 4200 | 9-11 | <110 | 100-150 | 22 | 13.9 | 8800×2500×2900 |
| HY2560 | 2500 | 6000 | 9-11 | <160 | 150-200 | 30 | 19.5 | 10500×2890×3300 |
