Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-247
In all rotary dryers the speed of advancement of the material -- and hence its retention time in the dryer -- is determined by the rotational speed of the drum as well as its angle of inclination. By varying these parameters, the residence time can be controlled accurately. The amount of material in the drum at any one time -- the drum fill -- is relatively low as a percentage of the cross-sectional area or total volume of the drum. They are typically of the order of 8 to 15 percent of the total volume of the drum.

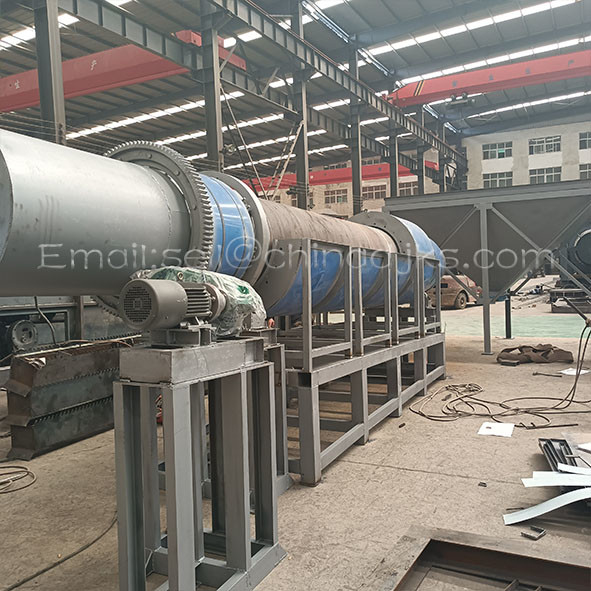

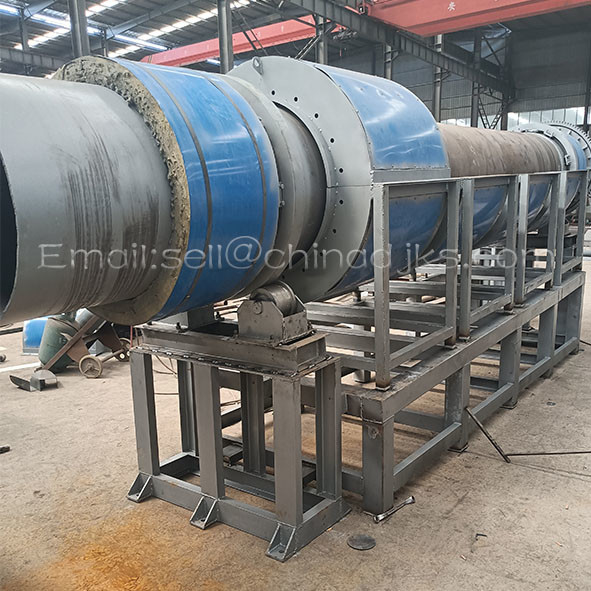

Electric Thermal Rotary Dryer are continuous processing machines that can effectively process feeds that are classified as powders, granules, nonfriable agglomerates and large solid particles.
Electric Thermal Rotary Dryer Application:
Electric Thermal Rotary Dryer Videos:
Electric Thermal Rotary Dryer Technical Details
| Type | Spec | Dia of Roll | Length of roll | Gradient | Speed(rpm) | Weight(t) | Motor Power(kw) | Heating Power (KW) |
| HY600 | φ 0.6× 8 | φ 600 | 8m | 3-5 | 8 | 5.1 | 4/6p | 45 |
| HY800 | φ 0.8× 10 | φ 800 | 10 m | 3-5 | 7.2 | 6.9 | 4/6p | 60 |
| HY1000 | φ 1.0× 10 | φ 1000 | 10m | 3-5 | 6.73 | 7.5 | 5.5/6p | 90 |
| HY1200 | φ 1.2× 12 | φ 1200 | 12m | 3-5 | 5.8 | 13.1 | 11/6p | 120 |
| HY1500 | φ 1.5× 12 | φ 1500 | 12m | 3-5 | 4.8 | 22.3 | 15/6p | 150 |
| HY2200 | φ 2.2× 14 | φ 2200 | 14m | 3-5 | 3.2 | 52.8 | 30 | 200 |
| HY2400 | φ 2.4× 18 | φ 2400 | 18m | 3-5 | 3 | 73.3 | 37 | 300 |
| HY2800 | φ 2.8× 24 | φ 2800 | 24m | 3-5 | 2.59 | 97 | 75 | 400 |
Note: Technical Details datas will change according to different working conditions.
