Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-202

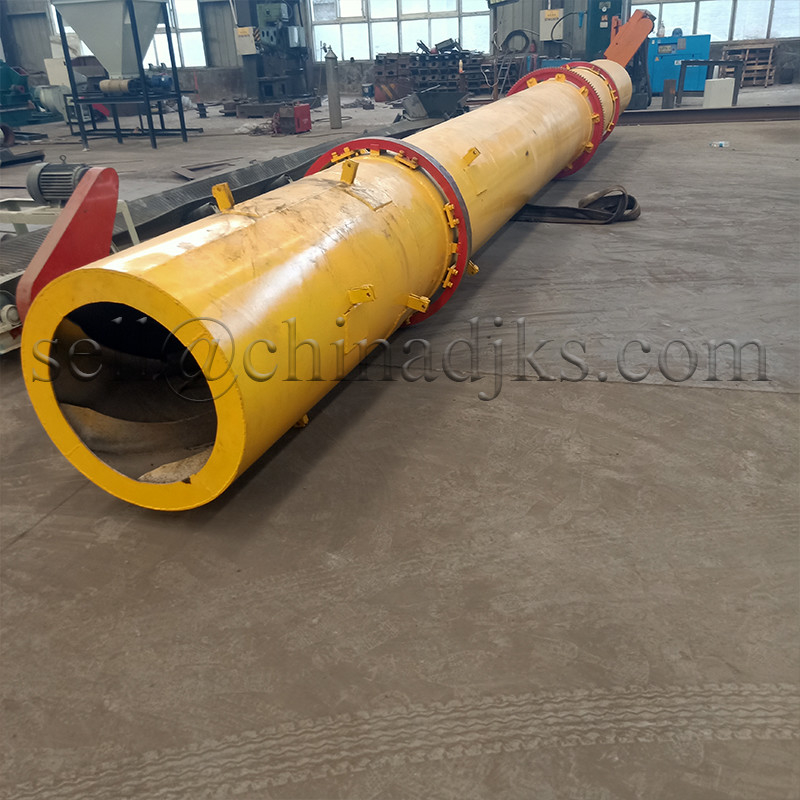

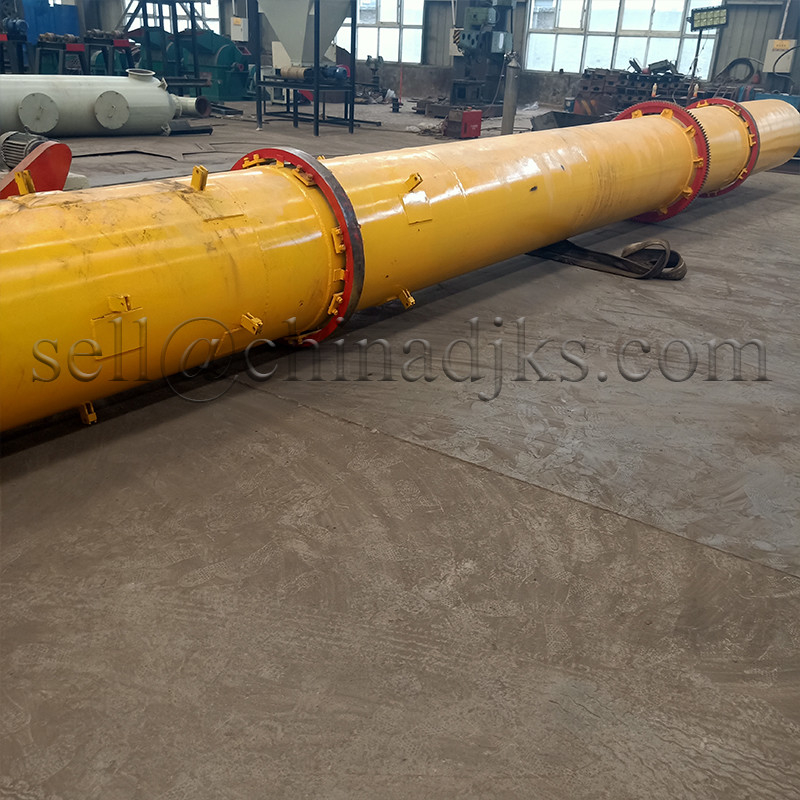

Pasture (Elephant Grass) Rotary Drum Dryer
Hengyang pasture rotary drum dryer has a large capacity, high efficiency, and energy-saving. It is used in conjunction with a clean hot air stove, which is especially suitable for drying high moisture materials such as forage, grass, silage, amaranth, etc. It can quickly dry the moisture of the forage from 65-75% to 14-18%. The temperature of the forage is always lower than 50°C during the whole process. The dried hay grass completely retains the nutrients of the forage and has a bright color and a clear fragrance.
Pasture drying technology has matured. Not only can we dry according to the output required by customers, but also to ensure the palatability and nutrients of the dry pasture all-year-round under the premise of more environmental protection, energy-saving, and economy.
Pasture (Elephant Grass) Rotary Drum Dryer Features:
Pasture (Elephant Grass) Rotary Drum Dryer Technical Details:
| Model | Input (t/h) | Output (t/h) | Evaporation Capacity (t/h) | Initial Moisture (%) | Final Moisture (%) | Drying Temperature (℃) | Total Power (kw) | Total Weight (kg) | Plant Area (m²) |
|---|---|---|---|---|---|---|---|---|---|
| HHY1409 | 1.53 | 1.08 | 0.45 | 40±5% | 15% (Adjustable) | 280±30 | 34 | 22000 | 5m*15m |
| HHY1615 | 2.89 | 2.03 | 0.85 | 45 | 28000 | 6m*22m | |||
| HHY2008/3 | 5.2 | 3.67 | 1.53 | 78 | 40000 | 8m*16m | |||
| HHY2010/3 | 6.63 | 4.68 | 1.95 | 90 | 45000 | 8m*18m | |||
| HHY2210/3 | 7.24 | 5.11 | 2.13 | 105 | 50000 | 8m*20m | |||
| HHY2510/3 | 8.91 | 6.29 | 2.62 | 125 | 60000 | 10m*20m | |||
| HHY2512/3 | 10.5 | 7.41 | 3.09 | 140 | 68000 | 10m*24m | |||
| HHY2912/3 | 12.14 | 8.57 | 3.57 | 155 | 76000 | 10m*24m |
