Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-198
Rotary Drum Stone Washing and Screening Machine
Stonewash /washing is a textile manufacturing process used to give a newly manufactured of contruction materials company in (or worn out) appearance. Stone Washing also helps to make sure stone and quarry use in building materials cleaning.

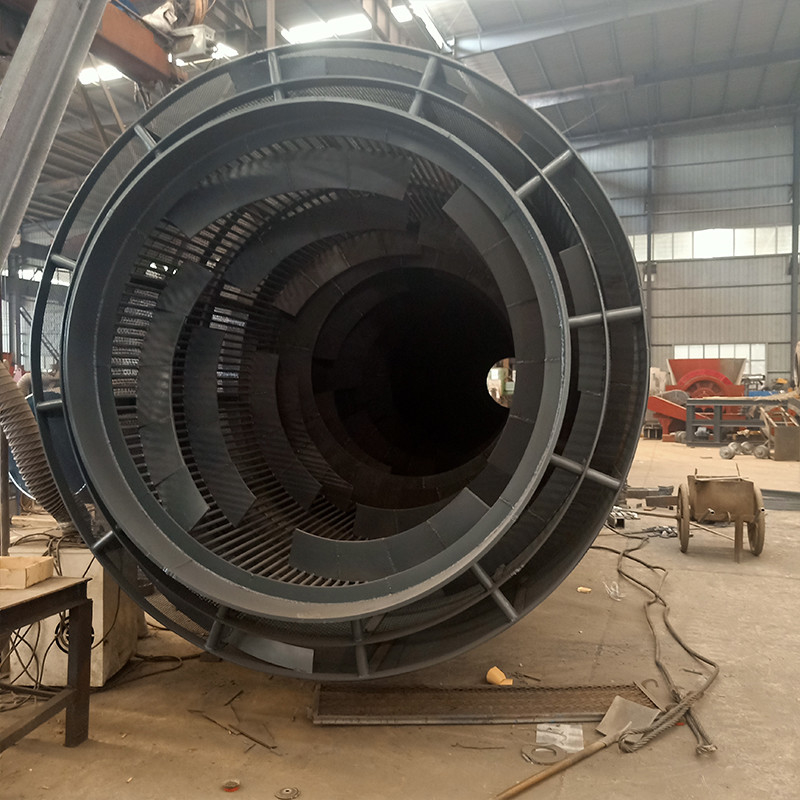

Rotary Drum Stone Washing and Screening Machine Pictures:
Rotary Drum Stone Washing and Screening Machine Application:
Pebbles, rocks, disintegrate clays, Agglomerates, soft oxides etc.
Rotary Drum Stone Washing and Screening Machine Technical Details:
| Model Item |
Cylinder Diameter (mm) |
Cylinder length (mm) |
Rotation speed (r/min) |
Feeding size (mm) |
Capacity (t/h) |
Motor Power (kW) |
Weight (t) |
Dimensions (mm) |
| HY1542 | 1500 | 4200 | 10-13 | <60 | 40-60 | 15 | 5.2 | 7000×1750×1800 |
| HY1842 | 1800 | 4200 | 10-12 | <80 | 60-80 | 18.5 | 8.5 | 7700×2100×2600 |
| HY2042 | 2000 | 4200 | 9-11 | <110 | 100-150 | 22 | 13.9 | 8800×2500×2900 |
| HY2560 | 2500 | 6000 | 9-11 | <160 | 150-200 | 30 | 19.5 | 10500×2890×3300 |
