Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-202

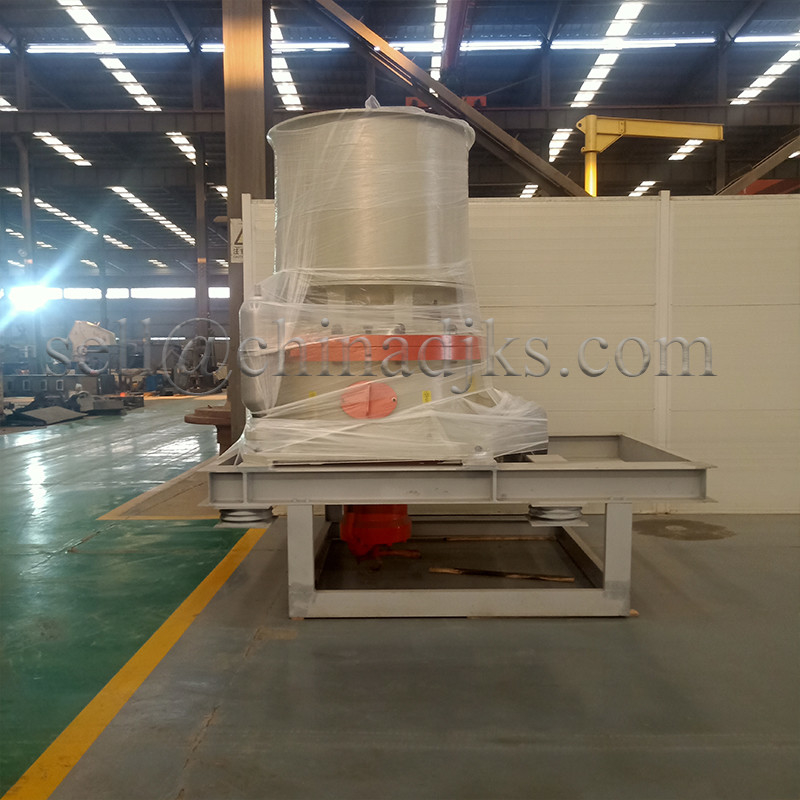

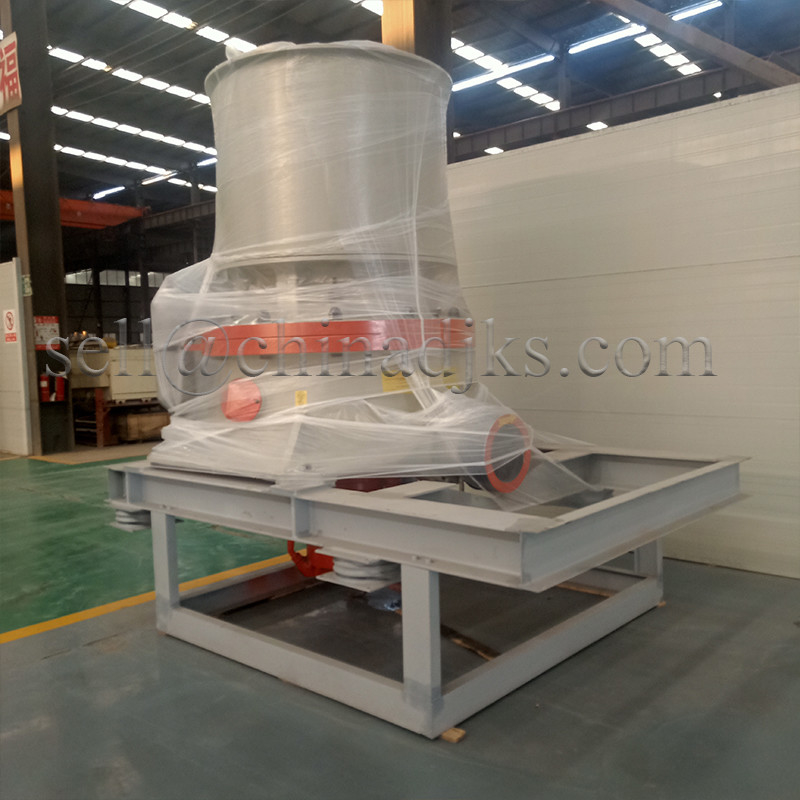

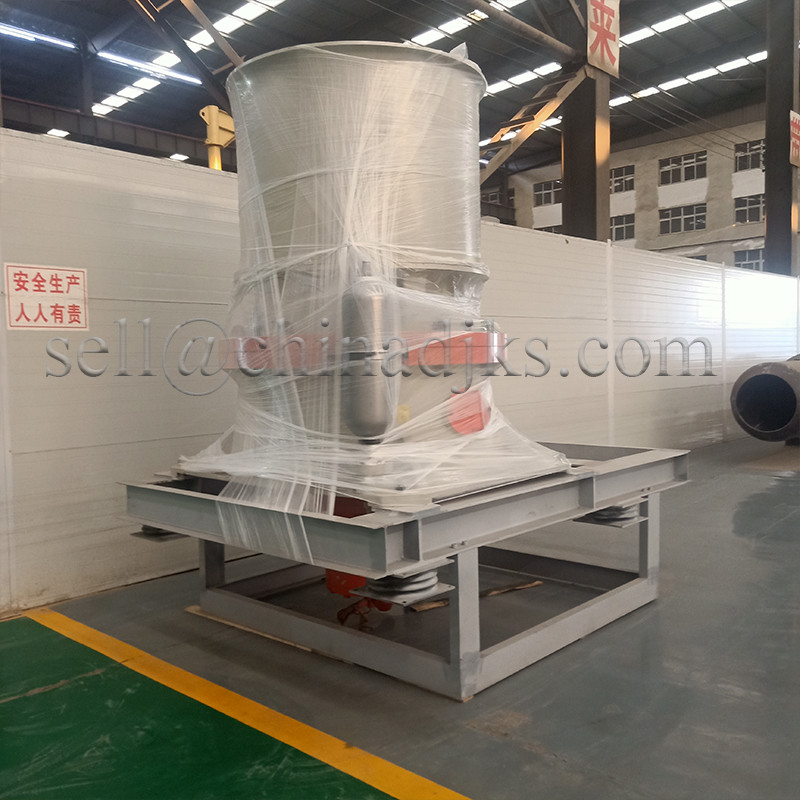

Our cone crusher product group is designed especially for the hardest material, cone crushers are
one of the best choices for crushing river gravel, basalt and granite, along with abrasive
materials in the mining industry. The working principle of cone crushers is to break the material by compression, by squeezing it between its walls, which are completely covered with resistant mantle and a bowl liner. It has longer life than other crushers thanks to its long life wear parts.
Hydraulic Cone Crusher General Specifitions and Futures:
– Inner design protected against dust
– Option to use automatic or manual
– Easy setting possibilities
– Easy intervention and maintenance
– Operation from the control panel, stop, lubrication, hydraulic system and inlet width control
Hydraulic Cone Crusher Tehcnical Details:
| Model | Cavity Size (Coarse/Fine) | Minimum Discharging Size (mm) | Max Feeding Size (mm) | Capacity (t/h) | Weight (t) | Power (kw) |
| HP-160 | C | 13 | 150 | 120-240 | 13 | 160 |
| F | 6 | 76 | 55-180 | |||
| HP-220 | C | 13 | 225 | 150-430 | 18 | 220 |
| F | 6 | 86 | 90-260 | |||
| HP-315 | C | 13 | 290 | 190-610 | 26 | 315 |
| F | 6 | 100 | 108-320 | |||
| HP-400 | C | 16 | 320 | 230-700 | 33 | 400 |
| F | 8 | 110 | 145-430 |
