Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-201
Rotary Drum Screen Instruction

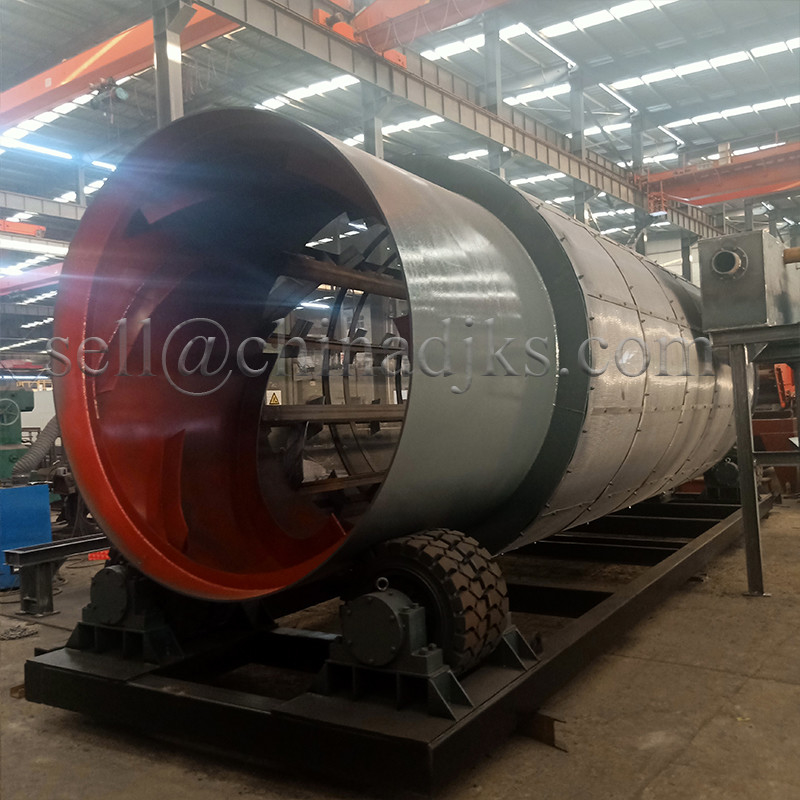

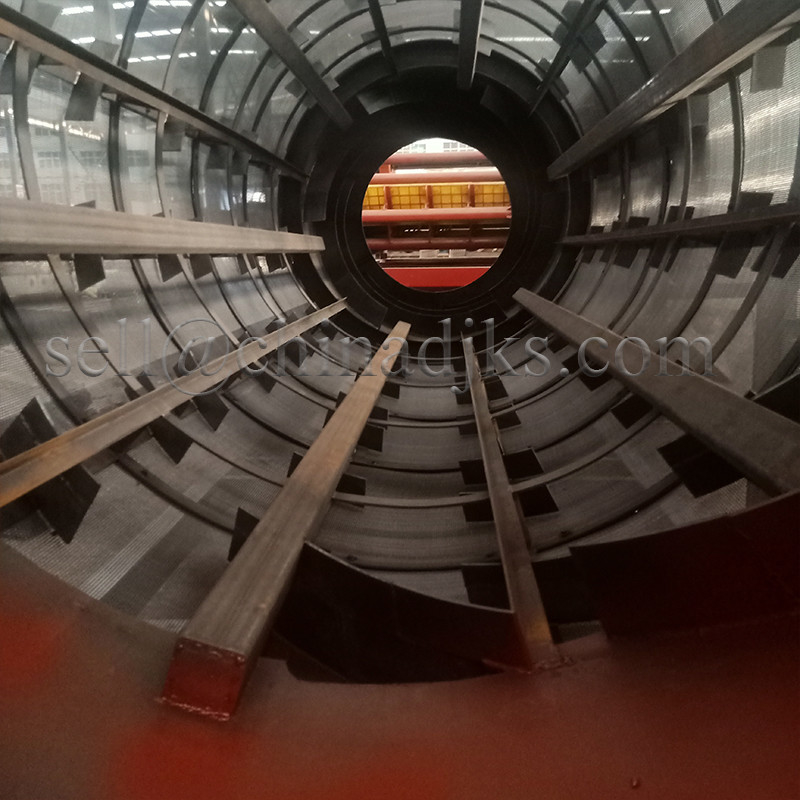

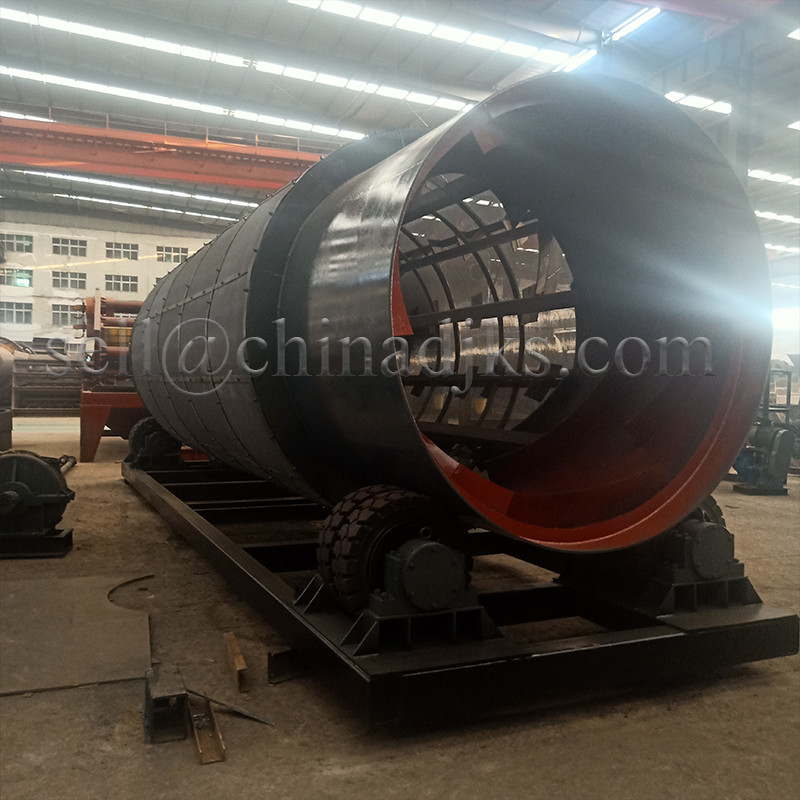

Rotary Drum Rotary drying Trommel Screenis consist of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes. The different materials fall into different hoppers and then are sent to different finished product stacks by manpower or belt conveyor.
Rotary Drum Screen Application:
Rotary Drum Screen Technical Details:
| Model | Trommel Dia. | Trommel Length | Screen Segment No. | Aperture Size | Power | Inclined Angle | Handling Capacity |
| DYT600 | φ600 | 2-4m | 1-2 | 5-35mm | 2.2-3kw | 0-7° | 1-5m³/h |
| DYT800 | φ800 | 2-5m | 1-3 | 5-40mm | 3-5.5kw | 0-7° | 2-8m³/h |
| DYT1000 | φ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5kw | 0-7° | 5-10m³/h |
| DYT1200 | φ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11kw | 0-7° | 8-15m³/h |
| DYT1500 | φ1500 | 3-10m | 1-5 | 5-60mm | 7.5-15kw | 0-7° | 20-50m³/h |
| DYT2000 | φ2000 | 4-12m | 1-5 | 5-75mm | 7.5-18.5kw | 0-7° | 50-80m³/h |
| DYT2500 | φ2500 | 5-12m | 1-6 | 5-90mm | 11-18.5kw | 0-7° | 80-150m³/h |
