Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-189

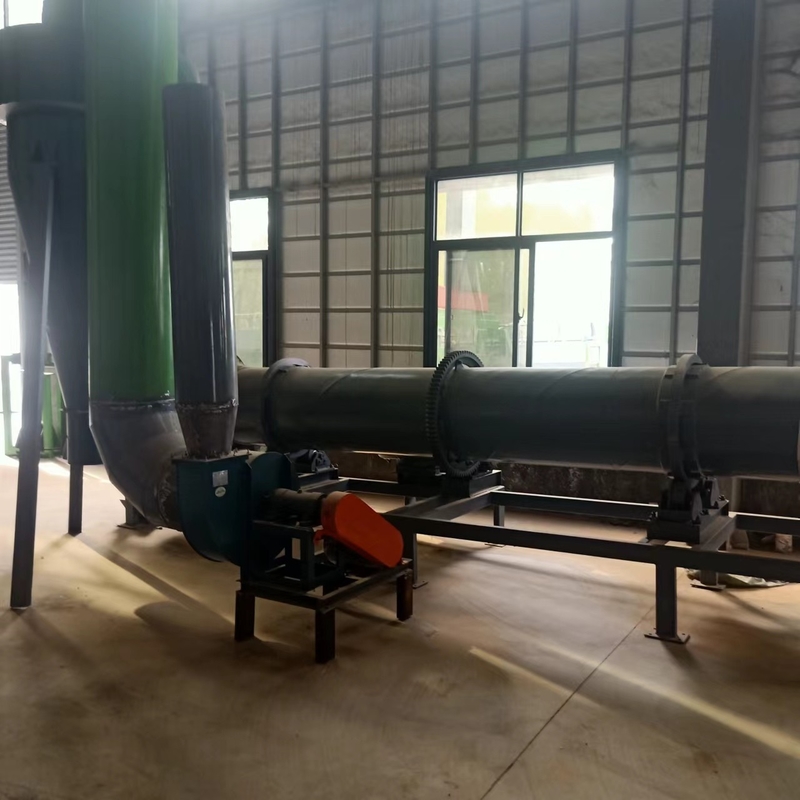

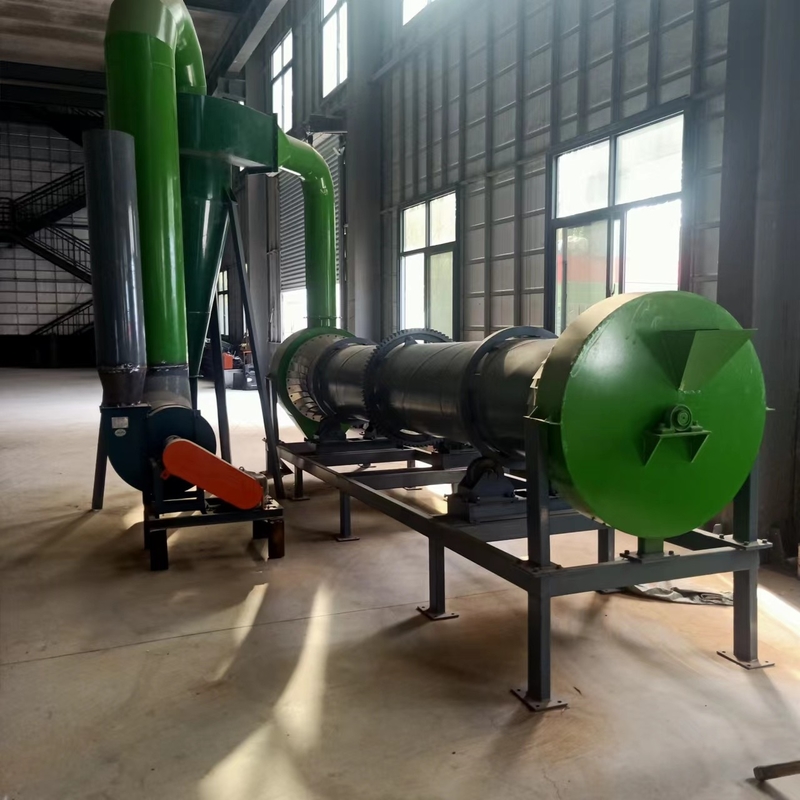

Organic Fertilizer Rotary Drum Dryer Applications and Features
Rotary drum dryer is mainly used to produce compound fertilizer and dry a certain temperature and granularity of fertilizer. On the other hand, it also can be used for drying other materials.
The Angle and distribution of Jan plate of this machine is designed reasonable, and it is reliable in performance.
So its high thermal efficiency, uniform drying, cleaning fewer materials, convenient use and maintenance.
Organic Fertilizer Rotary Drum Dryer Main Technical Parameters
| Model | Shell | Prod capacity | Inlet temp ofhot air | Outlet temp ofhot air | Motor | Decelevators model | |||||
| Inner diam | length | inclination | Rotation speed | Model | Power | Rotation Speed | |||||
| mm | mm | 0 | r/min | t/h | °C | °C | |||||
| ZG12120 | 1200 | 12000 | 2-5 | 4.7 | 2-2.5 | 150-250 | 60-80 | Y160M-4 | 7.5 | 1460 | ZQ350 |
| ZG15120 | 1500 | 12000 | 2-5 | 5.0 | 4-6 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ400 |
| ZG15150 | 1500 | 15000 | 2-5 | 5.0 | 5-7 | 150-250 | 60-80 | Y160L-4 | 15 | 1440 | ZQ500 |
| ZG18150 | 1800 | 15000 | 2-5 | 3.9 | 7-10 | 150-250 | 60-80 | Y200L1-6 | 18.5 | 970 | ZQ500 |
| ZG20200 | 2000 | 20000 | 2-5 | 3.9 | 8-14 | 150-250 | 60-80 | Y200L2-6 | 22 | 970 | ZQ650 |
| ZG22220 | 2200 | 22000 | 2-5 | 3.2 | 12-16 | 150-250 | 60-80 | Y250M-6 | 37 | 980 | ZQ750 |
| ZG24240 | 2200 | 24000 | 2-5 | 3.0 | 14-19 | 150-250 | 60-80 | Y280S-6 | 45 | 970 | ZQ850 |
