Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-186

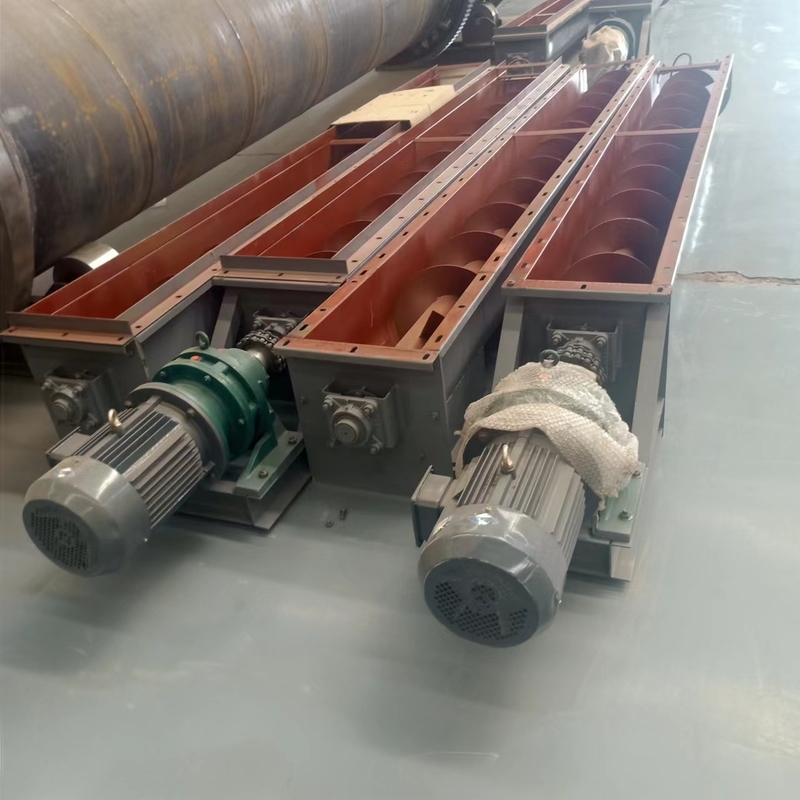

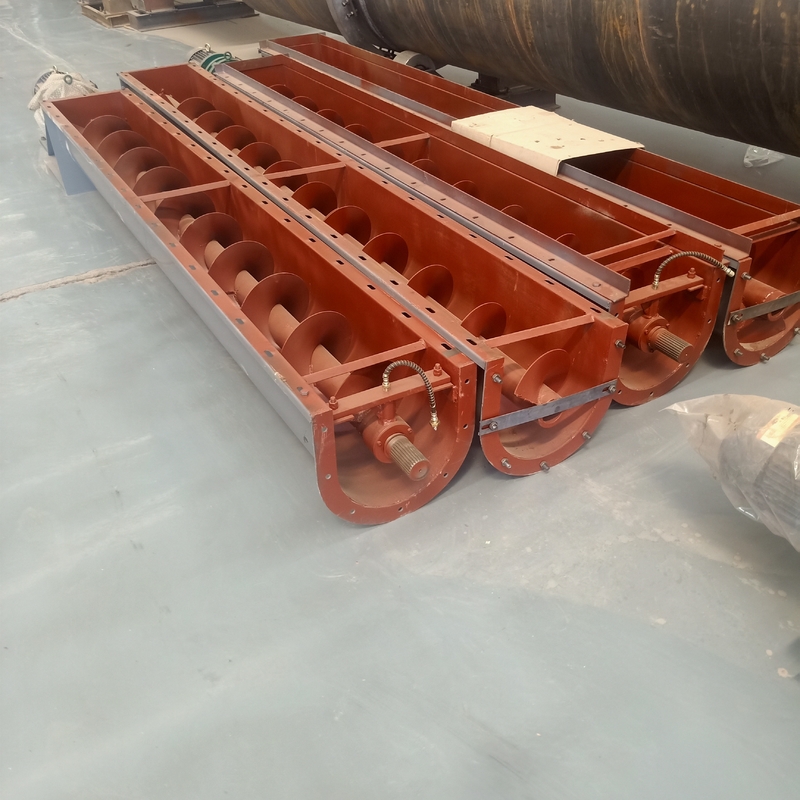

Hengyang U-Type screw conveyor is performance proven industrial bulk material handling equipment for over 10 years. hengyang U-Type screw conveyors move wet or dry materials either horizontally, on an incline or vertically. Hengyang screw conveyors can be used to conveying material, feed material, distribute material, collect material or mixing material. Depends on different applications, with special cover and gasket, they can be made as dust free or weather proof.
Hengyang also provides customize U-Type screw conveyor with heat or cool while conveying material. Hengyang screw conveyor design is clean and compact for less footprint and no return run is required. To make it easy to support and install, Hengyang Screw Conveyors fit in robust cramped quarters. Hengyang screw conveyor engineering team is available to solve your bulk material handling problems by offering customized design with ruggedly built and accurately manufactured conveyers.
Screw Conveyor Technical details:
| Model | Screw Diameter Inch/mm |
Screw Length Ft/m |
Capacity (Tons/Hour) |
Motor Power (Kw) |
Screw Speed (Rpm) |
|---|---|---|---|---|---|
| HY10B-24 | 10/250 | 24/7.3 | 15 | 5.5(7.5HP) | 50-60 |
| HY10B-36 | 10/250 | 36/11 | 15 | 5.5(7.5HP) | |
| HY10B-48 | 10/250 | 48/14.6 | 15 | 11(15HP) | |
| HY12B-24 | 12/315 | 24/7.3 | 20 | 5.5(7.5HP) | 50-60 |
| HY12B-36 | 12/315 | 36/11 | 20 | 7.5(10HP) | |
| HY12B-48 | 12/315 | 48/14.6 | 20 | 11(15HP) | |
| HY14B-24 | 14/350 | 24/7.3 | 30 | 7.5(10HP) | 50-60 |
| HY14B-36 | 14/350 | 36/11 | 30 | 11(15HP) | |
| HY14B-48 | 14/350 | 48/14.6 | 30 | 15(20HP) | |
| HY16B-24 | 16/400 | 24/7.3 | 45 | 11(15HP) | 50-60 |
| HY16B-36 | 16/400 | 36/11 | 45 | 15(20HP) | |
| HY16B-48 | 16/400 | 48/14.6 | 45 | 18.5(25HP) | |
| HY18B-24 | 18/450 | 24/7.3 | 55 | 11(15HP) | 50-60 |
| HY18B-36 | 18/450 | 36/11 | 55 | 15(20HP) | |
| HY18B-48 | 18/450 | 48/14.6 | 55 | 22 (25HP) | |
| Remarks:According to clients requirement, Hengyang Provide customized equipment. | |||||
