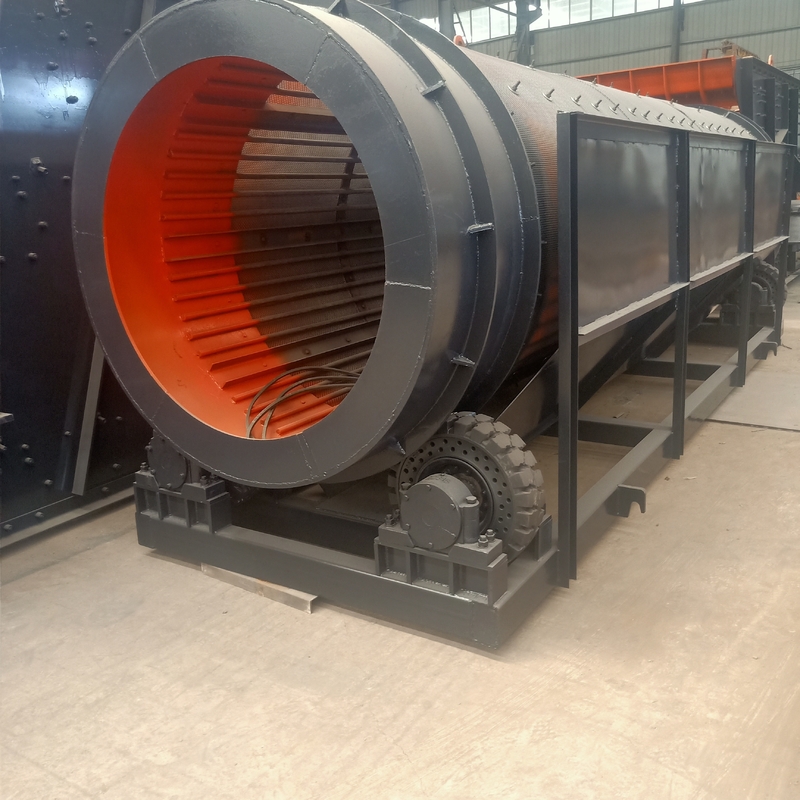

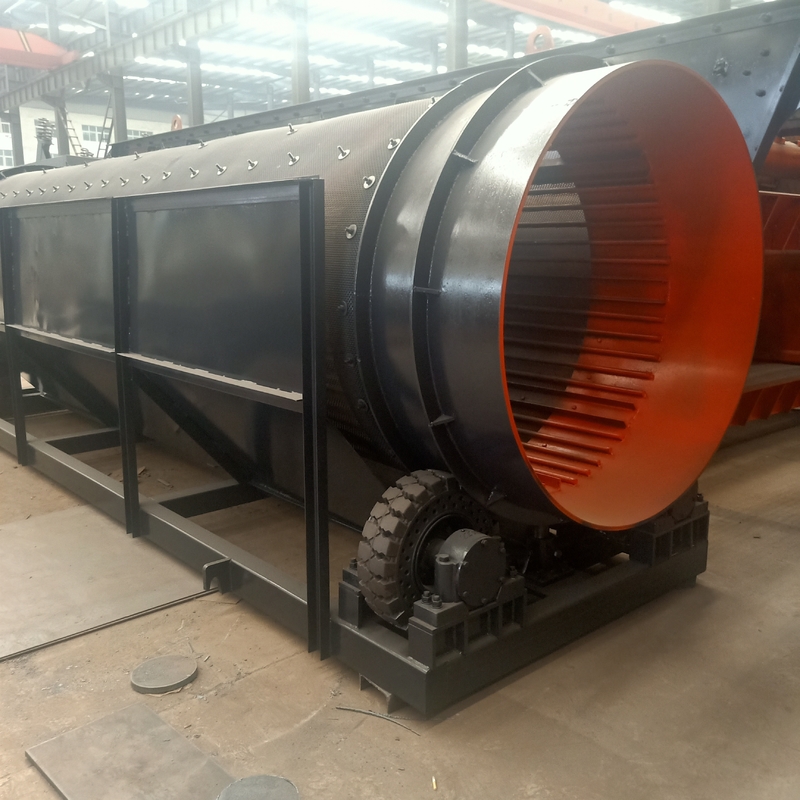

Rubber Tyre Driving Rotary Screen For Material Separating

The rotary drum screen, or rotary sifter, is part of the equipment usually found in municipal and industrial water treatment processes.

Rotary Drum Screen or Rotary Sifter Features:

• body with flow channel and intake, outflow, overflow, and cleaning valves
• motor-driven slotted drum
• catcher
• cover

Rotary Drum Screen or Rotary Sifter Technical Details:

The Rotary Drum Screen or Rotary Sifter family of products ensures efficiency of from 30 to 2000 m3/h, depending on the size of the drum (diameter of 1200 mm or 3000 mm, length of 2500 mm to 9000 mm) and the size of the slots.

The Rotary Drum Screens will fish and remove the scum, short fiber and suspended matter from the water intake, and squeeze them dry and press them for dehydration before discharging. It is suitable for high precision treatment, wastewater treatment with small gate gap and shallow channel depth.

The drive equipment of the drum fine screen is located on the upper part of the mechanical fine screen wall, and the main materials are stainless steel plates. The power system is motor, and the speed reduction equipment is composed of cycloid reducer reducer and primary chain drive. The transmission system is high efficiency, low noise, stable and reliable operation. The rotating shaft has sufficient compressive strength and bending rigidity to bear the load of bending and torsion together. Moreover, the reducer and chain drive equipment of the dynamic equipment are provided with maintenance covers, which is convenient for maintenance and inspection.

Rotary Drum Screen Detail

Original: Zhengzhou, China

Certification: ISO9001

Price: Negotiable

Material: SUS304/SUS316/Q235

Voltage: 380V 50Hz, the voltage can be as local demand

Payment term: TT

Delivery date: Negotiable

Packing: export standard

Market: Middle East/ Africa/Asia/South America/Europe/North America

Warranty: 1 year

MOQ: 1 set
