Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-197

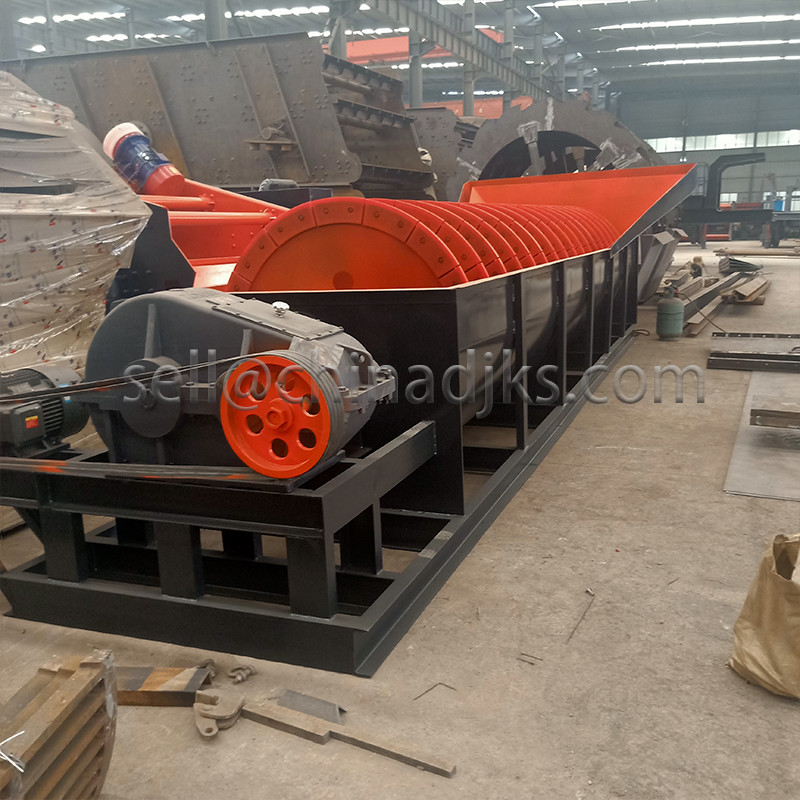

[Introduction]:Classifying equipment takes use of the different sedimentation speed of the solid particle in slurry.
[ Capacity ]:10~1785 t/d
[Improvement]:An automatic elevating apparatus is added to the discharge opening. The scoop in ball mill is eliminated bringing more stable operation.
Spiral Classifier Advantages:
The overflow spiral blade is higher than overflow level, and the overflow spiral center is lower than overflow surface;
The high wire spiral classifier machine is applied in the classification of ore with particle size 0.83-0.15mm
Spiral Classifier Application:

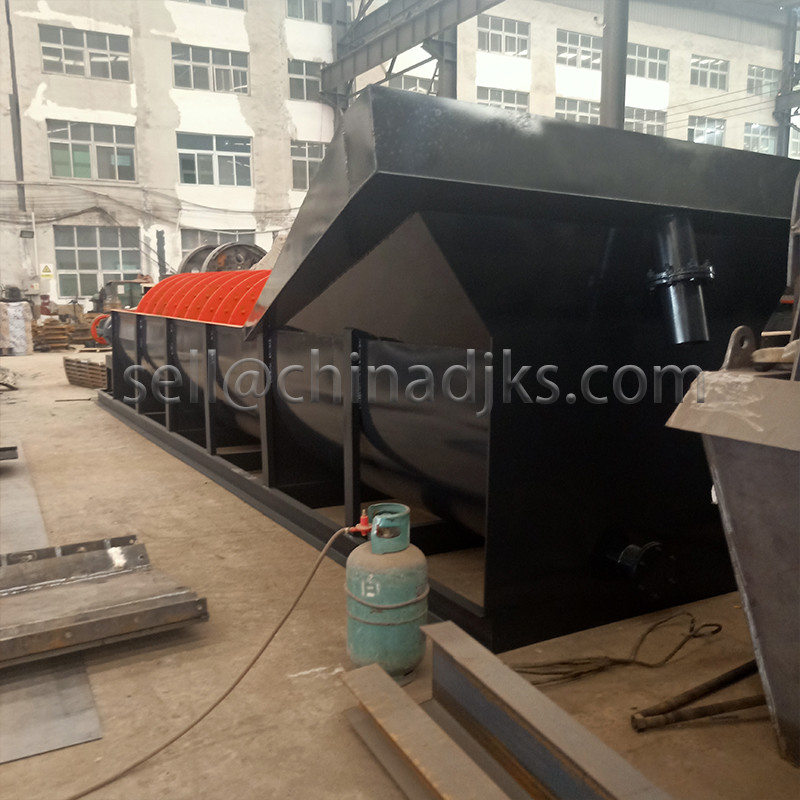

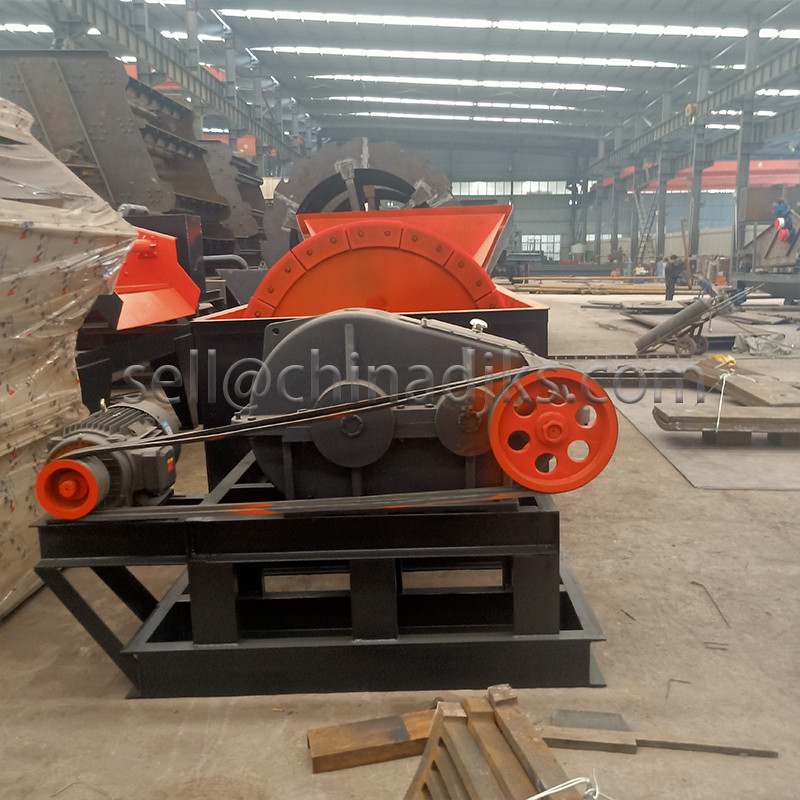

Spiral Classifier Structure:
High spiral classifier machine operation: the grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
Spiral Classifier Technical Details:
| Model | Spiral Dia. | Spiral Speed | Output | Motor Power | Weight | ||
| Circulating Load | Overflow Quantity | Lift Lower | Drive | ||||
| mm | r/min | t/24h | t/24h | kw | kw | t | |
| FG-3 | Φ300 | 8.3-2.2 | 30-80 | 10-30 | 2.2 | 1.1 | 0.67 |
| FG-5 | Φ500 | 8.5-15.5 | 143-261 | 32 | 2.2 | 1.1 | 1.6 |
| FG-7 | Φ750 | 4.5-9.9 | 256-564 | 65 | 2.2 | 3 | 2.83 |
| FG-10 | Φ1000 | 3.5-7.6 | 473-1026 | 85 | 2.2 | 5.5 | 4 |
| FG-12 | Φ1200 | 5,6,7 | 1170-1600 | 155 | 2.5 | 5.5 | 8.54 |
| FG-15 | Φ1500 | 2.5,4,6 | 1140-2740 | 235 | 2.2 | 7.5 | 11.68 |
| FG-20 | Φ2000 | 3.6,5.5 | 3890-5940 | 400 | 3 | 11,15 | 20.45 |
| FG-24 | Φ2400 | 3.64 | 6800 | 580 | 3 | 15 | 25.65 |
| FG-30 | Φ3000 | 3.2 | 11650 | 893 | 4 | 22 | 40 |
