Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-174

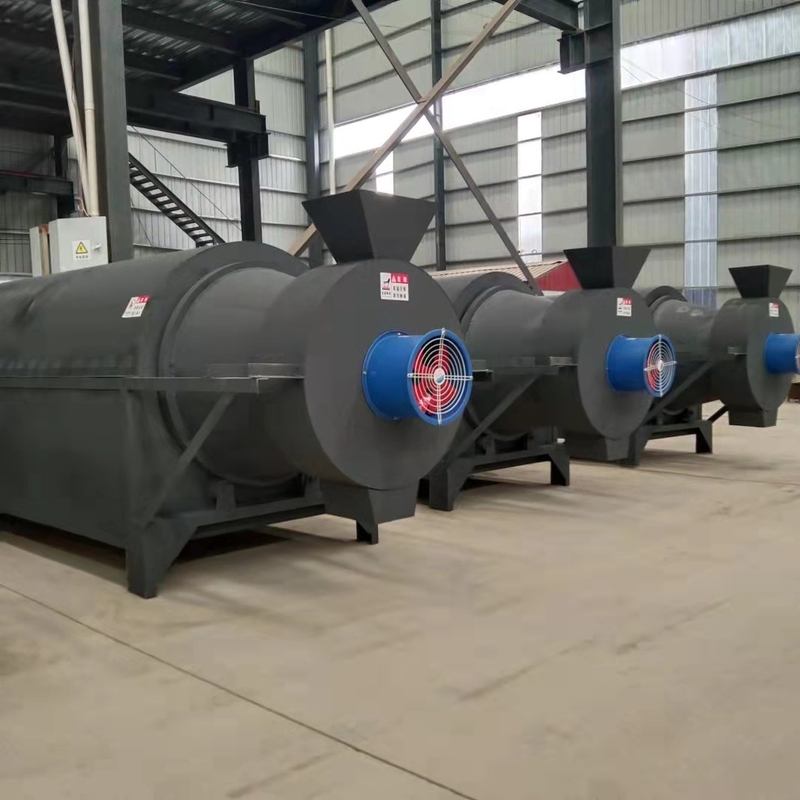

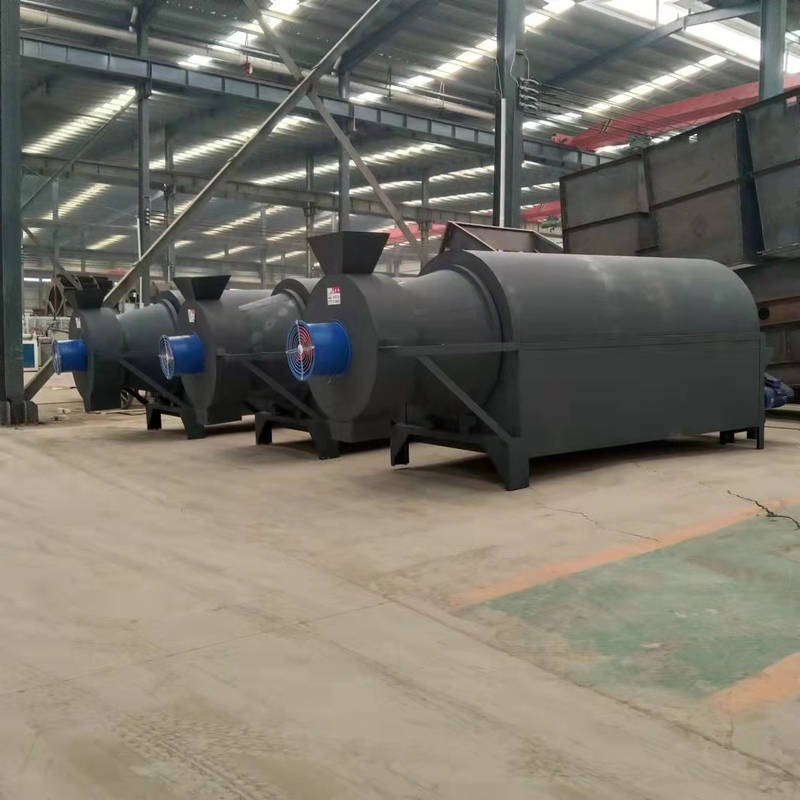

1. The multifunctional Automatic Rotary Frying Oven Dryer is made of a single piece of steel. The main body of the dryer has two parts: dehumidification and dust removal.
2. The main drum is designed with a counter-flow tower internal circulation lifting and dispersing structure.
3. The equipment occupies a small area and is good for drying. The manual labor operation is simple. The heat source can be electric heating, gas, coal, or bio-particle fuel.
Automatic Rotary Frying Oven Dryer Technical Details:
| Electric heating dryer parameters | |||||||
| Dimensions (including fan) | Output (KG) | Drum size (including bell mouth) | Power (KW) | Heating power (KW) | Dehumidifying fan (W) | Chain (root) | Reducer |
| 3000*1000*1450mm | 200 | 800*1800*3mm | 1.5 | 30 | 370 | 12 | / |
| 3800*1000*1450mm | 300 | 800*2600*3mm | 2.2 | 30-40 | 370 | 18 | ZQ200 |
| 4200*1200*1600mm | 500 | 1000*2800*3mm | 3.0 | 40-50 | 370 | 24 | ZQ250 |
| 4800*1500*1700mm | 1000 | 1200*3400*4mm | 4.0 | 60-80 | 550 | 32 | ZQ250 |
| 6000*1800*2100mm | 2000 | 1500*4400*5mm | 7.5 | 80-100 | 750 | 50 | ZQ350 |
| 7800*1800*2100mm | 3000 | 1500*6000*5mm | 11.0 | 120-150 | 1100 | 75 | ZQ350 |
| 9300*2300*2500mm | 5000 | 1800*6600*8mm | 15.0 | 180-200 | 1500 | 120 | ZQ500 |
Automatic Rotary Frying Oven Dryer Application:
Snack food industry: melon seeds, peanuts, cashews, almonds, chestnuts, hazelnuts, pine nuts, walnuts, etc.
Coarse grain processing industry: corn, sorghum, rice, glutinous rice, barley, wheat, tartary buckwheat, mung bean, soybean, red bean, highland barley, flour, etc.
Oil pressing industry: sesame, rapeseed, soybean, peanut, etc.
Condiment industry: pepper, pepper, fennel, cumin.
Pharmaceutical industry: Chinese herbal medicine roasting and processing with good granular fluidity.
Chemical industry: drying and heating chemical raw materials.
Tobacco processing industry: roasting processing.
Feed processing industry: raw materials roasting.
Construction industry: river sand, river mud, and other building materials are dehydrated and dried.
