Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-173
Our machines have been highly recognized by our customers,We have our own special producing engineering for all of our machines,which need much more working and to use much better material on the products,and then make the quality much better than others.

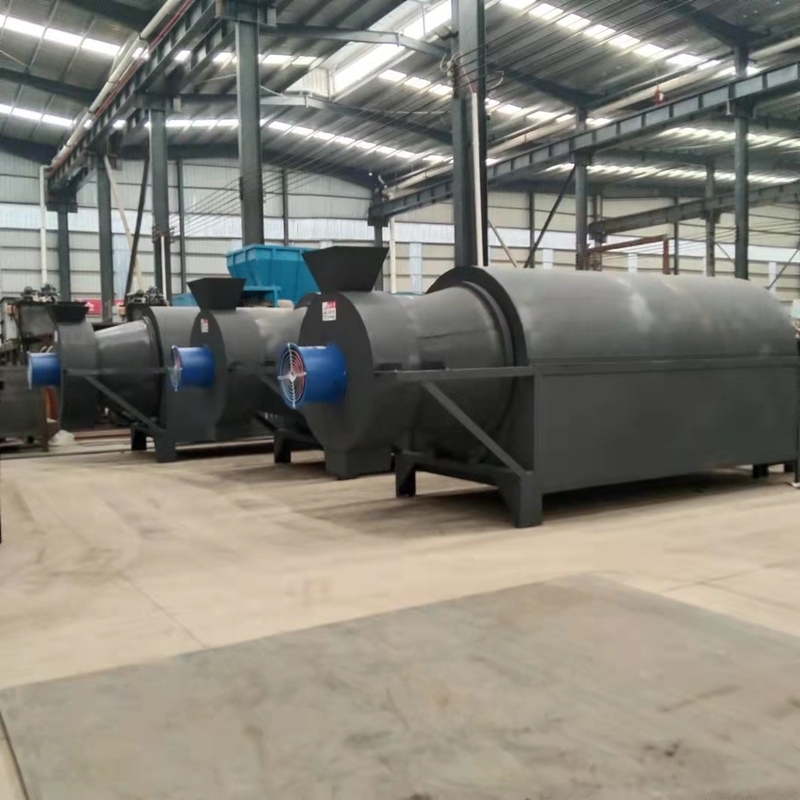

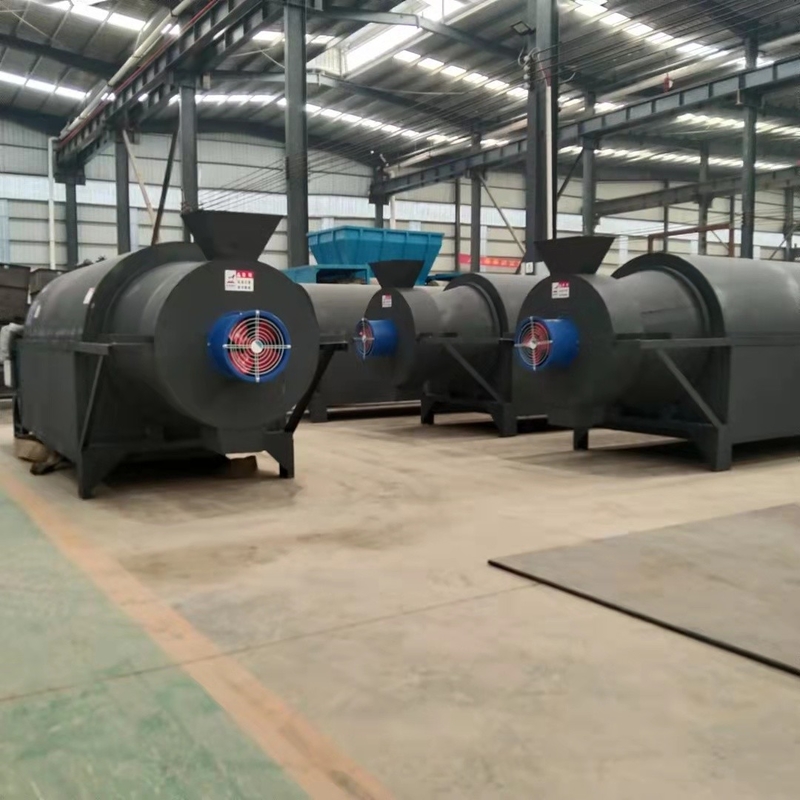

Mini Rotary Drum Frying Dryer Features:
1) High heat efficiency: Heat loss is mainly caused thermal radiation. Heat efficiency can be as high as 90%.
2) Short drying time: The drying process only takes 10-15 seconds. So drum dryer can be used for drying heat sensitive material.
3) Uniform drying: Heat transfer direction and coefficient all over the drum surface are the same. And wet material can be evenly spread over the drum surface. Wet material can be uniformly dried.
4) Long life span: Rotary drum is electro-polished and well heat treated to increase the smoothness and hardness.
5) Flexible application: Drum surface temperature, rotating speed, wet material film thickness are all adjustable to satisfy materials with different moisture and drying time.
6) Compact size: The drying chamber is very compact in size. Only need small installation space.
7) Low operation cost: The whole machine is very simple and reliable. It can be used for many years with little repair and maintenance.
8) Highest hygienic standard: Indirect heating and electro-polished drum surface can assure highest hygienic working condition
Mini Rotary Frying Dryer Technical Details:
Electric heating dryer parameters | |||||||
Dimensions (including fan) | Output (KG) | Drum size (including bell mouth) | Power (KW) | Heating power (KW) | Dehumidifying fan (W) | Chain (root) | Reducer |
3000*1000*1450mm | 200 | 800*1800*3mm | 1.5 | 30 | 370 | 12 | / |
3800*1000*1450mm | 300 | 800*2600*3mm | 2.2 | 30-40 | 370 | 18 | ZQ200 |
4200*1200*1600mm | 500 | 1000*2800*3mm | 3.0 | 40-50 | 370 | 24 | ZQ250 |
4800*1500*1700mm | 1000 | 1200*3400*4mm | 4.0 | 60-80 | 550 | 32 | ZQ250 |
6000*1800*2100mm | 2000 | 1500*4400*5mm | 7.5 | 80-100 | 750 | 50 | ZQ350 |
7800*1800*2100mm | 3000 | 1500*6000*5mm | 11.0 | 120-150 | 1100 | 75 | ZQ350 |
9300*2300*2500mm | 5000 | 1800*6600*8mm | 15.0 | 180-200 | 1500 | 120 | ZQ500 |
Mini Rotary Frying Dryer Application:
