Place of Origin:
China
Brand Name:
Hengyang
Certification:
ISO9001
Model Number:
HC-172

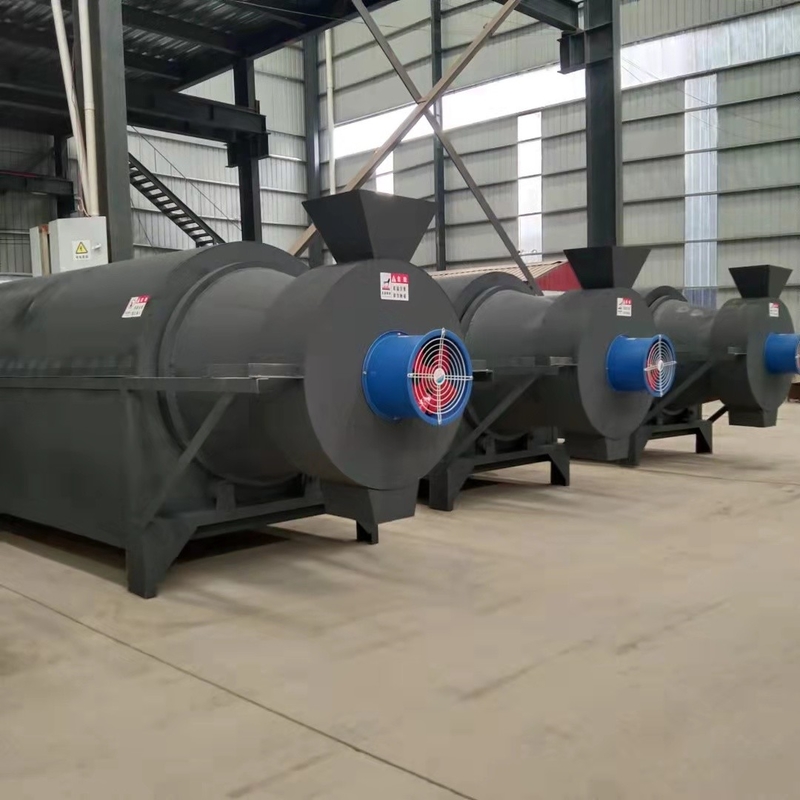

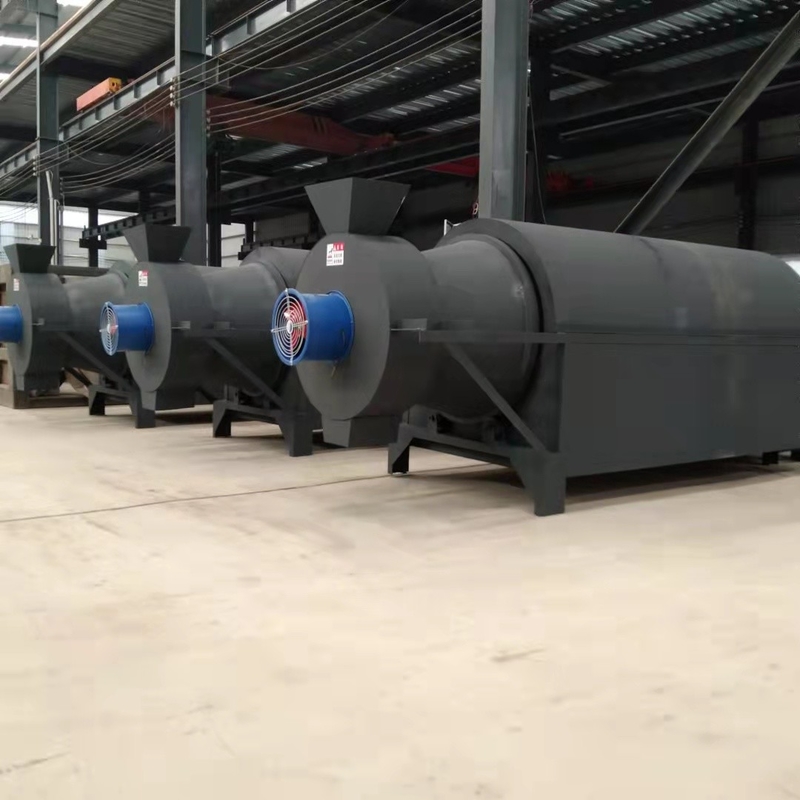

Mini Rotary Drying Dryer including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure, the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.
Electric Heating Rotary Frying Dryer Application:
River sand, sludge, coal mud, sawdust, sand, bean curd residue, chicken manure, organic fertilizer, feed, Chinese medicine residue, wine grains, vinegar grains and other fields material drying;
Mini Rotary Frying Dryer work principle:
The chicken manure dryer is mainly composed of heating source, conveying machine, feeding machine, rotary drum, material crushing device, discharging machine, induced draft fan, unloading device and distribution cabinet.After the dehydrated wet material is added into the dryer, under the rotation of the uniformly distributed plate reader in the drum, the material is evenly dispersed in the dryer and in full touch with the hot air, which accelerates the drying heat and mass transfer.In the drying process, the material plate and hot air quality action with a tilt , to another section of the dryer star unloading valve discharge finished products
Mini Rotary Frying Dryer Technical Details:
| Electric heating dryer parameters | |||||||
| Dimensions (including fan) | Output (KG) | Drum size (including bell mouth) | Power (KW) | Heating power (KW) | Dehumidifying fan (W) | Chain (root) | Reducer |
| 3000*1000*1450mm | 200 | 800*1800*3mm | 1.5 | 30 | 370 | 12 | / |
| 3800*1000*1450mm | 300 | 800*2600*3mm | 2.2 | 30-40 | 370 | 18 | ZQ200 |
| 4200*1200*1600mm | 500 | 1000*2800*3mm | 3.0 | 40-50 | 370 | 24 | ZQ250 |
| 4800*1500*1700mm | 1000 | 1200*3400*4mm | 4.0 | 60-80 | 550 | 32 | ZQ250 |
| 6000*1800*2100mm | 2000 | 1500*4400*5mm | 7.5 | 80-100 | 750 | 50 | ZQ350 |
| 7800*1800*2100mm | 3000 | 1500*6000*5mm | 11.0 | 120-150 | 1100 | 75 | ZQ350 |
| 9300*2300*2500mm | 5000 | 1800*6600*8mm | 15.0 | 180-200 | 1500 | 120 | ZQ500 |
Mini Rotary Frying Dryer Main characteristics
1, production process: the machine will handle moisture 65% fresh chicken manure to moisture 13% or less of pure chicken manure organic fertilizer after high temperature drying, sterilization, decomposition and other processes dried .
2, drying finished products: the organic fertilizer has a variety of nutrients necessary for crops.According to the test of the scientific research department, the nitrogen content of this fertilizer is 2.6% and the phosphorus content is 3.5%, and the potassium content is 2.5%. The crude protein content is 16-25% and the organic matter content is 45%.it Is pollution-free green food planting and the best choice of fertilizer, can also be used to feed fish, dirty pig and so on.
3, drum drying mechanization is with high production capacity degree,and can do continuous operation.
4, good structure, simple, material through the cylinder resistance smooth operation, easy to operate.
5, less fault, low maintenance cost, low power consumption.
6. Wide application range and good drying uniformity.
7, At the same time at dry can also achieve the purpose of sterilization and deodorization.
